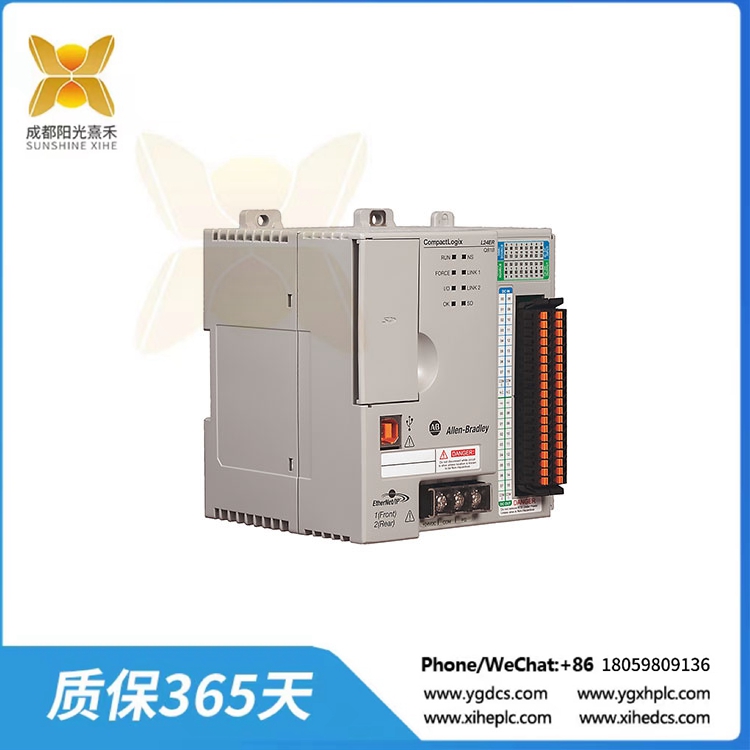

1769-L24ERQB1B CompactLogix 5370 L2封裝控制器

Allen-Bradley 1769-L24ER-QB1B是一款CompactLogix 5370 L2封裝控制器，帶有32個I/O通道和2個以太網通信端口。這些I/O通道由16(16)個直流輸入通道和16(16)個直流輸出通道組成。對于輸入通道，它在24伏直流標稱電壓下工作，工作范圍為10至28.8 VDC。
1769-L24ER-QB1B電流輸出在5伏直流時為1.54 A，在24伏直流時為0.95 A。在關斷狀態下，最大電流為1.5 mA，最大直流電壓為5伏。其導通電流為每通道24伏直流時2ma和每通道24伏直流時5ma，分別為最小和最大電流。該控制器的輸出通道具有24伏直流標稱電壓和20.4至26.4伏直流工作電壓范圍。當處于導通狀態時，它在1 a時的最大電壓降為1伏直流，在每通道24伏直流時的最大電流為0.5毫安。1769-L24ER-QB1B每個點的電流在40攝氏度時為0.83 A，在60攝氏度時為0.5 A，而每個模塊的電流在40攝氏度時為6.64 A，在60攝氏度時為4 A。
1769-L24ER-QB1B控制器的電源為24伏直流，隔離供電。它帶有0.75 MB的內存，您可以使用標準的1gb標準安全數字(SD)存儲卡或可選的2gb存儲卡進行擴展。該控制器使用USB和雙端口以太網DLR接口，并配有內置狀態led。整個1769-L24ER-QB1B控制器尺寸為4.53 x 4.13 x 4.65英寸。

Allen-Bradley產品的零件號為1769- l24er – qb1b，是一款可編程邏輯控制器(PLC)，屬于1769 CompactLogix產品系列。該控制器是一種封裝式控制器，集成了各種通信端口、集成存儲器、電源和輸入輸出通道等組件。

該封裝控制器具有兩(2)個以太網通信端口，支持設備級環(DLR)或環拓撲。該接口最多可連接8個以太網節點。它還有一個嵌入式電源，在24VDC標稱輸入電壓下工作，為控制器組件供電。它還具有十六(16)個離散24VDC匯/源輸入，十六(16)個24VDC源輸出。集成內存為768kb，可以通過使用具有1gb可用內存(隨控制器發貨)的1784-SD1卡或具有2gb可用內存的1784-SD2卡來增加非易失性內存。該控制器的其他通信接口有:(1)串口和1 (1)USB接口。

多達四(4)1769緊湊型I/O模塊可以安裝與此控制器。它是中小型應用的理想選擇。最多可創建和配置32個控制器任務，每個任務運行100個連續程序或任務。

RS232通信端口支持ASCII、DH485或DF1通信協議。該通道是一個完全隔離的通道，最大傳輸速度為38.4 kbps，以太網通信端口支持線性拓撲，最多接受8個節點。

1769-L24ERQB1B CompactLogix 5370 L2封裝控制器

The Allen-Bradley 1769-L24ER-QB1B is a CompactLogix 5370 L2 packaged controller that comes with Thirty-Two (32) I/O channels and Two (2) Ethernet communication ports. These I/O channels consists of up of Sixteen (16) DC input and Sixteen (16) DC output channels. For the input channels, it operates with nominal voltage of 24 Volt DC with operating range of 10 to 28.8 VDC.
The 1769-L24ER-QB1B current draws are 1.54 A at 5 Volts DC and 0.95 A at 24 Volts DC. At an off-state, it has a maximum current of 1.5 mA and a maximum voltage of 5 Volts DC. Its on-state currents are 2 mA at 24 Volts DC per channel and 5 mA at 24 Volts DC per channel, which are the minimum and maximum respectively. This controller’s s output channels have a nominal voltage of 24 Volts DC and an operating voltage range of 20.4 to 26.4 Volts DC. When in an on-state, it has a maximum voltage drop of 1 Volts DC at 1 A and a maximum current of 0.5 mA at 24 Volts DC per channel. The 1769-L24ER-QB1B current per point is 0.83 A at 40 degrees Celsius and 0.5 A at 60 degrees Celsius, while its current per module is 6.64 A at 40 degrees Celsius and 4 A at 60 degrees Celsius.
The power supply of the 1769-L24ER-QB1B controller is 24 Volts DC and is isolated. It comes with a 0.75 MB memory that you can expand using the standard 1 GB standard secure digital (SD) memory card or the optional 2 GB memory card. This controller uses a USB and DualPort Ethernet DLR interface and comes with built-in status LEDs. The entire 1769-L24ER-QB1B controller measures 4.53 x 4.13 x 4.65 inches.

The Allen-Bradley product with part number 1769-L24ER-QB1B is a Programmable Logic Controller (PLC) that belongs to the 1769 CompactLogix product family. This controller is a packaged controller, having integrated components such as variety of communication ports, integrated memory, power supply and Input and Output channels.

This packaged controller features Two (2) Ethernet communication ports, that supports Device Level Ring (DLR) or ring topology. Up to 8 Ethernet nodes may be connected to this port. It also has an embedded power supply that operates at 24VDC nominal input voltage to energize the controller assembly. It also has Sixteen (16) discrete 24VDC sink / source inputs, Sixteen (16) 24VDC source outputs. Integrated memory amounts to 768Kbytes which may be expanded by adding a Non-volatile memory through the use of 1784-SD1 card with 1 Gb of available memory (shipped with controller) or 1784-SD2 card with 2 GB of available memory. Other communication ports of this controller are (1) Serial port and One (1) USB port.

Up to Four (4) 1769 Compact I/O modules may be installed with this controller. It is ideal for use in small to medium applications. Up to 32 controller tasks may be created and configured with each task running 100 continuous programs or task.

The RS232 communication port supports ASCII, DH485 or DF1 communication protocol. This channel is a fully isolated channel that supports maximum transmission speed of 38.4 kbps while the Ethernet communication port supports linear topology and accepts a maximum of 8 nodes.
