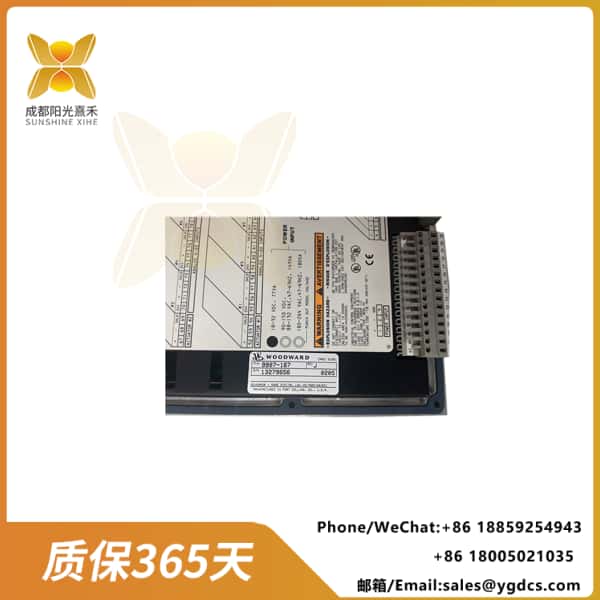

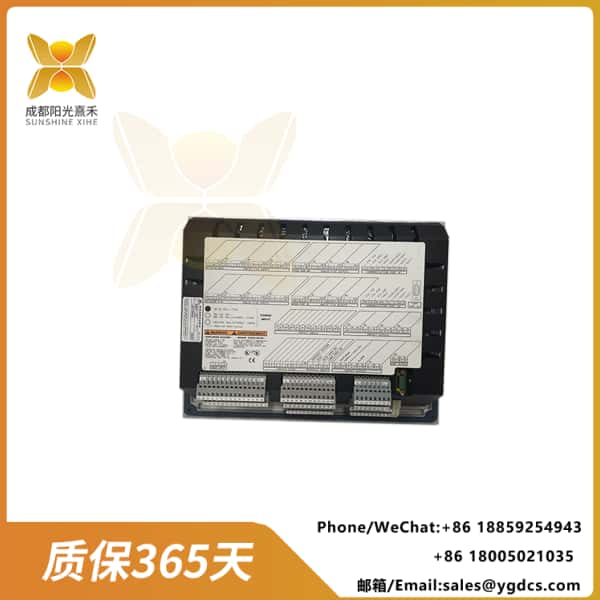

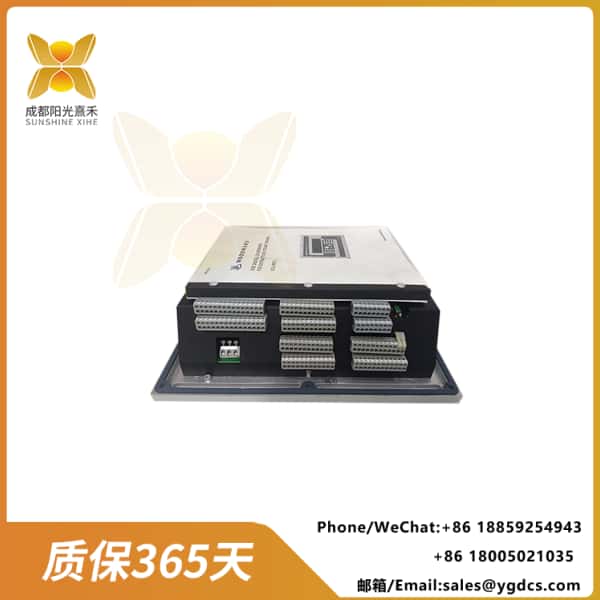

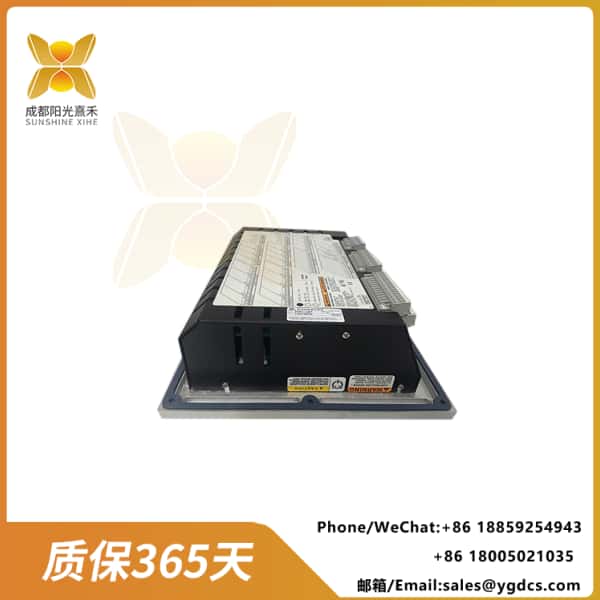

WOODWARD 9907-167 | 數字調速器

The WOODWARD 9907-167 digital speed controller is a digital speed controller produced by WOODWARD Company and belongs to its 505E series.
WOODWARD 9907-167 | 數字調速器9907-167 是伍德沃德（WOODWARD）公司生產的數字調速器，屬于其 505E 系列產品。

This equipment is mainly used in industrial automation and control systems, especially for speed control of equipment such as steam turbines, generators, pumps, fans, compressors and conveyors.
該設備主要用于工業自動化和控制系統中，特別是汽輪機、發電機、泵、風扇、壓縮機和傳送機等設備的速度控制。

It combines advanced control algorithms with a robust and durable design, capable of providing precise, reliable and efficient control performance.
它結合了先進的控制算法和堅固耐用的設計，能夠提供精確、可靠和高效的控制性能。

Product function
產品功能

The 9907-167 has multiple functions, including:
9907-167 具備多種功能，包括：

Speed control: It can precisely control the rotational speed of equipment such as steam turbines and generators, and is suitable for various industrial applications.
速度控制：能夠精確控制汽輪機、發電機等設備的轉速，適用于各種工業應用。

Pressure control: Supports extraction and/or intake pressure control, suitable for systems that require precise control of steam or gas flow.
壓力控制：支持抽氣和/或進氣壓力控制，適用于需要精確控制蒸汽或氣體流動的系統。

Multi-parameter control: In addition to speed and pressure, it can also control parameters such as load and flow rate.
多參數控制：除了速度和壓力，還可以控制負載、流量等參數。

Communication interface: Supports multiple communication protocols, such as RS-232, RS-485, Ethernet, etc., facilitating integration with other systems.
通信接口：支持多種通信協議，如 RS-232、RS-485、以太網等，便于與其他系統集成。

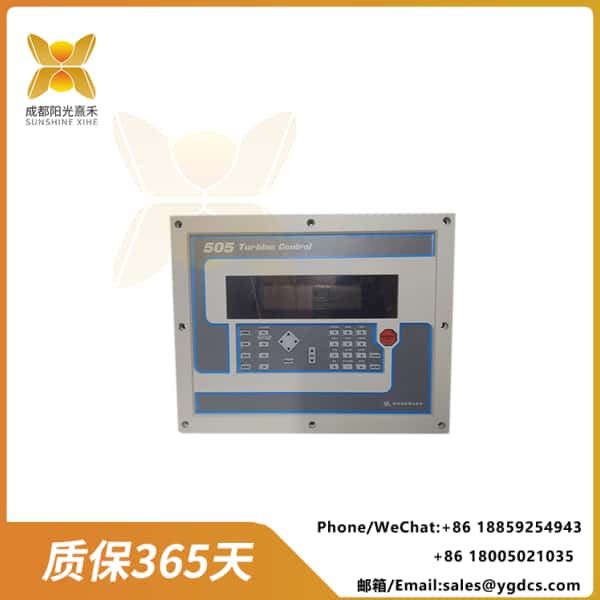

User interface: Equipped with 30 analog keys and a 2-line 12-character display, it is intuitive to operate, easy to configure and monitor.
用戶界面：配備 30 個模擬按鍵和 2 行 12 字符的顯示器，操作直觀，便于配置和監控。

Fault Diagnosis: It offers a wealth of diagnostic functions to help users identify and resolve system faults.
故障診斷：提供豐富的診斷功能，幫助用戶識別和解決系統故障。

Scalability: Supports modular design and can be expanded as needed, making it suitable for complex industrial control systems.
擴展性：支持模塊化設計，可根據需求進行擴展，適用于復雜的工業控制系統。

Technical parameters
技術參數

The following are the main technical parameters of 9907-167
以下是 9907-167 的主要技術參數：

Parameter description
參數 描述

Model 9907-167
型號 9907-167

The Woodward 505E series
系列 Woodward 505E 系列

Type digital speed controller
類型 數字調速器

Input voltage: 18-32 V DC
輸入電壓 18–32 V DC

Output voltage: 0-10 V DC
輸出電壓 0–10 V DC

The maximum output current is 20mA
輸出電流 最大 20mA

Operating temperature range: -40°C to +85°C
工作溫度范圍 -40°C 至 +85°C

Communication interfaces include RS-232, RS-485, Ethernet, USB, etc
通信接口 RS-232、RS-485、以太網、USB 等

Control accuracy ±0.25%
控制精度 ±0.25%

The rotational speed range is 0 to 3000 RPM
轉速范圍 0 至 3000 RPM

Protection class: NEMA 4
防護等級 NEMA 4

Dimensions: 14L x 11H x 4D (inches) or 110mm x 70mm x 25mm
尺寸 14L x 11H x 4D（英寸）或 110mm x 70mm x 25mm

Weight: 1.5kg
重量 1.5kg

Installation methods: Panel mounting or DIN rail mounting
安裝方式 面板安裝或 DIN 導軌安裝

Rated power: 1200 W
額定功率 1200 W

CPU: 32-bit microprocessor
CPU 32 位微處理器

8GB of memory
內存 8 GB

Application field
應用領域

9907-167 is widely applied in the following fields:
9907-167 廣泛應用于以下領域：

Industrial automation: It is used to control the operation of equipment such as pumps, fans, compressors and conveyors.
工業自動化：用于控制泵、風扇、壓縮機、傳送機等設備的運行。

Power plant: Used for the speed control of steam turbines to ensure power generation efficiency and stability.
發電廠：用于汽輪機的轉速控制，確保發電效率和穩定性。

Oil and gas industry: Control for gas turbines and compressors.
石油和天然氣行業：用于燃?xì)廨啓C(jī)和壓縮機的控制。

Water treatment: For the control of water pumps and filtration systems.
水處理：用于水泵和過濾系統的控制。

Paper mill: Used for controlling paper machines.
造紙廠：用于紙機的控制。

Ship propulsion: Used for the control of ship engines and turbines.
船舶推進：用于船舶發動機和渦輪機的控制。

Summary
總結

The WOODWARD 9907-167 is a high-performance and highly reliable digital speed regulator, suitable for a wide range of industrial applications, and performs particularly well in the control of steam turbines and generators.
WOODWARD 9907-167 是一款高性能、高可靠性的數字調速器，適用于多種工業應用，特別是在汽輪機和發電機的控制中表現出色。

It features high precision, multi-parameter control, rich communication interfaces and modular design, which can meet the control requirements in complex industrial environments.
它具有高精度、多參數控制、豐富的通信接口和模塊化設計，能夠滿足復雜工業環境下的控制需求。

In addition, this product also offers excellent after-sales service and warranty policies to ensure that users receive stable and efficient support during the usage process.
此外，該產品還提供良好的售后服務和保修政策，確保用戶在使用過程中獲得穩定和高效的支持。
