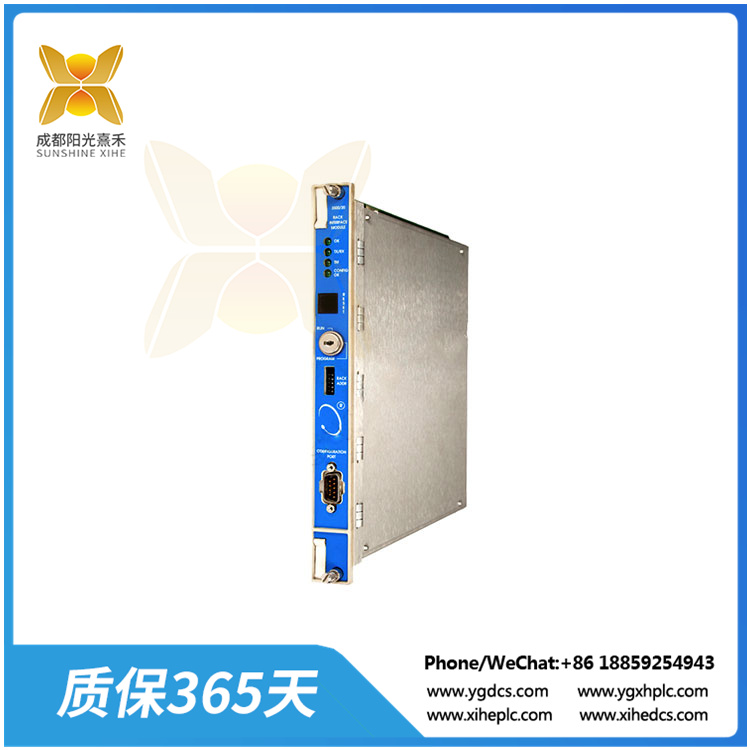

350020-01-02-00 機架接口模塊
機架接口模塊RIM (Rack Interface Module)是350020-01-02-00機架的主接口。它支持用于配置機架和檢索機械信息的專有協議。該im必須位于機柜的1號槽位(靠近電源)。
RIM支持兼容的Bently Nevada外部通信處理器，如TDXnet、TDIX和DDIX。雖然RIM提供了整個機架共同的某些功能，但RIM不是關鍵監控路徑的一部分，對整個監控系統的正常運行沒有影響。每個機架需要一個RIM。
對于TMR (Triple Modular redundancy)應用，350020-01-02-00系統需要TMR版本的RIM。除了所有標準的RIM功能外，TMR RIM還執行“監控通道比較”。350020-01-02-00 TMR配置使用監視器選項中指定的設置實現監視器投票。使用這種方法，TMR RIM不斷比較三(3)冗余監視器的輸出。如果TMR RIM檢測到來自其中一個監視器的信息不再在其他兩個監視器信息的配置百分比內，它將標記監視器出錯并在系統事件列表中放置一個事件。
350020-01-02-00 機架接口模塊
The Rack Interface Module (RIM) is the primary interface to the350020-01-02-00rack. It supports a proprietary protocol used toconfigure the rack and retrieve machinery information. TheRIM must be located in slot 1 of the rack (next to the powersupplies).
The RIM supports compatible Bently Nevada externalcommunications processors such as TDXnet, TDIX, and DDIX.? While the RIM provides certain functions common to theentire rack, the RIM is not part of the critical monitoring pathand has no effect on the proper, normal operation of theoverall monitoring system. One RIM is required per rack.
For Triple Modular Redundant (TMR) applications, the 350020-01-02-00ystem requires a TMR version of the RIM. In addition to all thestandard RIM functions, the TMR RIM also performs “monitorchannel comparison.”? The 350020-01-02-00 TMR configurationimplements monitor voting using the setup specified in themonitor options. Using this method, the TMR RIM continuallycompares the outputs from three (3) redundant monitors. Ifthe TMR RIM detects that the information from one of thosemonitors is no longer within a configured percentof theinformation of the other two monitors, it will flag that themonitor is in error and place an event in the System Event List.
