350025 125792-01 機械保護系統最多可以接收四個鍵相信號

支持多重配置:在正常配置中,3500機械保護系統最多可以接收四個鍵相信號。而在配對配置中,系統最多可以接收八個鍵相信號,從而支持更復雜的機械設備監測需求。

并行工作:當系統需要冗余(TMR)應用程序時,如三重模塊需要系統鍵相輸入,3500系統應使用兩個Keyphasor模塊。這兩個模塊可以并行工作,提供主要和輔助鍵相信號,從而增強了系統的可靠性和穩定性。

描述

350025 125792-01 機械保護系統最多可以接收四個鍵相信號

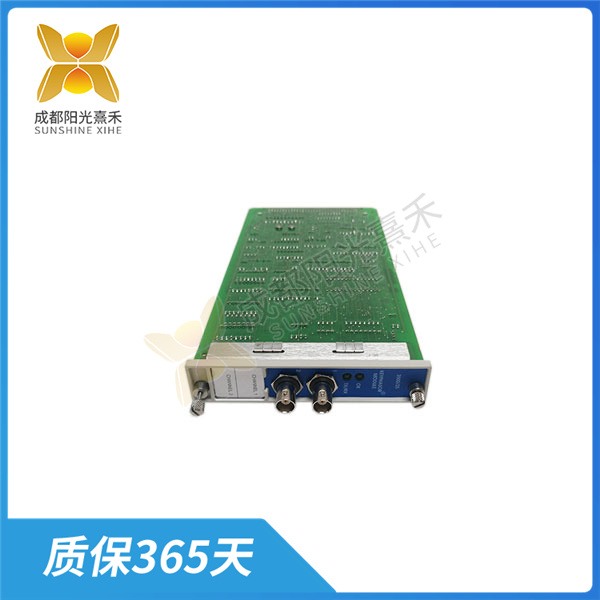

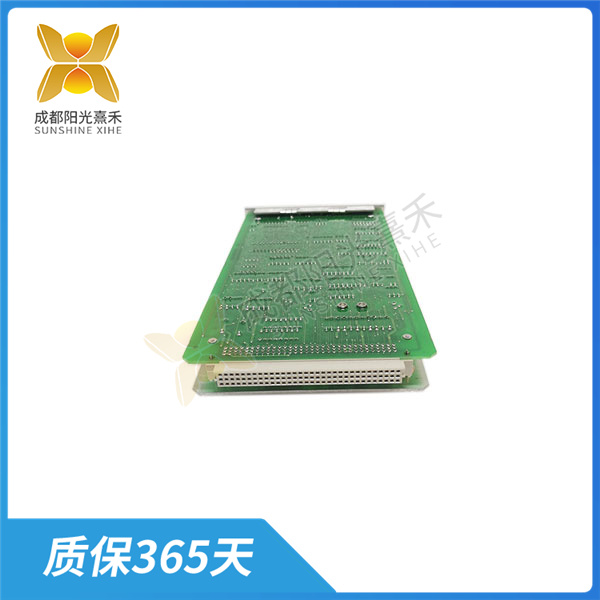

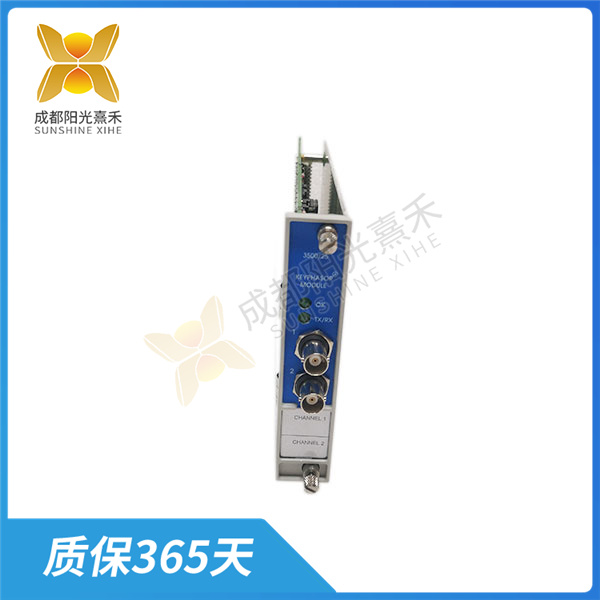

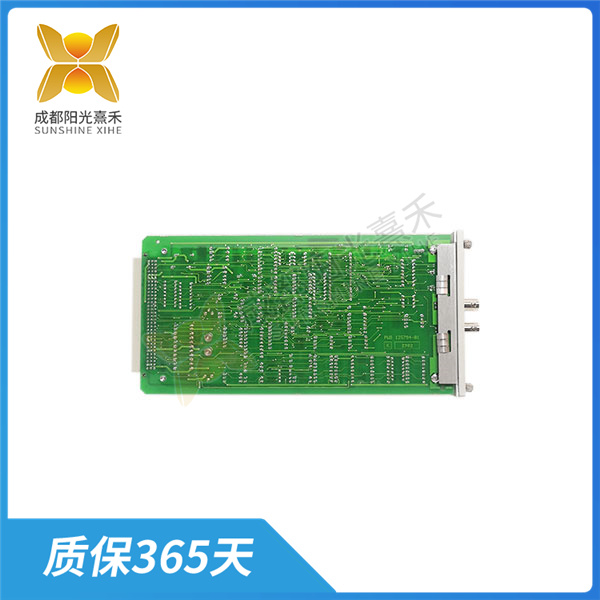

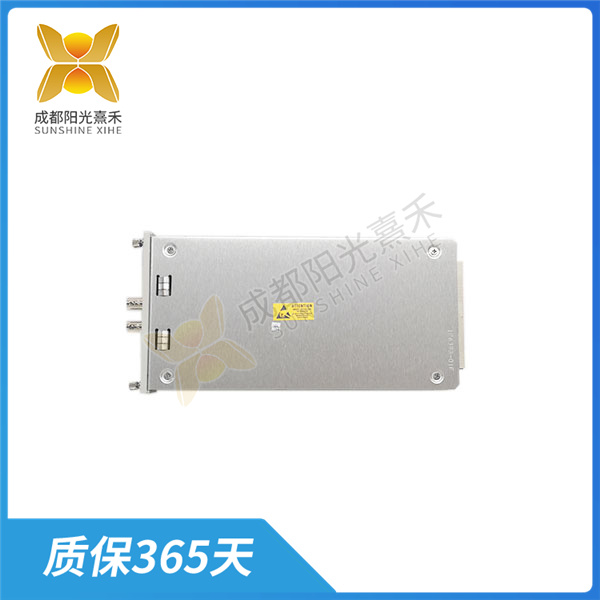

增強型鍵相模塊,如Bently 350025 125792-01,是一個半高、雙通道模塊,它的主要功能包括:

信號轉換:當軸上的鍵相標記與鍵相傳感器對齊時,模塊接收來自接近探頭或磁性拾音器的輸入信號,并將這些模擬信號轉換為數字鍵相信號。

提供鍵相信號:這些數字鍵相信號指示軸上的鍵相標記何時與鍵相傳感器重合,為3500框架中的監視器模塊提供關鍵的旋轉位置信息。

支持多重配置:在正常配置中,3500機械保護系統最多可以接收四個鍵相信號。而在配對配置中,系統最多可以接收八個鍵相信號,從而支持更復雜的機械設備監測需求。

并行工作:當系統需要冗余(TMR)應用程序時,如三重模塊需要系統鍵相輸入,3500系統應使用兩個Keyphasor模塊。這兩個模塊可以并行工作,提供主要和輔助鍵相信號,從而增強了系統的可靠性和穩定性。

時間測量:鍵相位信號是來自旋轉軸或齒輪的每轉一次或每轉多次的脈沖信號,提供的時間測量。這允許3500監測器模塊和外部故障診斷設備用來測量諸如1X幅值和相位等向量參數。

總的來說,350025 125792-01增強型鍵相模塊的主要功能是接收和處理來自傳感器的信號,將其轉換為數字鍵相信號,并提供給3500框架中的監視器模塊,以實現旋轉設備的精確監測和診斷。

350025 125792-01 機械保護系統最多可以接收四個鍵相信號

The enhanced key phase module, such as the Bently 350025 125792-01, is a semi-tall, dual-channel module whose main functions include:

Signal conversion: When the key phase marker on the axis is aligned with the key phase sensor, the module receives input signals from the proximity probe or magnetic pickup and converts these analog signals into digital key faith signals.

Provide key confidence signals: These numeric key confidence signals indicate when the key phase marker on the axis coincides with the key phase sensor, providing critical rotation position information for the monitor module in the 3500 frame.

Support for multiple configurations: In a normal configuration, the 3500 mechanical protection system can receive up to four key trust signals. In a paired configuration, the system can receive up to eight key trust signals to support more complex mechanical equipment monitoring requirements.

Work in parallel: When the system requires redundant (TMR) applications, such as a triple module requiring system key phase input, the 3500 system should use two Keyphasor modules. These two modules can work in parallel to provide primary and secondary key confidence signals, thus enhancing the reliability and stability of the system.

Time measurement: The key phase signal is a pulse signal from the rotating shaft or gear for each revolution or multiple revolutions, providing a time measurement. This allows 3500 monitor modules and external fault diagnosis equipment to be used to measure vector parameters such as 1X amplitude and phase.

Overall, the main function of the 350025 125792-01 Enhanced key phase module is to receive and process the signal from the sensor, convert it into a digital key trust signal, and feed it to the monitor module in the 3500 frame for accurate monitoring and diagnosis of rotating devices.
