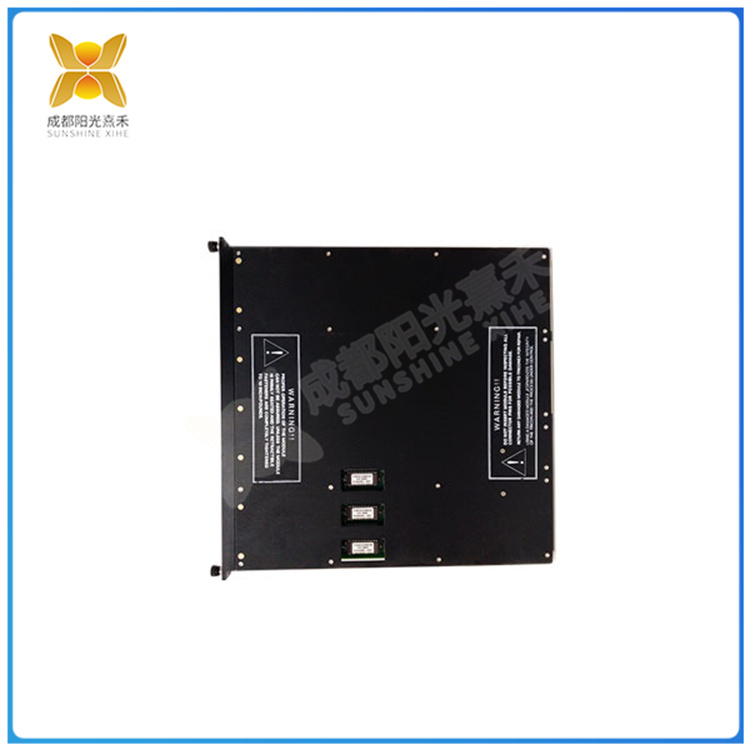

3503EN 可互操作的網絡將現場各控制器及儀表設備互連

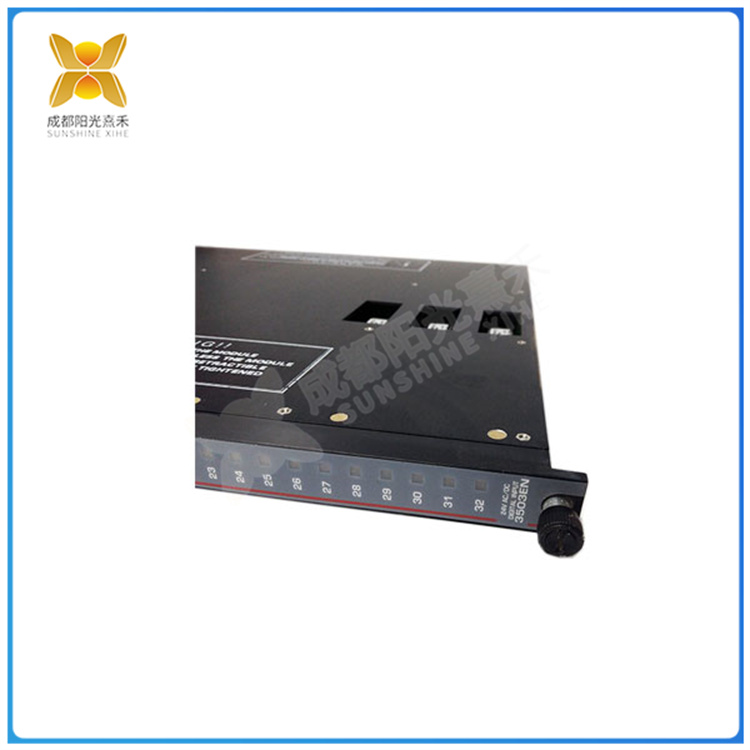

3503EN 可互操作的網絡將現場各控制器及儀表設備互連 - 圖片 2

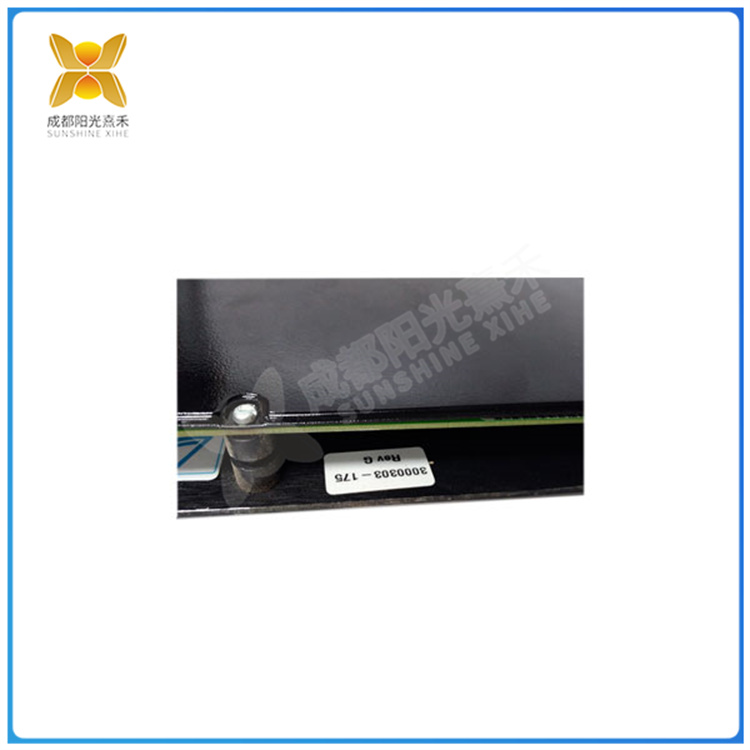

3503EN 可互操作的網絡將現場各控制器及儀表設備互連 - 圖片 3

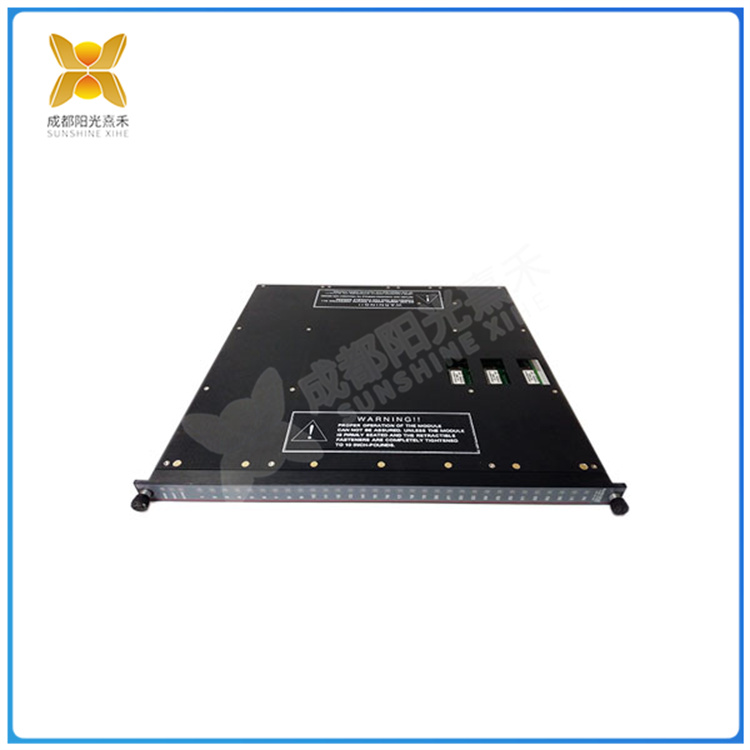

3503EN 可互操作的網絡將現場各控制器及儀表設備互連 - 圖片 4

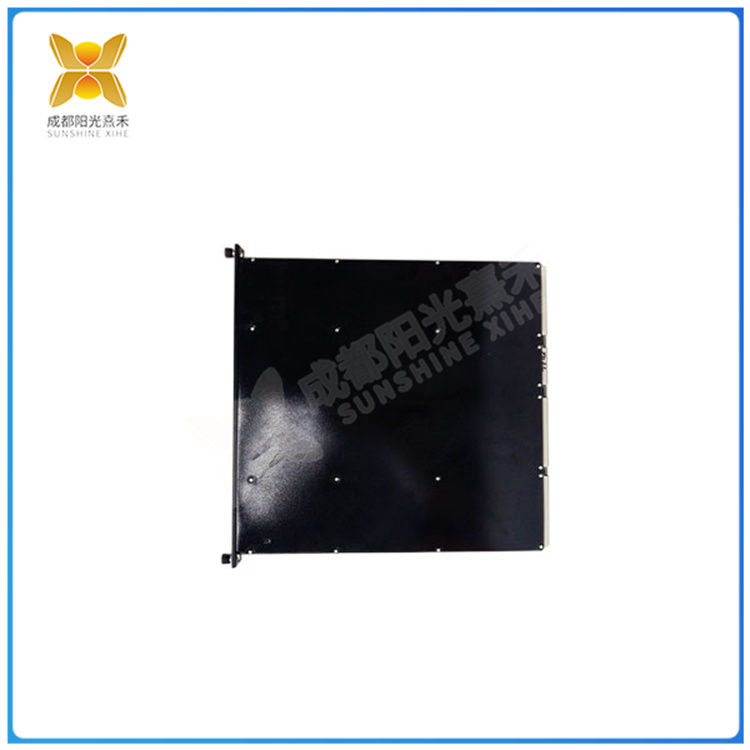

3503EN 可互操作的網絡將現場各控制器及儀表設備互連 - 圖片 5

3503EN 可互操作的網絡將現場各控制器及儀表設備互連

FCS正是順應以上潮流而誕生，它用現場總線這一開放的，具有可互操作的網絡將現場各控制器及儀表設備互連，構成現場總線控制系統，同時控制功能下放到現場，降低了安裝成本和維護費用。因此，F(xiàn)CS實質是一種開放的、具可互操作性的、分散的分布式控制系統，有望成為21世紀控制系統的主流產品。

描述

3503EN 可互操作的網絡將現場各控制器及儀表設備互連

3503EN模塊

FCS正是順應以上潮流而誕生，它用現場總線這一開放的，具有可互操作的網絡將現場各控制器及儀表設備互連，構成現場總線控制系統，同時控制功能下放到現場，降低了安裝成本和維護費用。因此，F(xiàn)CS實質是一種開放的、具可互操作性的、分散的分布式控制系統，有望成為21世紀控制系統的主流產品。

現場總線及現場總線控制系統

現場總線的概念

現場總線是將自動化底層的現場控制器和現場智能儀表設備互連的實時控制通訊網絡，遵循ISO的OSI開放系統互連參考模型的全部或部分通訊協議。FCS則是用開放的現場總線控制通訊網絡將自動化底層的現場控制器和現場智能儀表設備互連的實時網絡控制系統

現場總線與局域網的區別

按功能比較，現場總線連接自動化底層的現場控制器和現場智能儀表設備，網線上傳輸?shù)氖切∨繑?shù)據信息，如檢測信息、狀態信息、控制信息等，傳輸速率低，但實時性高。簡而言之，現場總線是一種實時控制網絡。局域網用于連接局域區域的各臺計算機，網線上傳輸?shù)氖谴笈康臄?shù)字信息，如文本、聲音、圖像等，傳輸速率高，但不要求實時性。從這個意義而言，局域網是一種高速信息網絡。

按實現方式比較現場總線可采用各種通訊介質，如雙絞線、電力線、光纖、無線、紅外線等，實現成本低。局域網需要電纜，如同軸電纜、光纖等，實現成本高。

3503EN 可互操作的網絡將現場各控制器及儀表設備互連

3503EN module
FCS is born in line with the above trend, it uses the fieldbus this open, with interoperable network to interconnect the field controller and instrument equipment, constitute the fieldbus control system, while the control function is placed on the site, reducing the installation cost and maintenance costs. Therefore, the essence of FCS is an open, interoperable and decentralized distributed control system, which is expected to become the mainstream product of control systems in the 21st century.
Fieldbus and fieldbus control system
The concept of fieldbus
Fieldbus is a real-time control communication network that interconnects the automation underlying field controller and field intelligent instrumentation devices, following all or part of the communication protocol of ISO’s OSI Open Systems Interconnection reference model. FCS is a real-time network control system that uses an open fieldbus control communication network to connect the automation base field controller and field intelligent instrument equipment
The difference between fieldbus and LAN
According to the function comparison, the fieldbus connects the field controller and the field intelligent instrument equipment at the bottom of the automation, and the data information transmitted on the network cable is small batches of data information, such as detection information, status information, control information, etc., with low transmission rate but high real-time performance. In short, fieldbus is a real-time control network. LAN is used to connect each computer in the local area, the network cable is transmitted on a large number of digital information, such as text, sound, images, etc., the transmission rate is high, but it does not require real-time. In this sense, local area network is a kind of high-speed information network.
According to the implementation method, fieldbus can use various communication media, such as twisted pair, power line, optical fiber, wireless, infrared, etc., to achieve low cost. Local area networks require cables, such as coaxial cables, optical fibers, etc., and the implementation cost is high.
