8273-1013 控制器
8273-1013執行小型汽輪機包的核心控制和保護功能。應用軟件是現場可配置的，允許對其進行配置和修改，以滿足現場特定的要求。Modbus通信也允許與包裝PLC或工廠DCS輕松接口。
8273-1013控制器向后兼容現有的2301D-ST控制器，因?yàn)樗哂邢嗤男问?，適合和功能。新的控制器確保了一個經過驗證的，具有增強功能的多功能產品的持續可用性:
-接受兩個冗余的MPU速度信號輸入
-獨立的RS-232和RS-422串行端口，都有9針連接器
-用于電源和RS-422通信的附加狀態led
-故障數據記錄功能，在停機，峰值速度和負載檢測的情況下，每10毫秒收集16秒數據
-低電流PWM輸出驅動伍德沃德的l系列，f系列，p系列和PISC執行器
-新的接線端子可容納額外的I/O，大部分接線端子位于與2301D-ST型號相同的位置。
-主要合規認證
8273-1013有四種工作模式:
-速度控制
-具有多種動態靈活性。將在泵或壓縮機工作。通過可配置的模擬輸入具有遠程4-20 mA速度參考能力。
—同步負載分擔
-兼容大多數現有的模擬負載共享速度控制系統?，F(xiàn)在具有軟裝卸能力。
-降低基礎荷載
-可調負載控制使用分立的上升和下降接觸
-等時基本負載
-針對公用總線提供恒定負載水平操作。負載設置可以固定或改變使用離散上升和下降輸入或遠程4-20 mA輸入。

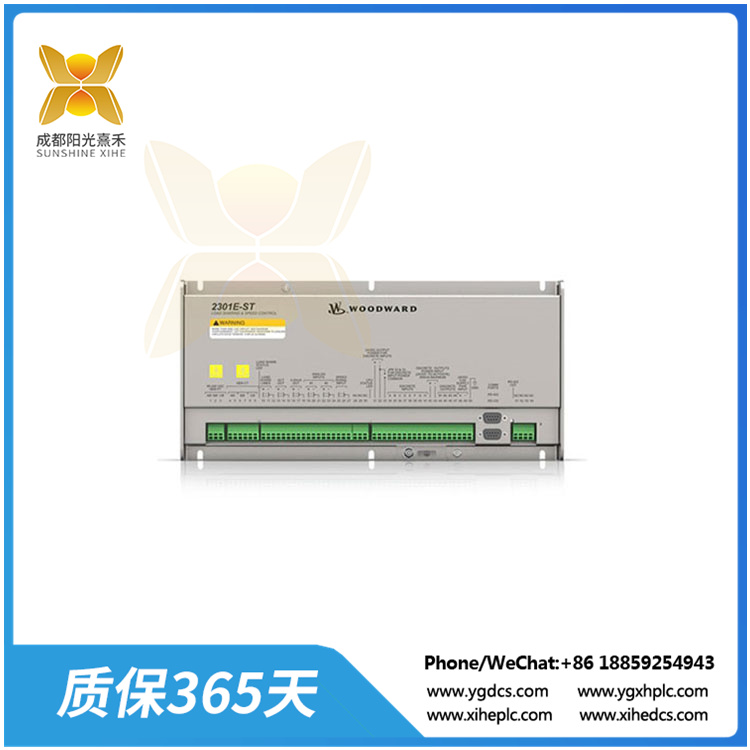

8273-1013 控制器
The 8273-1013 performs the core control and protection functions of a small steam turbine package. The application software is field configurable, allowing it to be configured and modified to meet site-specific requirements. Modbus communications also allow easy interface with a package PLC or plant DCS.
The 8273-1013 controller is backward compatible with existing 2301D-ST controllers since it has the same form, fit, and function. The new controller insures the ongoing availability of a proven, versatile product with enhanced features:
– Accepts two redundant MPU speed signal inputs
– Separate RS-232 and RS-422 serial ports, both with 9-pin connectors
– Additional status LEDs for power and RS-422 communications
– Fault data logging capability with 16 seconds of data collected every 10 milliseconds on the event of a shutdown, peak speed and load detection
– Low-current PWM output for driving Woodward’s L-Series, F-Series, P-Series and PISC actuators
– New terminal blocks accommodate additional I/O, with a majority of the terminals located in the same position as the 2301D-ST models.
– Major compliance certifications
The 8273-1013 has four operating modes:
– Speed Control
– Has multiple dynamics flexibility. Will work on pumps or compressors. Has capability for remote 4–20 mA speed reference through a configurable analog input.
– Isochronous Load Sharing
– Is compatible with most existing analog load sharing speed control systems. Now with soft load and unload capability.
– Droop Base Load
– Adjustable load control using discrete raise and lower contact
– Isochronous Base Load
– Provides constant load level operation against a utility bus. The load setting may be fixed orchanged using discrete raise and lower inputs or a remote 4–20 mA input.
