描述

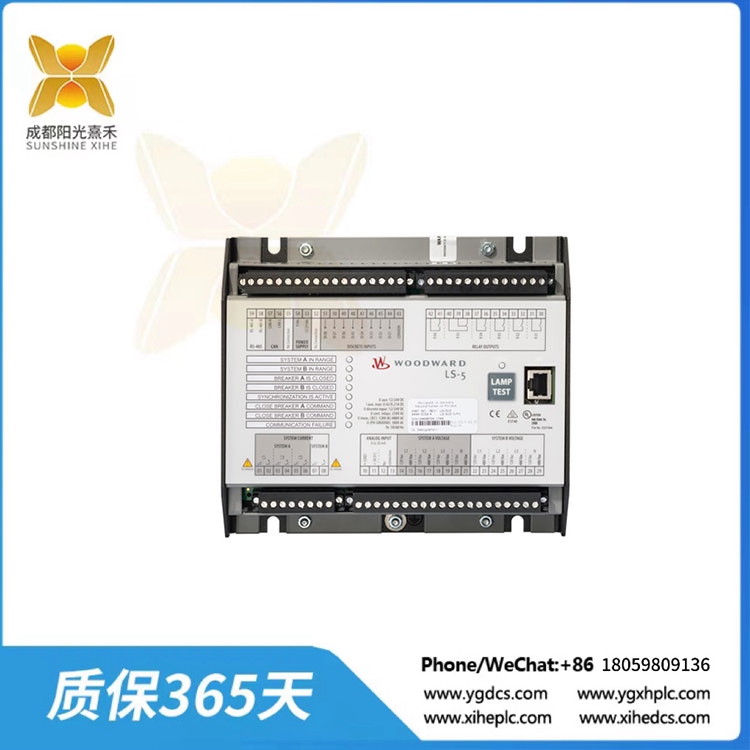

8440-2153 LS-5 系列繼電器

布線工作減少到最低限度，因?yàn)樵谒蠰S-5和easYgen控制器之間只需要一個CAN總線連接來傳輸交流測量信號，I/O狀態，標志等。

LS-5×2繼電器簡化了負載總線由主斷路器(MCB)和發電機組斷路器(GGB)提供服務的應用。它可以檢測電壓和電流，量化同步參數，并通過CAN總線將信號傳輸?shù)絜asYgen-3400XT/3500XT發電機組控制器。兩個斷路器控制能力以及電源解耦和保護功能使其成為外部監控指導下轉換開關控制的完美選擇。LS-5×2是軟件可選的，可以作為LS-5×1應用，從而促進OEM開關柜制造商，發電機包裝商和系統集成商的硬件標準化。

LS-5×2系列有兩種不同的安裝風格。LS-512配有鋁粉涂層外殼，不帶顯示屏，設計為后面板安裝。

特性
多達16個LS-5×2繼電器可以與多達32個easYgen-3400XT/3500XT在一個網絡中操作
遠程選擇斷路器轉換模式:開，閉(短并聯<100ms)，互換，無限并聯
軟件可選擇作為一個斷路器控制功能
內部功率計算，可選擇從外部換能器饋送有源功率
相位匹配或滑移頻率同步與電壓匹配
全保護包(包括df/dt (ROCOF)，相移，和市電電壓增加保護，根據新的德國電網規范)
分段控制的負荷分擔
事件日志，最多300個條目
LS-5單元和連接的easYgen-3400XT/3500XT控件之間的自動日期和時間同步
LS-5“獨立”模式?jīng)]有easYgen-3400XT/3500XT是可能的
預配置的應用模式，簡化了復雜的多斷路器應用的配置過程
自動和手動模式
全遠程控制通過CAN或RS-485接口
斷路器開/關故障檢測
市電去耦“測試”模式
鎖定鍵盤功能
4個可自由配置的報警器
8在LS-512后面板上可自由配置LED
多語言能力:英語、德語、西班牙語、法語、意大利語、葡萄牙語、日語、中文、俄語、土耳其語、波蘭語

8440-2153 LS-5 系列繼電器

Wiring efforts are reduced to a minimum, since only one CAN bus connection is required between all LS-5 and easYgen controllers to transmit AC measurement signals, I/O states, flags etc.

The LS-5×2 relays simplify the applications where load bus is served by a mains circuit breaker (MCB) and a generator group breaker (GGB). It senses voltage and current, quantifies the synchronization parameters and transmits the signals via CAN bus to the easYgen-3400XT/3500XT genset controllers. The two breakers control capability along with mains decoupling and protection features make it a perfect choice for transfer switch control under guidance of an external supervisory control. The LS-5×2 is software selectable to be applied as an LS-5×1 thereby facilitating hardware standardization to OEM switchgear builders, generator packagers, and system integrators.

The LS-5×2 Series is available in two different mounting styles. An LS-512 with an aluminum powder coated housing without display is designed to be back panel mounted.

FEATURES
Up to 16 LS-5×2 relays can be operated in one network with up to 32 easYgen-3400XT/3500XT
Remotely selectable breaker transition modes: Open, Closed (short parallel <100ms), Interchange, Indefinite parallel
Software selectable to function as one breaker control
Internal power calculation with option to feed active power from external transducer
Phase match or slip frequency synchronization with voltage matching
Full protection package (including df/dt (ROCOF), phase shift, and mains voltage increasing protection according to new German grid code)
Segment control for the load sharing
Event Log with up to 300 entries
Automatic date and time synchronization between the LS-5 units and the connected easYgen-3400XT/3500XT controls
LS-5 “Stand alone” mode without the easYgen-3400XT/3500XT is possible
Preconfigured application modes that simplify the configuration process for complex multi-breaker applications
AUTOmatic and MANual mode
Full remote control via CAN or RS-485 interface
Breaker open/close failure detection
Mains decoupling “Test” mode
Lock keypad feature
4 freely configurable alarms
8 Freely configurable LED`s on the LS-512 back panel mountable device
Multilingual capability: English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish
