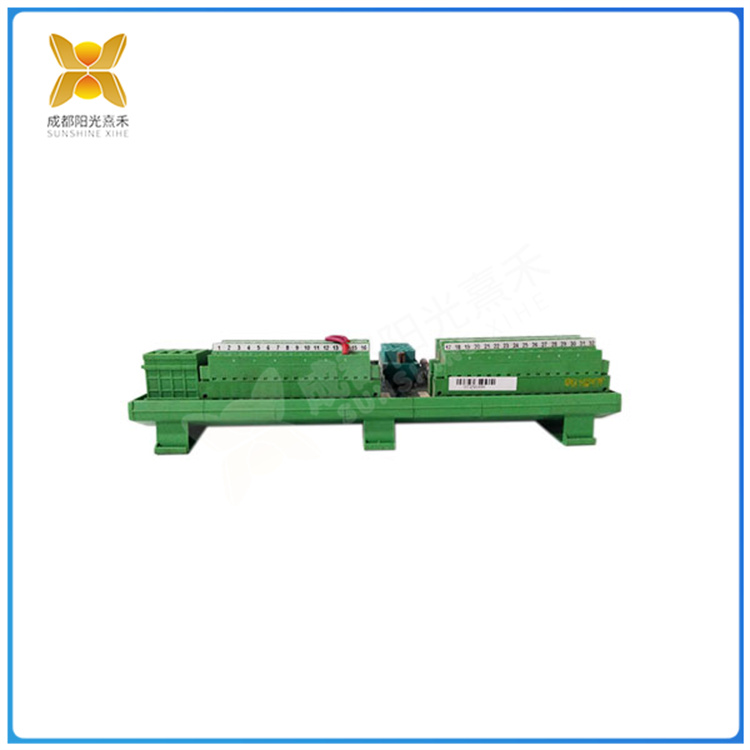

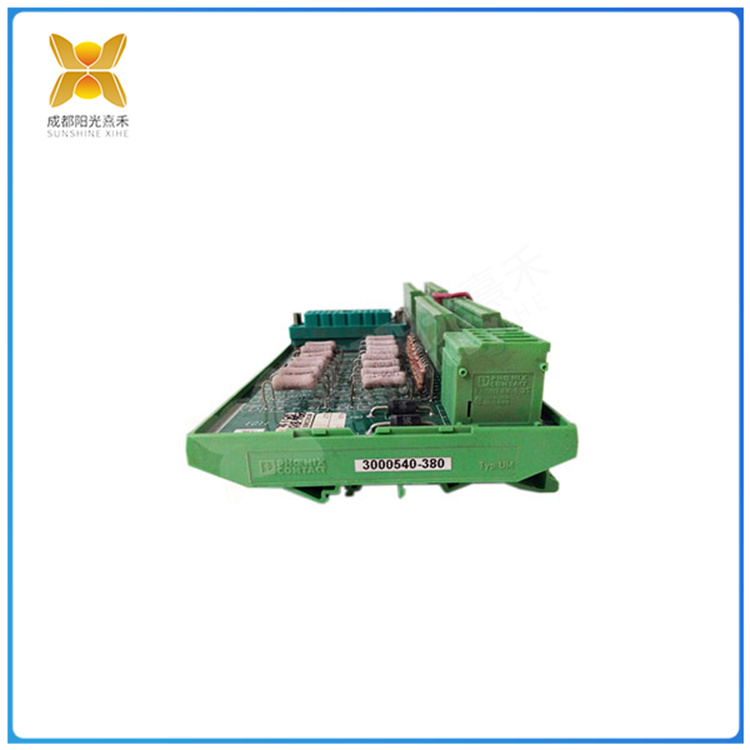

An external terminal panel (ETP) is an electrically passive printed circuit board (PCB) for field wiring that is easy to connect. Panel connectors, terminal blocks and optional components are mounted on the PCB and packaged in a DIN rail compatible plastic housing. A terminal panel and associated cable transfer the input signal directly from the field to the input module, or the output signal directly from the output module to the field wiring. This arrangement allows the I/O module wiring to be removed or replaced without disturbing the site. Standard terminal panels are best suited for remote wiring where on-site wiring is required for maximum flexibility, high density and simple maintenance. Standard terminal panels allow you to assemble field signals in a separate housing up to 99 feet (30 meters) from Tricon. The standard end panel consists of a PCB and all the necessary components, such as two chip terminals, resistors, fuses and fuse indicators – a compatible plastic housing mounted on a DIN rail. The housing snaps into the mounting rail in accordance with DIN 50 22. The compression terminals on the standard panel are designed for sizes 24 to 12 (0.3 mm to 2.1 mm) with a fuse indicator light to protect field wiring and field equipment. Standard end panels are pre-configured for specific applications.
High-performance digital input/output cards often have high speed, high precision, high reliability and other characteristics, can meet a variety of complex application needs.
Among them, some high-performance digital input/output cards are also programmable and can be customized according to the needs of the user. For example, some digital input/output cards support multiple input/output interfaces to meet the connection needs of different types of devices. At the same time, these cards also have powerful data processing capabilities, which can realize the rapid processing and transmission of large amounts of data.
When selecting a high-performance digital input/output card, you need to consider the requirements of actual application scenarios, including data transmission speed, accuracy, reliability, and interface types. At the same time, it is also necessary to consider factors such as the maintainability and scalability of the device to ensure that it can meet the needs of long-term use.
It should be noted that different brands and models of digital input/output cards may differ in performance and application, so you need to choose according to your specific needs. At the same time, it is also necessary to pay attention to maintenance and maintenance during use to ensure the stability and reliability of the equipment.
