描述

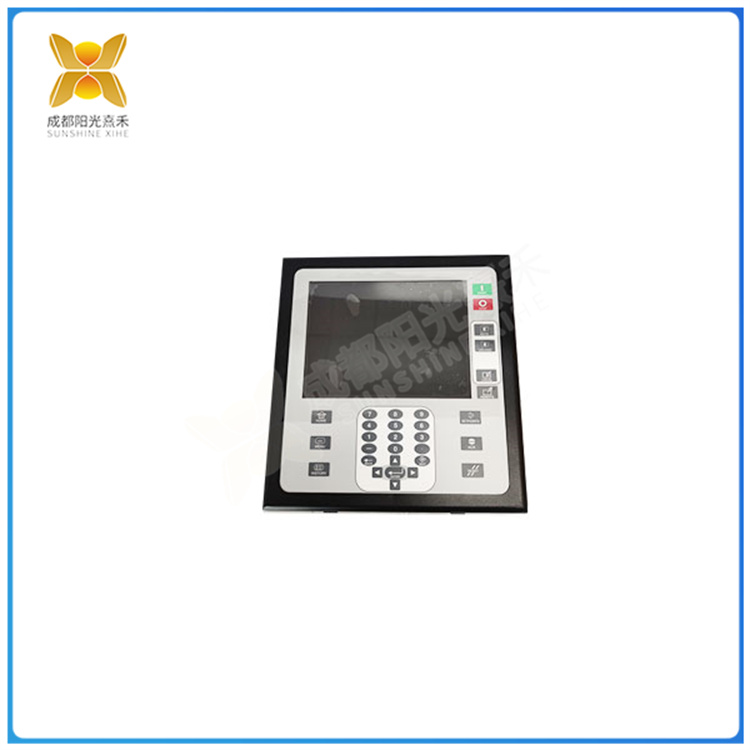

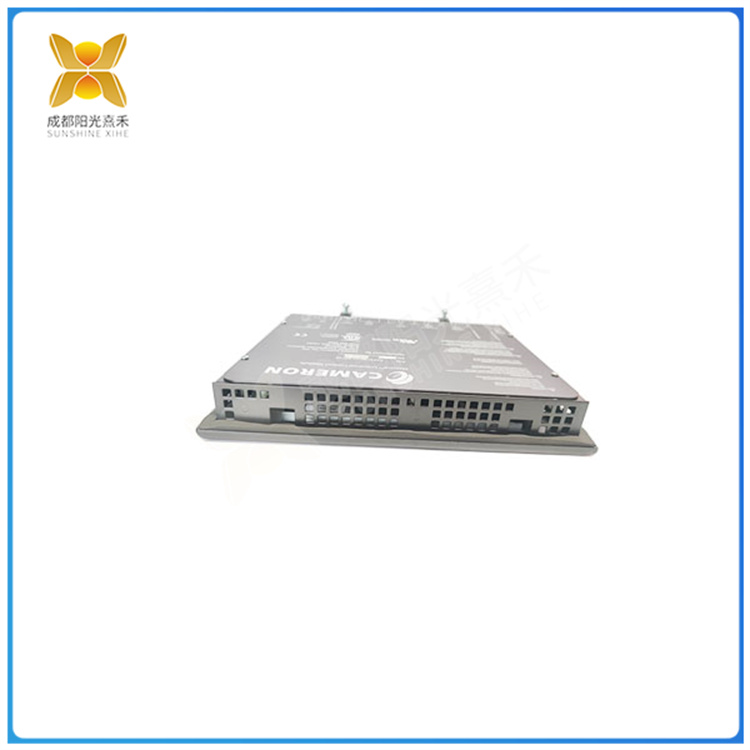

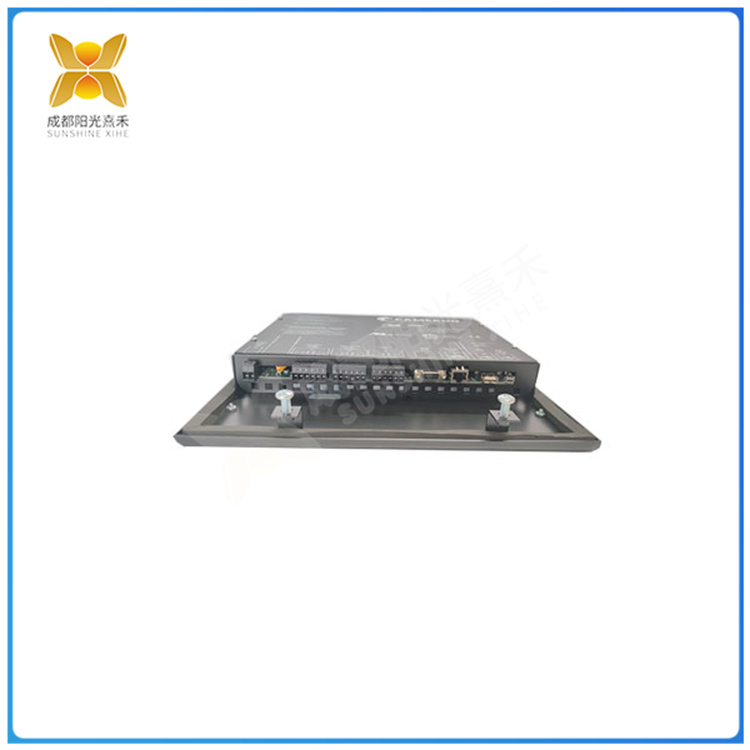

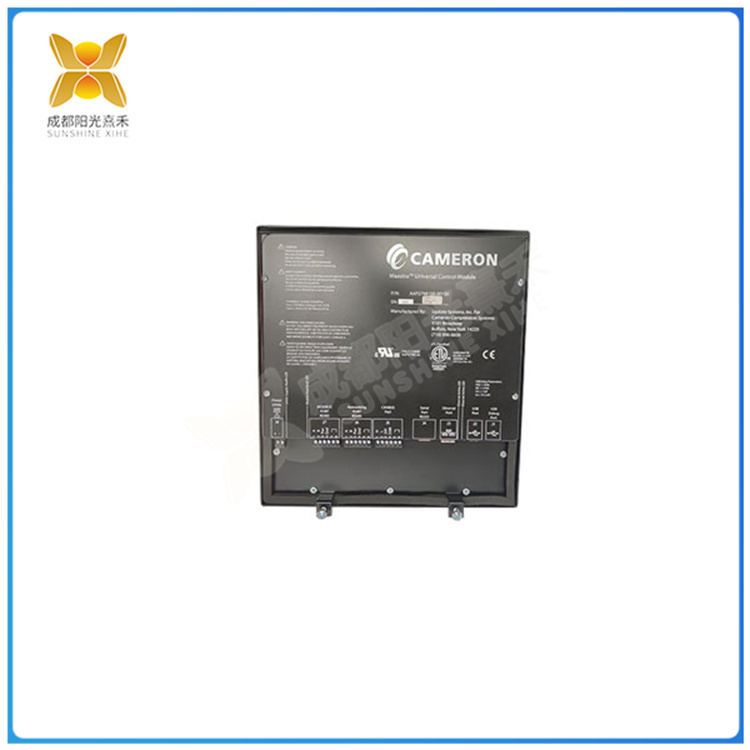

AAP3798102-00130 顯示壓縮機控制模塊便用通用接線板

AAP3798102-001 30通用顯示壓縮機控制模塊便用通用接線板或接線板將接線板安裝在控制外殼內，并將屏蔽電纜從接線板連接到模塊接線板端子上的每個輸入電路。Y將每根電纜的屏蔽連接到接線板旁邊的金面板。不要在模塊端連接屏蔽(在電纜模塊端切斷屏蔽并用熱縮管絕緣)。Y用屏蔽電纜將現場設備連接到端子板，僅在設備端接地屏蔽(在電纜的端子板端切斷屏蔽并用熱縮管絕緣)。此外,應盡可能縮短端子板和設備端的外露(屏蔽外部)引線的長度。直接方法Y將屏蔽電纜從現場設備(傳感器、電位計等)直接連接到模塊。Y將導體連接到模塊端子板上的適用螺釘上。將現場設備端的屏蔽接地，使最小數量的導體暴露在噪聲環境中。不要在模塊端連接屏蔽(切斷電纜模塊端的屏蔽并用熱縮管絕緣)。CAMERON AAP3798102-001 30TBQC不推薦用于模擬模塊由于電纜屏蔽要求，端子板快速連接(TBQC)

AAP3798102-00130 顯示壓縮機控制模塊便用通用接線板

Aap37998102-001 30 Universal display compressor control module Install the patch board in the control housing using a universal patch board or patch board, and connect the shielded cable from the patch board

Connect to each input circuit on the block terminal. Y Connect the shield of each cable to the gold panel next to the patch panel. Do not connect shielding at the module end (Cut shielding at the cable module end)

Insulated with heat shrink tubes). Y Connect the field device to the terminal board with a shielded cable, grounding the shield only at the device end (cut off the shield at the terminal board end of the cable and insulate it with a heat shrink tube). In addition, should

Shorten the length of exposed (shielded external) leads at the terminal board and device end as much as possible. Direct Method Y Connects the shielded cable directly from the field device (sensor, potentiometer, etc.) to the module. Y will guide

The body is connected to the applicable screws on the module terminal board. Ground the shielding at the end of the field device so that a minimum number of conductors are exposed to noise. Do not connect the shield at the end of the module (cut the cable die

Block end shielded and insulated with heat shrink tube). CAMERON AAP3798102-001 30TBQC Not recommended for analog modules Due to cable shielding requirements, terminal board Quick Connection (TBQC)

Components are not recommended for emulation modules.
