描述

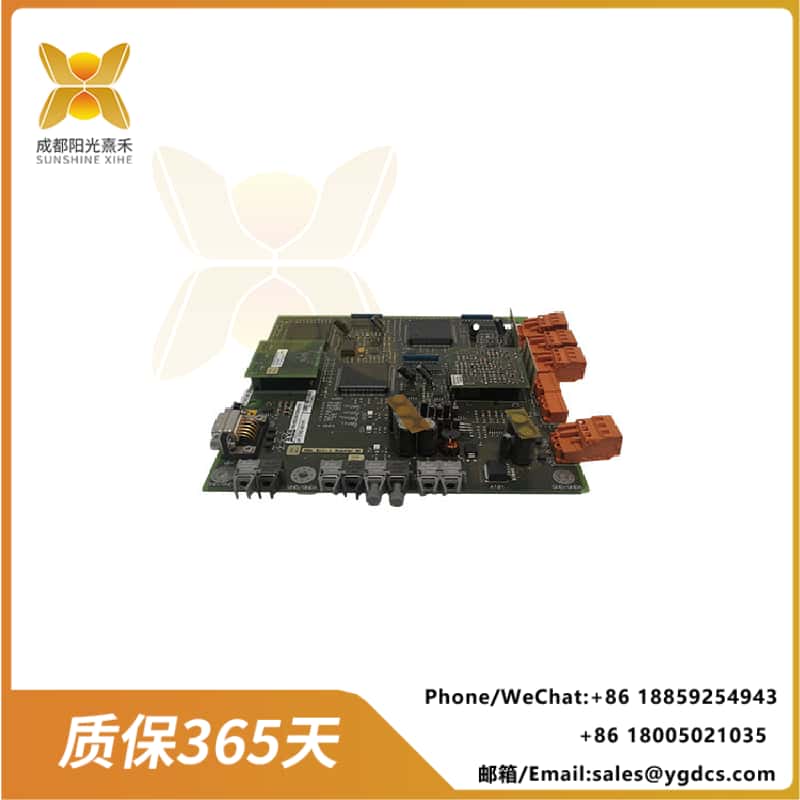

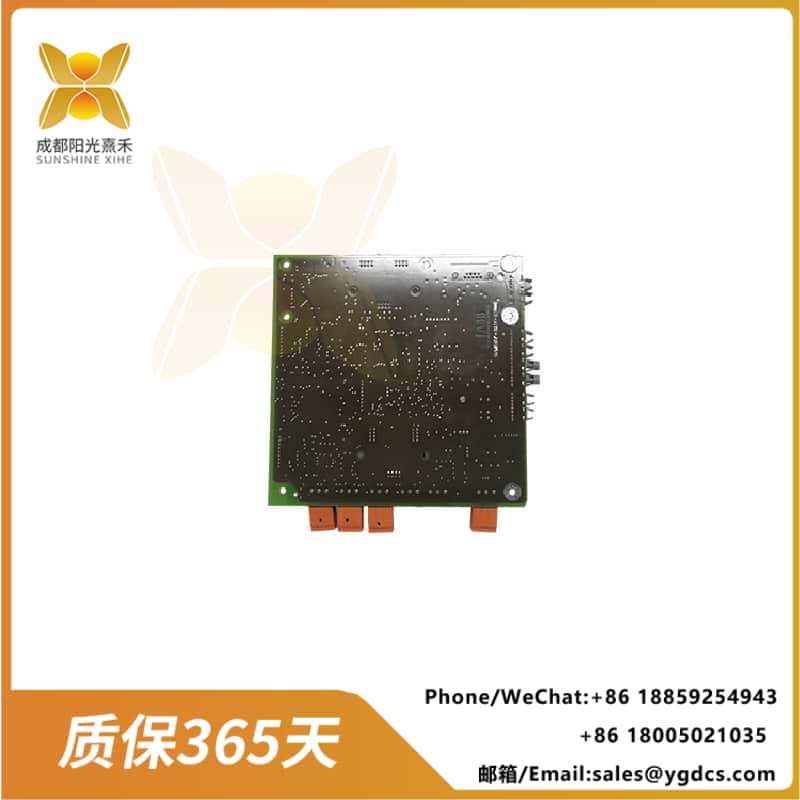

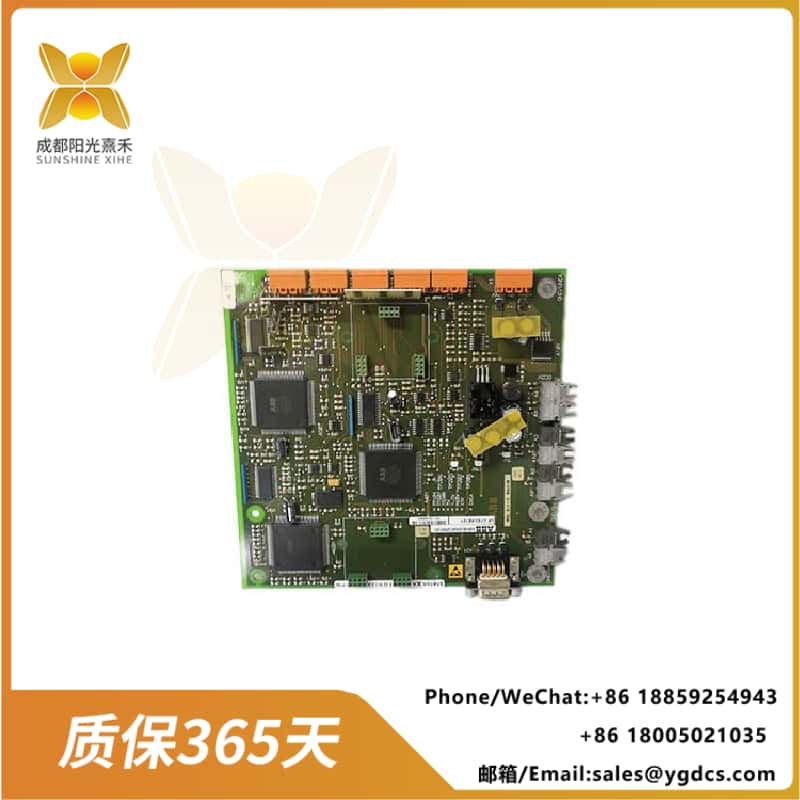

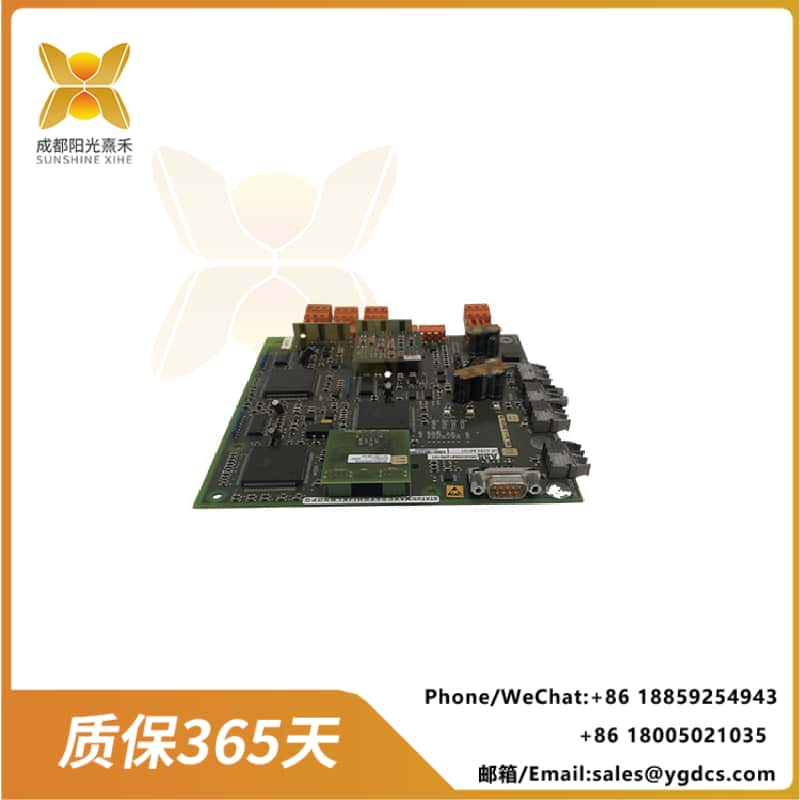

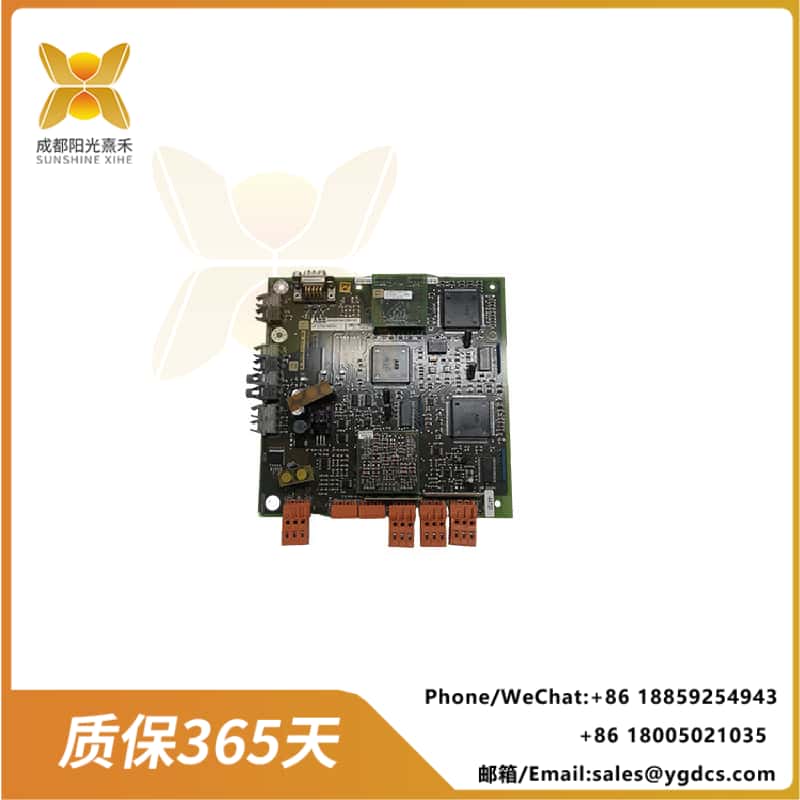

ABB 3BHE006412R0101 UFC762AE101 通用型控制器

ABB 3BHE006412R0101 UFC762AE101 is a high-performance industrial automation control module produced by ABB, belonging to ABB’s UFC700 series or 3BHE series.
ABB 3BHE006412R0101 UFC762AE101 是一款由 ABB 公司生產的高性能工業自動化控制模塊，屬于 ABB 的 UFC700 系列或 3BHE 系列。

This module is widely used in industrial automation systems to achieve precise position, speed and torque control, and is suitable for the drive and control of servo motors.
該模塊廣泛應用于工業自動化系統中，用于實現精確的位置、速度和扭矩控制，適用于伺服電機的驅動和控制 。

Product Overview
產品概述

ABB 3BHE006412R0101 UFC762AE101 is a universal controller that adopts a modular design and features programmability, high precision and high reliability.
ABB 3BHE006412R0101 UFC762AE101 是一款通用型控制器，采用模塊化設計，具備可編程性、高精度和高可靠性等特點。

It can meet various control requirements in industrial automation and is suitable for seamless integration and precise control of complex processes in manufacturing, power generation and various industrial applications.
它能夠滿足工業自動化中的多種控制需求，適用于制造、發電和各種工業應用中的復雜過程的無縫集成和精確控制 。

Product parameters
產品參數

Model: UFC762AE101 3BHE006412R0101
型號：UFC762AE101 3BHE006412R0101

Brand: ABB
品牌：ABB

Type: Control module
類型：控制模塊

Series: ABB UFC700 series or 3BHE series
系列：ABB UFC700 系列或 3BHE 系列

Input voltage: AC 100-240V or DC 24V. Some materials mention support for higher voltages such as 48V or 110V
輸入電壓：AC 100~240V 或 DC 24V，部分資料提到支持更高的電壓如 48V 或 110V

Output voltage: 0 to 10V DC or ±1000V DC
輸出電壓：0~10V DC 或 ±1000V DC

Output current: Maximum 10A
輸出電流：最大 10A

Operating temperature range: Typically -20°C to +70° C. Some sources mention support for a wider temperature range, such as -40°C to +70°C or -25°C to +55°C
工作溫度范圍：通常為 -20°C 至 +70°C，部分資料提到支持更寬的溫度范圍，如 -40°C 至 +70°C 或 -25°C 至 +55°C

Dimensions: 90mm x 36mm x 115mm
尺寸：90mm x 36mm x 115mm

Weight: Approximately 1.5kg
重量：約為 1.5kg

Communication interface: Supports multiple communication protocols, such as MODBUS, PROFIBUS and Ethernet
通信接口：支持多種通信協議，如 MODBUS、PROFIBUS 和以太網

CPU: 32-bit RISC processor, main frequency 100 MHz
CPU：32 位 RISC 處理器，主頻 100 MHz

Memory: 256 KB, program storage space: 2 MB
內存：256 KB，程序存儲空間：2 MB

I/O points: 24
I/O 點數：24

Protection grade: IP65
防護等級：IP65

Product features
產品特點

High-performance computing capabilities: Utilizing high-performance embedded processors, it can efficiently handle industrial automation tasks.
高性能計算能力：采用高性能嵌入式處理器，能夠高效處理工業自動化任務。

High reliability: Suitable for industrial environments, it features high reliability and durability.
高可靠性：適用于工業環境，具有較高的可靠性和耐用性。

Flexible expansion: Supports multiple programming languages and tools, facilitating expansion and customization.
靈活擴展：支持多種編程語言和工具，便于擴展和定制。

Easy to install and maintain: Modular design makes installation and maintenance convenient.
易于安裝和維護：模塊化設計，便于安裝和維護。

Multiple communication interfaces: Supports multiple communication protocols, facilitating communication with other devices.
多種通信接口：支持多種通信協議，方便與其他設備進行通信。

Security: It is secure and can protect industrial processes and machines from external interference and attacks.
安全性：具有安全性，可以保護工業過程和機器不受外部干擾和攻擊。

Application field
應用領域

ABB 3BHE006412R0101 UFC762AE101 is widely used in the field of industrial automation, including but not limited to:
ABB 3BHE006412R0101 UFC762AE101 廣泛應用于工業自動化領域，包括但不限于：

Process control: It is used for precisely controlling various parameters in industrial processes.
過程控制：用于精確控制工業過程中的各種參數。

Machine tool control: It is used to control the movement and operation of machine tools.
機床控制：用于控制機床的運動和操作。

Material handling system: Used to control the operation of the material handling system.
物料處理系統：用于控制物料處理系統的運行。

Power generation: Used for the control and monitoring of power generation systems.
發電：用于發電系統的控制和監控。

Oil and gas: Automation control for the oil and gas industry.
石油和天然氣：用于石油和天然氣行業的自動化控制。

Product compatibility
產品兼容性

This module is usually used in conjunction with other ABB products, such as:
該模塊通常與 ABB 的其他產品配合使用，例如：

The ABB ACS2000 / ACS5000 / ACS6000 series frequency converters: UFC762AE101 3BHE006412R0101 are the key control boards for the drive systems of these frequency converters.
ABB ACS2000 / ACS5000 / ACS6000 系列變頻器：UFC762AE101 3BHE006412R0101 是這些變頻器驅動系統的關鍵控制板。

The ABB AC 800M controller: UFC762AE101 3BHE006412R0101 can be used as its subordinate drive interface or I/O extension.
ABB AC 800M 控制器：UFC762AE101 3BHE006412R0101 可以作為其下屬的驅動接口或 I/O 擴展。

ABB XVC770BE101 3BHE021083R0101: Another type of ABB control board, which may be used in the same system or related applications.
ABB XVC770BE101 3BHE021083R0101：另一種 ABB 控制板，可能在同一系統或相關應用中使用。

ABB PPC907BE 3BHE024577R0101: ABB’s process control board may work in conjunction with UFC762AE101 3BHE006412R0101 in large-scale DCS systems.
ABB PPC907BE 3BHE024577R0101：ABB 的過程控制板，與 UFC762AE101 3BHE006412R0101 可能在大型 DCS 系統中協同工作。

ABB power modules, such as 3BHE032593R0001, provide stable power for control boards and other modules.
ABB 電源模塊：如 3BHE032593R0001，為控制板和其他模塊提供穩定電力。

ABB I/O modules: Various analog or digital I/O modules exchange data with the controller via UFC762AE101 3BHE006412R0101.
ABB I/O 模塊：各類模擬量或數字量 I/O 模塊，通過 UFC762AE101 3BHE006412R0101 與控制器進行數據交換。

ABB DriveBus/Fieldbus communication module: Supports UFC762AE101 3BHE006412R0101 to communicate with other systems or field devices.
ABB DriveBus / Fieldbus 通信模塊：支持 UFC762AE101 3BHE006412R0101 與其他系統或現場設備進行通信。

Product advantages
產品優勢

High performance: Strong processing capacity, capable of handling large amounts of data, and at a very fast speed.
高效能：處理能力強，能夠處理大量的數據，并且速度很快。

Versatility: It has multiple functions and can implement complex control logic.
多功能性：具有多種功能，可以實現復雜的控制邏輯。

High reliability: Utilizing industrial-grade components, it features a high level of reliability.
高可靠性：采用工業級元器件，具有較高的可靠性。

Easy to maintain: It can be remotely diagnosed and maintained, while featuring high reliability and availability.
易于維護：可以進行遠程診斷和維護，同時具有高可靠性和可用性。

Summary
總結

ABB 3BHE006412R0101 UFC762AE101 is a high-performance industrial automation control module, suitable for a variety of industrial applications, featuring high precision, high reliability and flexible scalability.
ABB 3BHE006412R0101 UFC762AE101 是一款高性能的工業自動化控制模塊，適用于多種工業應用，具有高精度、高可靠性和靈活擴展性。

It plays a significant role in the field of industrial automation and is a key component for achieving precise control and efficient management.
它在工業自動化領域中發揮著重要作用，是實現精確控制和高效管理的關鍵組件。
