描述

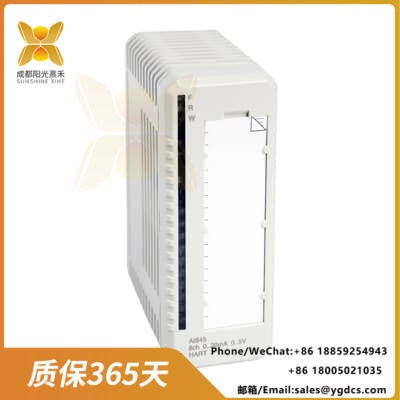

ABB 3BSE023675R1 8 通道模擬輸入模塊

The ABB 3BSE023675R1 is an industrial automation module produced by ABB. Specifically, it is an 8-channel analog input module and is part of the ABB S800 I/O system.
ABB 3BSE023675R1 是一款由 ABB 公司生產的工業自動化模塊，具體來說，它是一款 8 通道模擬輸入模塊，屬于 ABB S800 I/O 系統的一部分。

This module is mainly used to collect analog signals from industrial sites, such as temperature, pressure, and flow rate, and convert them into digital signals for processing and control by control systems like PLC or DCS.
該模塊主要用于采集工業現場的模擬信號，如溫度、壓力、流量等，并將其轉換為數字信號，以便于 PLC 或 DCS 等控制系統進行處理和控制 。



Product function
產品功能

The main functions of the ABB 3BSE023675R1 analog input module include:
ABB 3BSE023675R1 模擬輸入模塊的主要功能包括：

Signal acquisition: It can simultaneously collect 8 analog signals, improving system efficiency.
信號采集：能夠同時采集 8 路模擬信號，提高系統效率。

Signal conversion: Convert analog signals (such as 0-20mA, 0-5V) into digital signals to facilitate subsequent processing.
信號轉換：將模擬信號（如 0-20mA、0-5V）轉換為數字信號，便于后續處理。

Communication capability: Supports HART protocol and can communicate with HART intelligent instruments.
通信能力：支持 HART 協議，可與 HART 智能儀表進行通信。

High-precision measurement: Equipped with 12-bit resolution to ensure the accuracy of signal acquisition.
高精度測量：具備 12 位分辨率，確保信號采集的精度。

Modular design: Easy to install and maintain, suitable for harsh industrial environments.
模塊化設計：易于安裝和維護，適用于惡劣工業環境。

Redundancy support: Supports single-channel or redundant configuration to enhance the reliability and stability of the system.
冗余支持：支持單通道或冗余配置，提高系統的可靠性和穩定性 。



Technical parameters
技術參數

Model: 3BSE023675R1
型號：3BSE023675R1

Brand: ABB
品牌：ABB

Type: Analog Input module
類型：模擬輸入模塊

Number of channels: 8 channels
通道數：8 個通道

Input signal range
輸入信號范圍：

0…
0…

20mA
20mA

4…
4…

20mA
20mA

0…
0…

5V
5V

1…
1…

5V
5V

Signal type: Unipolar single-ended
信號類型：單端極性（Unipolar single-ended）

Resolution: 12 bits
分辨率：12 位

Operating temperature: -20℃ to +60℃
工作溫度：-20℃ 至 +60℃

Power supply voltage: 24V DC
電源電壓：24V DC

Power consumption: 5W
功耗：5 W

Protection grade: IP20
防護等級：IP20

Dimensions: 135mm x 85mm x 35mm
尺寸：135 mm x 85 mm x 35 mm

Weight: 0.4 kg
重量：0.4 kg

Certification: Complies with international standards such as IEC and ANSI, and has passed certifications such as CE and UL
認證：符合 IEC、ANSI 等國際標準，通過 CE、UL 等認證



Application field
應用領域

The ABB 3BSE023675R1 analog input module is widely used in the following fields:
ABB 3BSE023675R1 模擬輸入模塊廣泛應用于以下領域：

Process control: Chemical engineering, petroleum, power and other industries
過程控制：化工、石油、電力等行業

Industrial automation: manufacturing, automotive manufacturing, etc
工業自動化：制造業、汽車制造等

Water treatment: Sewage treatment, waterworks
水處理：污水處理、自來水廠

Building Automation: Building Management System
建筑自動化：樓宇管理系統

Laboratory equipment: Used for precise measurement and control in laboratories
實驗室設備：用于實驗室中的精密測量和控制

Environmental monitoring: It is used for real-time monitoring and control of environmental parameters
環境監測：用于環境參數的實時監測和控制



Summary
總結

The ABB 3BSE023675R1 is a high-performance 8-channel analog input module, suitable for signal acquisition and processing in industrial automation systems.
ABB 3BSE023675R1 是一款高性能的 8 通道模擬輸入模塊，適用于工業自動化系統中的信號采集和處理。

It features high precision, high reliability and excellent communication capabilities, and is widely used in multiple industrial fields.
它具備高精度、高可靠性和良好的通信能力，廣泛應用于多個工業領域。

This module supports the HART protocol and can communicate with intelligent instruments. It is an important component for building complex industrial control systems.
該模塊支持 HART 協議，能夠與智能儀表進行通信，是構建復雜工業控制系統的重要組成部分 。
