ABB CP405 | 工業自動化控制面板

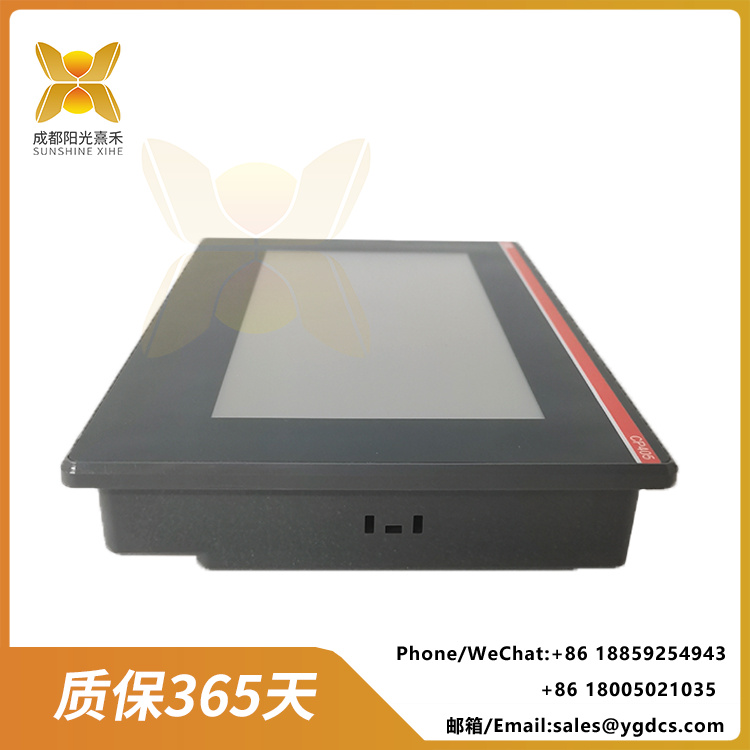

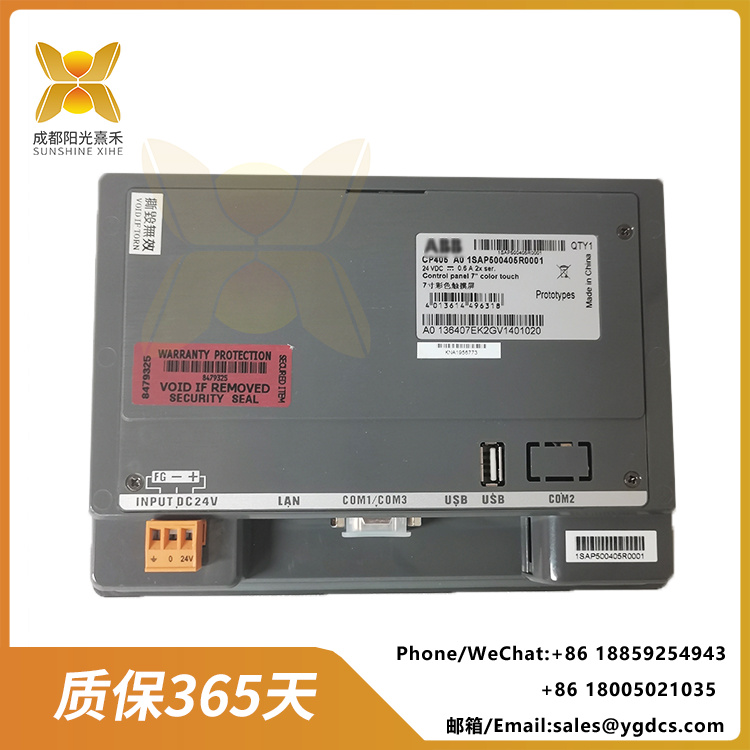

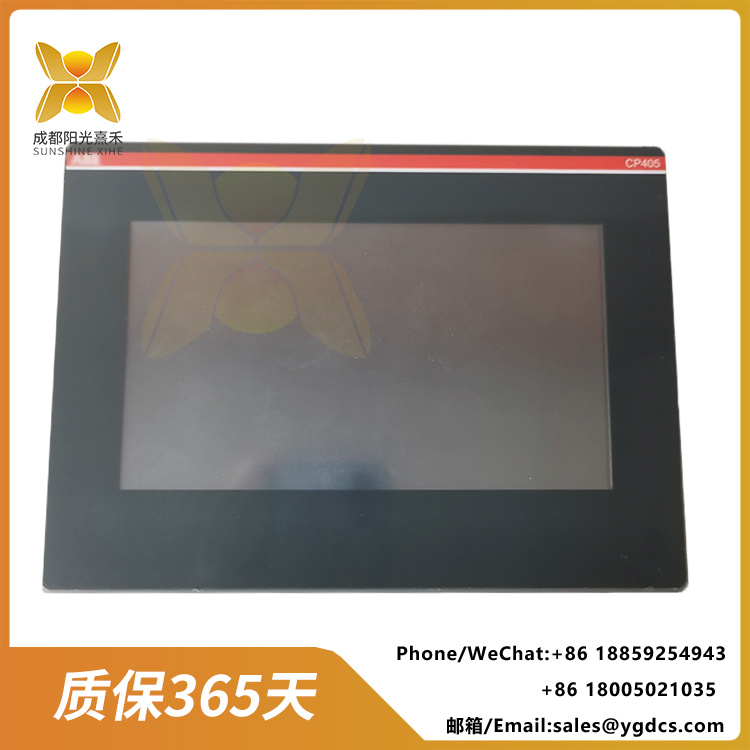

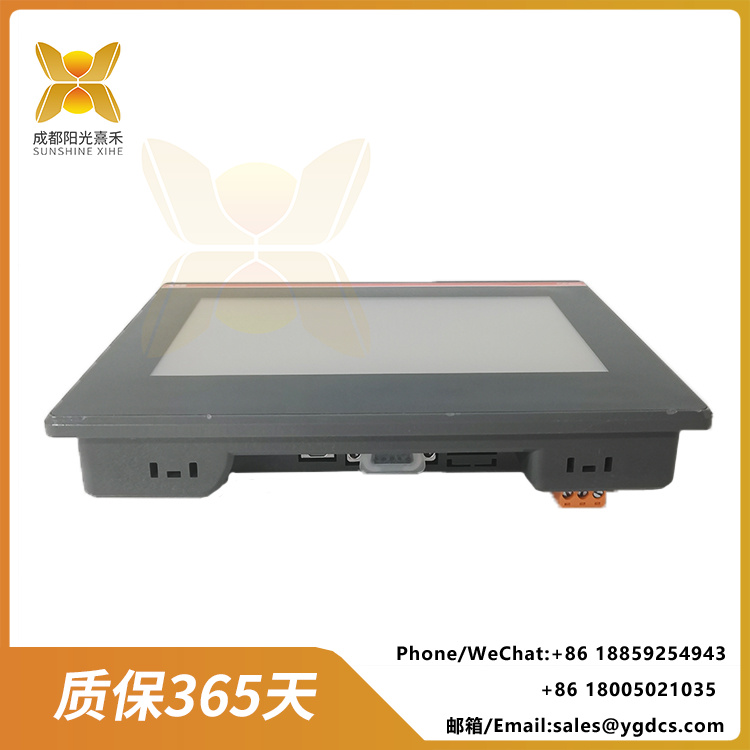

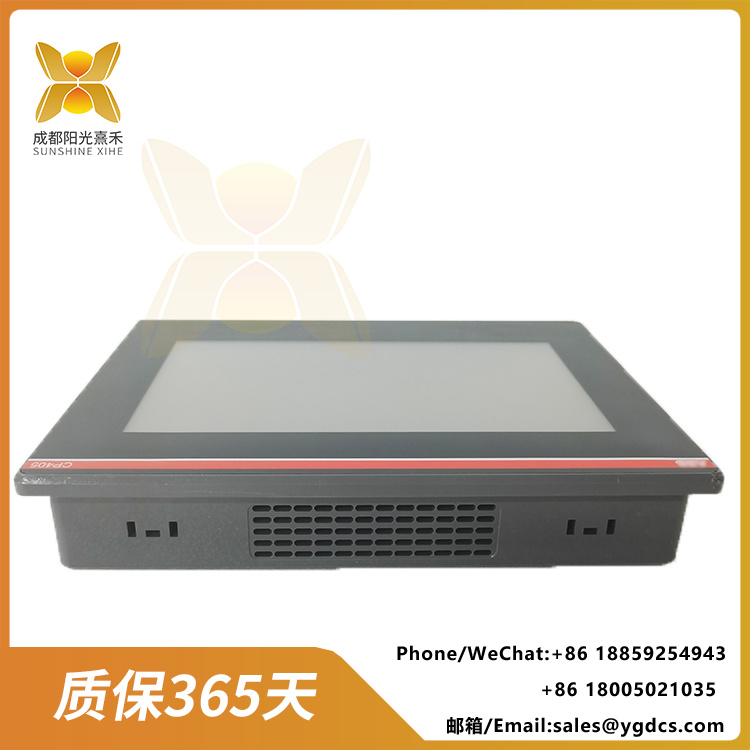

CP405 is a high-performance industrial automation control panel launched by ABB, belonging to the CP400PB series. It is widely used in industrial automation and process control systems.
CP405 是一款由 ABB 公司推出的高性能工業自動化控制面板，屬于 CP400PB 系列產品，廣泛應用于工業自動化和過程控制系統中。

The main function of this product is to provide a user-friendly interface for monitoring and controlling various industrial processes, thereby enhancing production efficiency and product quality.
該產品主要功能是提供一個用戶友好的界面，用于監控和控制各種工業過程，提高生產效率和產品質量。

Product function
產品功能

The CP405 control panel is equipped with multiple functions, including:
CP405 控制面板具備多種功能，包括：

Logical control, analog control and digital control: Supports multiple control methods to meet the needs of different industrial applications.
邏輯控制、模擬控制和數字控制：支持多種控制方式，滿足不同工業應用的需求 。

Data collection and alarm processing: It can collect equipment operation data in real time and display alarm information promptly to ensure the safety of the production process.
數據采集與報警處理：能夠?qū)崟r(shí)采集設備運行數據，并及時顯示報警信息，確保生產過程的安全性 。

Formula management: Supports user-defined formulas, facilitating quick switching and adjustment under different production conditions.
配方管理：支持用戶自定義配方，便于在不同生產條件下進行快速切換和調整 。

Remote access: Supports remote connection and operation, facilitating maintenance and management.
遠程訪問：支持遠程連接和操作，便于維護和管理 。

Multi-language support: Offers interfaces in multiple languages to facilitate use by users from different regions.
多語言支持：提供多種語言界面，方便不同地區的用戶使用 。

Real-time monitoring: Through a high-resolution touch screen, the operating status and data of the equipment are displayed in real time, facilitating the operator’s monitoring and adjustment.
實時監控：通過高分辨率觸摸屏，實時顯示設備運行狀態和數據，便于操作員進行監控和調整 。

Technical parameters
技術參數

The technical parameters of CP405 are as follows:
CP405 的技術參數如下：

Display size: 7-inch TFT touch screen.
顯示尺寸：7英寸 TFT 觸摸屏 。

Resolution: 800 x 480 pixels.
分辨率：800 x 480 像素 。

Touch screen type: Supports resistive or capacitive touch screens.
觸摸屏類型：支持電阻式或電容式觸摸屏 。

Input voltage: AC 100-240V, frequency 50/60Hz.
輸入電壓：AC 100-240V，頻率 50/60Hz 。

Output voltage: 24V DC.
輸出電壓：24V DC 。

Maximum output current: 5A.
最大輸出電流：5A 。

Operating temperature range: -25°C to +70°C.
工作溫度范圍：-25°C 至 +70°C 。

Storage temperature range: -20°C to +70°C.
存儲溫度范圍：-20°C 至 +70°C 。

Protection grade: IP65.
防護等級：IP65 。

Communication interface: Supports multiple communication protocols such as Modbus TCP, Profinet, RS232, RS485, and USB.
通信接口：支持 Modbus TCP、Profinet、RS232、RS485、USB 等多種通信協議 。

Processor: Intel Atom N270, main frequency 533 MHz, supports two SO-DIMM DDR2 667MHz/PC5300 slots, maximum memory capacity 4 GByte.
處理器：Intel Atom N270，主頻 533 MHz，支持兩個 SO-DIMM DDR2 667MHz/PC5300 插槽，最大內存容量為 4 GByte 。

Power consumption: 5W.
功耗：5 W 。

Weight: Approximately 0.5 kg.
重量：約 0.5 kg 。

Dimensions: 90mm x 100mm x 80mm.
尺寸：90mm x 100mm x 80mm 。

Application field
應用領域

CP405 is widely used in the following fields:
CP405 廣泛應用于以下領域：

Power industry: Used for monitoring and control of power facilities such as power plants and substations.
電力行業：用于發電廠、變電站等電力設施的監控和控制 。

Petroleum and chemical industry: It is used for the automatic control of processes such as petroleum refining and chemical production.
石油和化工：用于石油煉化、化工生產等過程的自動化控制 。

Steel industry: Used for production line control and monitoring in steel mills.
鋼鐵行業：用于鋼鐵廠的生產線控制和監控 。

Automobile manufacturing: Automation control for automotive assembly lines.
汽車制造：用于汽車裝配線的自動化控制 。

Mechanical manufacturing: Used for the control and monitoring of mechanical equipment.
機械制造：用于機械設備的控制和監控 。

Electronic manufacturing: Used for the production process control of electronic products.
電子制造：用于電子產品的生產過程控制 。

Water treatment: Automated control for sewage treatment plants.
水處理：用于污水處理廠的自動化控制 。

Food and beverage: Automation control for food processing and beverage production.
食品飲料：用于食品加工和飲料生產的自動化控制 。

Summary
總結

CP405 is a high-performance industrial automation control panel featuring a high-resolution touch screen, powerful communication capabilities and flexible configuration options, making it suitable for a wide range of industrial application scenarios.
CP405 是一款高性能的工業自動化控制面板，具有高分辨率觸摸屏、強大的通信能力和靈活的配置選項，適用于多種工業應用場景。

Its technical parameters and functions make it highly reliable and applicable in the field of industrial automation.
其技術參數和功能使其在工業自動化領域中具有較高的可靠性和適用性。
