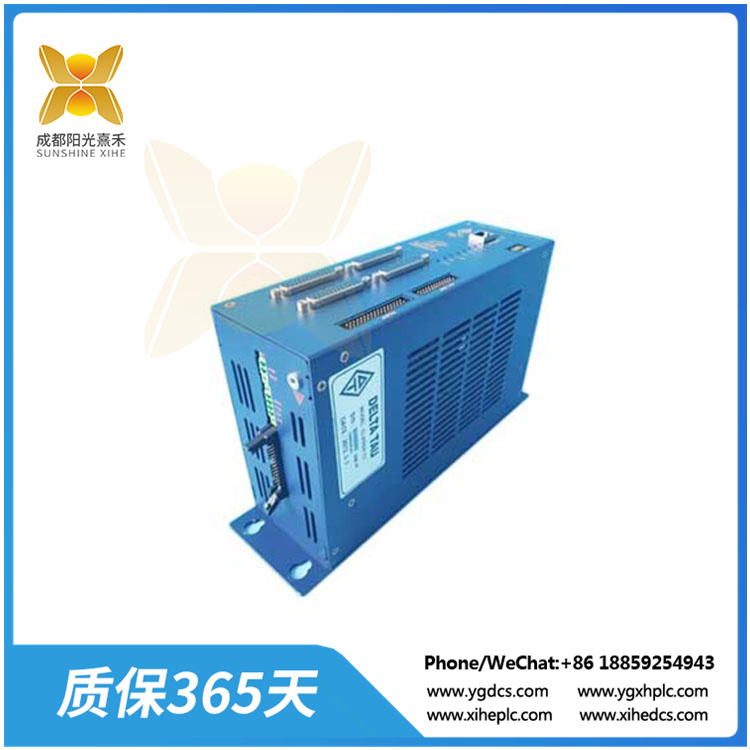

CLIPPER-T3? ? CLIPERT3運動控制器
Delta Tau的Turbo CLIPPERT3控制器(“Clipper”)為成本敏感型應用提供了非常強大，但緊湊且具有成本效益的多軸控制器。它有一個完整的渦輪CLIPPERT3部分，并提供至少4軸的伺服或步進控制與32個通用數字I/O點。它提供以太網和RS-232通信鏈路?？蛇x的軸擴展板提供了一組四個額外的伺服通道和額外的I/O端口。
CLIPPERT3基礎版本
?基礎版本的Clipper控制器(渦輪CLIPPERT3)提供一個110毫米x
220mm (4.25 ” x 8.5 “)板，附:
?80 MHz DSP56303 Turbo PMAC CPU
?256k × 24用戶SRAM
?1M × 8閃存用于用戶備份和固件
?最新發布的固件版本
?RS-232串行接口
?100mbps以太網接口
?480mbit /s USB 2.0接口
?4通道軸接口電路，每個包括:
o 12位+10V模擬輸出
o脈沖方向數字輸出
O 3通道差分/單端編碼器輸入
5個輸入標志，2個輸出標志
o UVW ttl級“大廳”輸入
?50針I(yè)DC頭放大器/編碼器接口
?標志接口34針I(yè)DC頭
?4針Molex連接器，用于電源輸入(5V， +/-12V, GND)
?(+/-12V只需要模擬輸出或輸入)
?PID/陷波/前饋伺服算法
?32個通用ttl級I/O點，方向可按字節選擇:
o 16點多路復用端口兼容Delta Tau I/ o配件
o 16點“Opto”端口，兼容Opto-22型模塊
?“手輪”端口各2個:
o正交編碼器輸入
o脈沖(PFM或PWM)輸出對
車載選項:
?可選2通道12位A/D轉換器，1個12位D/A轉換器
?可選Modbus以太網I/O協議
?板載8K x 16雙端口RAM。
支持可堆疊配件:
?ACC-1P PC/104格式通道5-8板
?ACC-8ES 4通道雙18位真dac輸出板
?ac – 8fs 4通道直接pwm輸出板
CLIPPER-T3? ? CLIPERT3運動控制器
The Turbo CLIPPERT3 controller (“Clipper”) from Delta Tau provides a very powerful, but compact and cost-effective, multi-axis controller for cost-sensitive applications. It has a full Turbo CLIPPERT3 section and provides a minimum of 4 axes of servo or stepper control with 32 general-purpose digital I/O points. It provides both Ethernet and RS-232 communications links. The optional axis expansion board provides a set of four additional servo channels and extra I/O ports.
CLIPPERT3 Base Version
? The base version of the Clipper Controller (Turbo CLIPPERT3) provides a 110mm x
220mm (4.25” x 8.5”) board with:
? 80 MHz DSP56303 Turbo PMAC CPU
? 256k x 24 user SRAM
? 1M x 8 flash memory for user backup & firmware
? Latest released firmware version
? RS-232 serial interface
? 100 Mbps Ethernet interface
? 480 Mbit/sec USB 2.0 interface
? 4 channels axis-interface circuitry, each including:
o 12-bit +10V analog output
o Pulse-&-direction digital outputs
o 3-channel differential/single-ended encoder input
o 5 input flags, 2 output flags
o UVW TTL-level “hall” inputs
? 50-pin IDC header for amplifier/encoder interface
? 34-pin IDC header for flag interface
? 4-pin Molex connector for power supply input (5V, +/-12V, GND)
? (+/-12V only required for analog outputs or inputs)
? PID/notch/feedforward servo algorithms
? 32 general-purpose TTL-level I/O points, direction selectable by byte:
o 16-point multiplexer port compatible with Delta Tau I/O accessories
o 16-point “Opto” port compatible with Opto-22-style modules
? “Handwheel” port with 2 each:
o Quadrature encoder inputs
o Pulse (PFM or PWM) output pairs
On-board options:
? Optional 2 channels 12-bit A/D converters, 1 12-bit D/A converter
? Optional Modbus Ethernet I/O protocol
? On-board 8K x 16 dual-ported RAM.
Stackable accessories supported:
? ACC-1P PC/104-format Channel 5-8 board
? ACC-8ES 4-channel dual 18-bit true-DAC output board
? ACC-8FS 4-channel direct-PWM output board
