描述

DS200PCCAG9ACB 電源連接卡

產品描述
GE直流電源連接板DS200PCCAG9ACB由通用電氣設計，用于與Mark V DS200系列一起工作，并用作驅動器和可控硅電源橋接之間的接口。DS200PCCAG9ACB板包含多個連接器，提供電源和控制信號，向驅動器發送和接收信息。更換過程中的一項關鍵任務是將電纜從板上拆下并重新連接到更換板上，因為在此Mark V系列產品的組裝中可能存在潛在的致命表面電壓。

硬件須知和規格

關于電源連接卡組件的基礎修訂PCCA模式，有幾個組修訂。DS200PCCAG9ACB型號是第九組的一部分，在再生狀態下工作在630伏。除此之外，PCCA電源連接卡組件的這組九變體具有直流電壓緩沖器，由J和m型框架提供的支持輔助工作，使用此SDCI Mark V系列電源板，并在其組件中采用腿保險絲和腿電抗器。在母線變壓器方面，這款DS200PCCAG9ACB型號的電源連接卡組件能夠使用單獨或共同的母線變壓器，并且該Mark V系列產品接受的交流電壓被分類為小于或等于600v均方根。關于分組之間差異的更多信息可以在GEH-6005手冊中找到。

雖然這是關于詳細介紹這個pca縮寫的通用電氣產品的原始說明手冊信息的程度，但毫無疑問，這個Mark V系列產品以其DS200PCCAG9ACB功能產品編號的形式提供了更多信息，該編號以DS200系列標簽開始。該系列標簽具有雙重命名功能，詳細介紹了PCCA電源連接卡組件作為在美國制造的正常組裝版本的產品。從DS200PCCAG9ACB產品編號中收集的其他一些信息包括:

PCCA功能縮寫
一種普通的PCB涂層
一組九馬克V系列分組
兩個功能產品修訂和一個美術產品修訂

DS200PCCAG9ACB 電源連接卡

Product Description

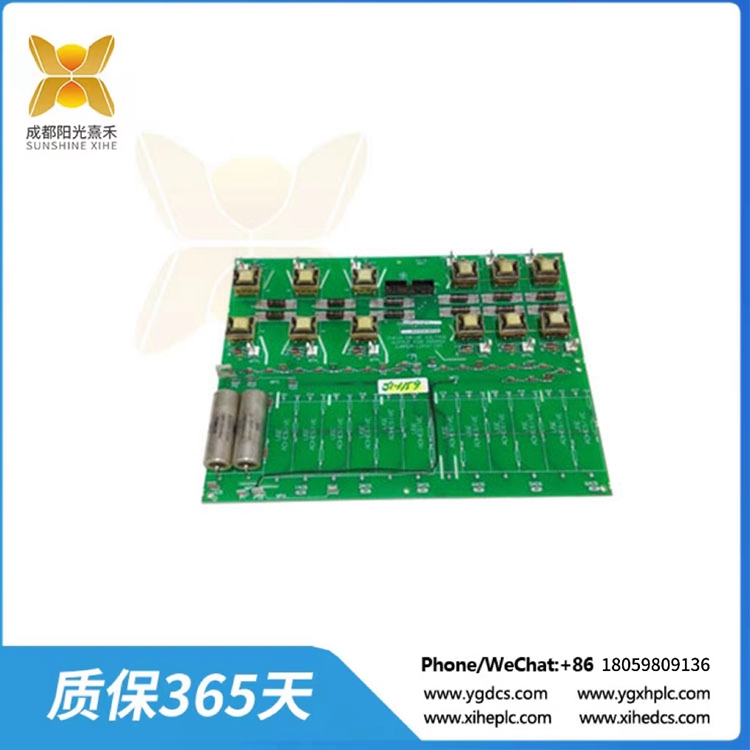

The GE DC Power Connect Board DS200PCCAG9ACB was designed by General Electric to work with the Mark V DS200 series and?serves as an interface between the drive and the SCR power bridge. The DS200PCCAG9ACB board contains multiple connectors that supply power and control signals that transmit and receive information to the drive. A critical task in the replacement procedure is to remove the cables from the board and reconnect them on the replacement board, as potentially lethal surface votlages may exist in the assembly of this Mark V Series product otherwise.

Hardware Tips and Specifications

There are several group revisions in relation to the base-revised PCCA mode of Power Connect Card Assembly. The?DS200PCCAG9ACB model is part of group nine, which operates on 630 volts in a regenerative state.? In addition to this, this group nine variant of PCCA Power Connect Card Assembly has DC voltage snubbers exclusively, works assisted by the support offered by J and M-style frames, utilizes this SDCI Mark V Series power board, and adopts both a leg fuse and a leg reactor into its assembly. In terms of its bus transformer, this DS200PCCAG9ACB model of Power Connect Card Assembly is able to make use of either separate or common bus transformers, and the AC Volts accepted by this Mark V Series product are classified as less than or equal to 600 V rms. More information on the differences between the grouping can be found in the GEH-6005 manual.

While this is about the extent of original instructional manual information detailing this PCCA-abbreviated General Electric product specifically, it is no question that this Mark V Series offering offers more information in the form of its DS200PCCAG9ACB functional product number, which begins with the DS200 series tag. This series tag has dual naming functionality, detailing the PCCA Power Connect Card Assembly as a product with a normal assembly version that was manufactured in the United States. Some of the other information collectible from the DS200PCCAG9ACB product number includes:

The PCCA functional acronym
A normal style of PCB coating
A group nine Mark V Series grouping
Two functional product revisions and an artwork product revision
