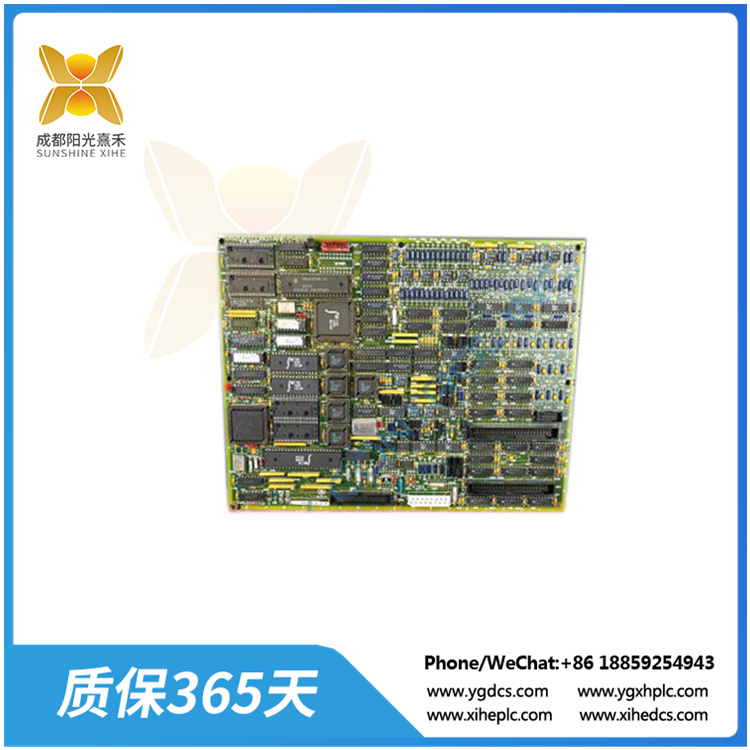

DS200TCCBG1A 通用擴展模擬 IO 板
這DS200TCCBG1A TC2000模擬板最初制造存在作為通用電氣的Mark V系列渦輪控制系統的成員。DS200TCCBG1A TC2000模擬板實際上更準確地描述了其作為通用擴展模擬IO板的真實功能描述。此功能描述中的IO首字母縮略詞指出該DS200TCCBG1A印刷電路板在Mark V系列中作為輸入/輸出板的特定作用。
硬件須知和規格
GE I/O TC2000模擬板DS200TCCBG1A具有一個80196微處理器和多個PROM模塊。它還包含一個LED和2個50針連接器，從板的側視圖可以看到LED。DS200TCCBG1A板組裝中使用的50針連接器的id為JCC和JDD。該板還配備了5個34針連接器。這五個連接器的id分別是JAA、JBB、JAT、JAS和JAR。因?yàn)殡娐钒灏鄠€(gè)34針連接器，所以在斷開連接之前記錄帶狀電纜連接的位置非常重要。重要的是盡快使驅動器恢復在線，這樣做需要在第一次更換板并重新啟動驅動器時進行正確的信號連接。您可能不知道您已經做了錯誤的連接，直到您重新啟動驅動器，并發現正確的信號沒有被發送或接收的板。在這種情況下，您可以關閉驅動器并重新連接帶狀電纜。斷開電纜時，應避免將帶狀電纜從電纜的帶狀部分拉出。這將以安全的方式將細銅線從連接器中拉出。
DS200TCCBG1A通用擴展模擬I/O板的一些附加硬件規格和組件元件只需檢查該產品的個性化DS200TCCBG1A功能產品編號即可獲得，該產品編號顯示了DS200TCCBG1A PCB的正常組裝類型，國內制造地點，TCCB功能首字母縮略詞，正常PCB涂層樣式，第一組Mark V系列分組和單獨的a級功能修訂等信息。
DS200TCCBG1A 通用擴展模擬 IO 板
This?DS200TCCBG1A TC2000 Analog Board was originally manufactured to exist as a member of General Electric’s Mark V Series of turbine control systems. This?DS200TCCBG1A TC2000 Analog Board is actually more accurately describable through its true functional description as a Common Extended Analog IO Board. The IO acronym in this functional description points to this?DS200TCCBG1A printed circuit board’s specific role as an Input/Output Board within the Mark V Series.
Hardware Tips and Specifications
The GE I/O TC2000 Analog Board DS200TCCBG1A features one 80196 microprocessor and multiple PROM modules. It also contains one LED and 2 50-pin connectors, with the LED is visible from the side view of the board. The IDs for the 50-pin connectors used in the assembly of this DS200TCCBG1A board are JCC and JDD. The board also is populated with 5 34-pin connectors. The IDs for the five connectors are JAA, JBB, JAT, JAS, and JAR. Because the board contains multiple 34-pin connectors it is important to record where the ribbon cables are connected before you disconnect them. It is important to get the drive back online as quickly as possible and doing that requires making the right signal connections when you first replace the board and restart the drive. You might not know you have made the wrong connections until you have restarted the drive and find that the right signals are not being transmitted or received by the board. In that case, you can shutdown the drive and reconnect the ribbon cables. To disconnect the cables, avoid pulling the ribbon cable from the ribbon section of the cable. This will pull the fine copper strands out of the connector in a safe manner.
Some additional hardware specifications and component elements for this?DS200TCCBG1A Common Extended Analog I/O Board are available simply upon an inspection of this product’s individualized?DS200TCCBG1A functional product number, which reveals informations such as this?DS200TCCBG1A PCB’s normal assembly type, domestic location of manufacture, TCCB functional acronym, normal PCB coating style, group one Mark V Series grouping, and lone A-rated functional revision.
