描述

產品細節說明：DS200TCQCG1AJD? GE 溢流板

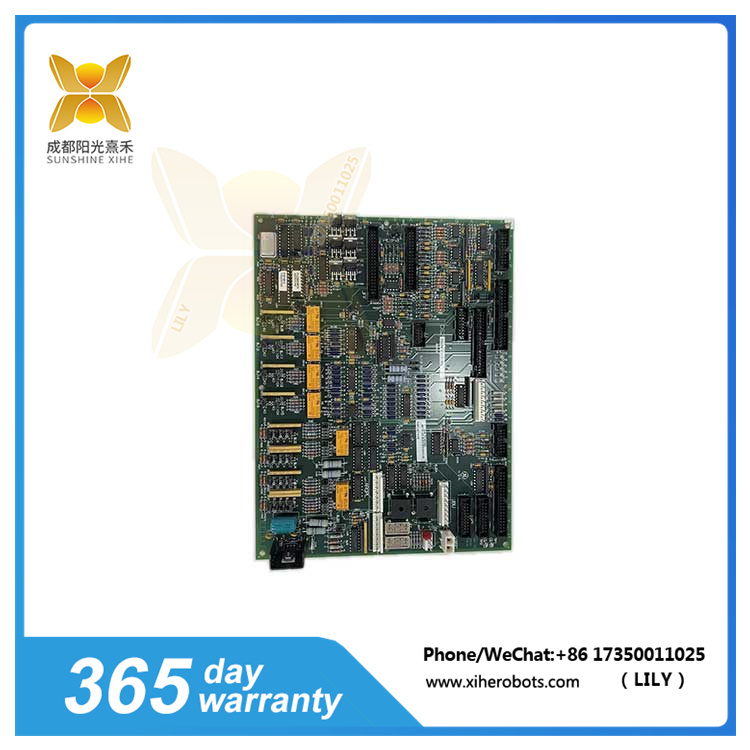

GE DS200TCQCG1AJD 是通用電氣（GE）Mark V汽輪機控制系統中的一個關鍵組件，具體是一個溢流板，它負責監視汽輪機的關鍵參數，如轉速、振動和溫度，以保護汽輪機免受損害。該溢流板裝備了24個跳線和3個40針連接器，還有3個34針連接器和1個16針連接器，這些跳線和連接器對于板的配置起著重要作用 。

跳線允許安裝人員根據不同的需求對板進行配置。在安裝過程中，工程師和安裝人員會協商確定如何設置跳線，以滿足特定設施的要求。此外，DS200TCQCG1AJD板上的跳線在安裝到驅動器之前就已經設置好了，需要參考安裝手冊來了解可用的配置選項

產品詳情參數 ：DS200TCQCG1AJD? GE 溢流板

• 它具備監視汽輪機關鍵參數的功能，如轉速、振動和溫度，并能在檢測到超出安全范圍的狀況時觸發警報和跳閘?。
• 該板提供冗余保護，確保在發生單個組件故障時也能提供可靠的保護，并符合IEC 60947-5-1標準的安全要求?。
• DS200TCQCG1AJD 還配備了24個跳線和多個不同針腳數目的連接器，例如3個40針連接器和3個34針連接器以及1個16針連接器，這些跳線和連接器在板的配置中發揮重要作用?。

DS200TCQCG1AJD? GE 應用領域：

該產品廣泛應用于發電廠和其他工業應用中的汽輪機保護，以確保設備和操作人員的安全。DS200TCQCG1AJD 溢流板還具有冗余保護功能，以確保在單個組件發生故障時仍能提供可靠的保護，并符合IEC 60947-5-1的安全標準。它廣泛應用于發電廠和其他工業應用中，以確保汽輪機的安全運行

Product Details: DS200TCQCG1AJD GE Overflow Plate

The GE DS200TCQCG1AJD is a critical component in the General Electric (GE) Mark V turbine control system, specifically an overflow plate that is responsible for monitoring key parameters of the turbine, such as speed, vibration, and temperature, to protect the turbine from damage. The overflow board is equipped with 24 jumpers and 3 40 pin connectors, as well as 3 34 pin connectors and 1 16 pin connector, which play an important role in the configuration of the board.

Jumpers allow installers to configure boards according to different needs. During the installation process, engineers and installers will consult to determine how to set jumpers to meet the requirements of specific facilities. In addition, the jumper wires on the DS200TCQCG1AJD board are already set before installation onto the driver, and it is necessary to refer to the installation manual for available configuration options

Product details and parameters: DS200TCQCG1AJD GE overflow plate
It has the function of monitoring key parameters of the steam turbine, such as speed, vibration, and temperature, and can trigger alarms and trips when conditions beyond the safe range are detected.
This board provides redundant protection to ensure reliable protection in the event of a single component failure and meets the safety requirements of IEC 60947-5-1 standard.
The DS200TCQCG1AJD is also equipped with 24 jumpers and multiple connectors with different numbers of pins, such as 3 40 pin connectors, 3 34 pin connectors, and 1 16 pin connector, which play an important role in the configuration of the board.
DS200TCQCG1AJD GE Application Fields:

This product is widely used for turbine protection in power plants and other industrial applications to ensure the safety of equipment and operators. The DS200TCQCG1AJD overflow plate also has redundant protection function to ensure reliable protection in the event of a single component failure, and complies with the safety standard of IEC 60947-5-1. It is widely used in power plants and other industrial applications to ensure the safe operation of steam turbines
