描述

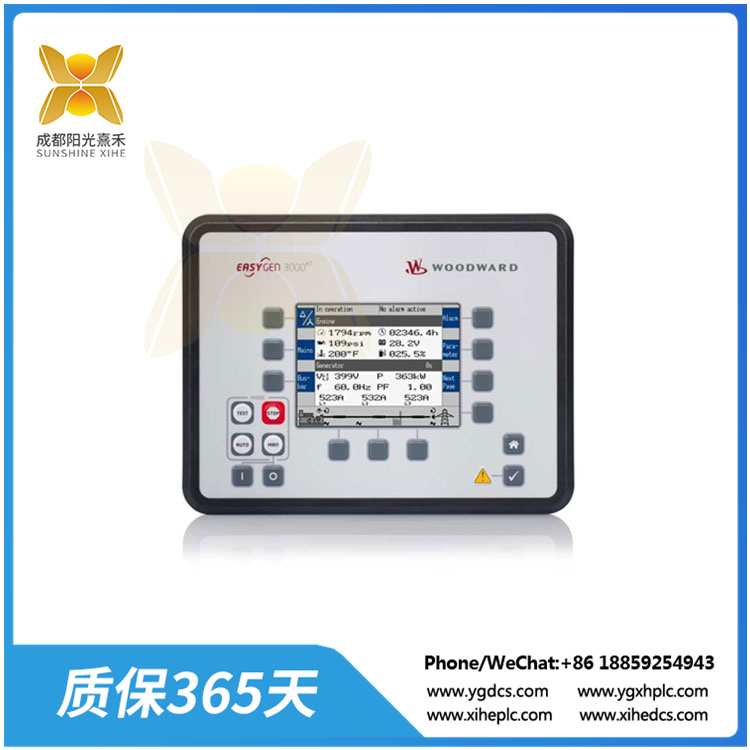

EASYGEN-3200XT 8440-2082 控制-EASYGEN-3200XT-P1

easYgen-3200XT將完整的發動機發電機控制和保護與先進的點對點并聯功能和創新功能結合在一起，具有強大的吸引力和用戶友好的軟件包。

Woodward的easYgen-3200XTXT系列并聯發電機組控制器為OEM開關設備制造商，發電機包裝商和系統集成商提供了卓越的多用途性和價值。easYgen-3200XT將完整的發動機發電機控制和保護與先進的點對點并聯功能和創新功能結合在一起，具有強大的吸引力和用戶友好的軟件包。其集成的LogicsManager?可編程邏輯功能提供了出色的應用靈活性，通?？梢韵龑︻~外PLC控制的需求，但可以輕松地與SCADA或基于PLC的控制系統集成。

easYgen-3200XT為您提供了標準化的單一，經濟實惠的發電機組控制器的優勢，適用于許多不同的分布式發電應用-從獨立應急備用電源到多達32臺發電機組的并聯負載共享，在復雜的分段配電系統中具有多個公用事業饋電和斷路器。

應用程序:
應急備用:數據中心、醫院、商業和工業設施
分布式發電(DG):用于峰值需求響應的公用事業可調度電力
島嶼主要電力:石油和天然氣勘探，海洋，偏遠村莊，租賃/移動
微電網:軍隊，政府，零凈社區，大學
公用事業并網:調峰、限電
熱電聯產(CHP):廢水處理、沼氣生產/遏制
開關設備升級:發電機控制改造，以增加負載共享/并聯能力

特點:
真正的均方根電壓和電流傳感(電源，母線和市電)，以減少對諧波的敏感性
CAN網絡通信/控制引擎ECU(支持標準SAE-J1939協議和幾個專有引擎OEM協議)
串行Modbus RTU(從站)通信用于SCADA公告和外部控制
使用Woodward ToolKit服務工具通過PC/筆記本進行配置
與RP-3200XT遠程面板連接，通過CANopen協議，在最遠250米的距離上完成通知，控制和配置easYgen-3200XT控制器
合規機構/海事*認證:CE, UL/cUL, CSA, BDEW, ABS，勞氏船級社(*參見海事包進一步認證)

easYgen-3200XT系列提供:
AMF(自動電源故障)檢測，解耦和緊急運行與死母線關閉
自動同步:相位匹配，正/負滑移頻率，助跑(死區)并聯
斷路器合/開控制:僅GCB, GCB和MCB (ATS功能)，或外部(無)控制
比例負載共享(同步或下垂)多達32個發電機組，無論個體大小
基載、進出口控制、不對稱加載(通過外部基載輸入)
自動負載依賴啟動/停止，提高發電系統效率
異步(感應)發電機控制
發動機和發電機保護功能，具有完全可編程設置

EASYGEN-3200XT 8440-2082 控制-EASYGEN-3200XT-P1

The easYgen-3200XT combines complete engine-generator control and protection with advanced, peer-to-peer paralleling functionality and innovative features in a robust, attractive and user-friendly package.

Woodward’s easYgen-3200XTXT Series paralleling genset controllers provide exceptional versatility and value for OEM switchgear builders, generator packagers, and system integrators. The easYgen-3200XT combines complete engine-generator control and protection with advanced, peer-to-peer paralleling functionality and innovative features in a robust, attractive and user-friendly package. Its integrated LogicsManager? programmable logic functionality provides outstanding application flexibility and can often eliminate the need for additional PLC control, yet can easily integrate with SCADA or PLC-based control systems where desired.

The easYgen-3200XT gives you the advantage of standardizing on a single, affordable genset controller for many different distributed power generation applications–from stand-alone emergency backup power to parallel load sharing of up to 32 gensets in complex, segmented distribution systems with multiple utility feeds and tie breakers.

Applications:
Emergency standby: data centers, hospitals, commercial and industrial facilities
Distributed Generation (DG): utility-dispatchable power for peak demand response
Islanded prime-power: oil & gas exploration, marine, remote villages, rental/mobile
Microgrid: military, government, net-zero communities, universities
Utility paralleling: peak shaving, demand curtailment
Cogeneration (CHP): wastewater treatment, biogas production/containment
Switchgear upgrades: generator control retrofit to add load sharing/paralleling capability

Features:
True RMS voltage and current sensing (gen, bus and mains) for reduced susceptibility to harmonics
CAN network communication/control to engine ECU (standard SAE-J1939 protocol and several proprietary engine OEM protocols are supported)
Serial Modbus RTU (slave) communication for SCADA annunciation and external control
Configuration via PC/laptop with Woodward ToolKit service tool
Connectivity with the RP-3200XT Remote Panel for complete annunciation, control and configuration of the easYgen-3200XT controller, over CANopen protocol at up to 250m distance
Compliance agency/marine* approvals: CE, UL/cUL, CSA, BDEW, ABS, Lloyd’s Register (* see marine package for further approvals)

The easYgen-3200XT Series provide:
AMF (automatic mains failure) detection, decoupling and emergency run with dead bus close
Automatic synchronization: phase-match, positive/negative slip-frequency, run-up (dead field) paralleling
Circuit breaker close/open control: GCB only, GCB and MCB (ATS function), or external (no) control
Proportional load sharing (isochronous or droop) of up to 32 gensets, regardless of individual size
Base loading, import/export control, asymmetrical loading (through external base load input)
Automatic load dependent start/stop for improved generation system efficiency
Asynchronous (induction) generator control
Engine and generator protection functions, with fully programmable settings
