F6214 數字處理控制模塊全新原裝

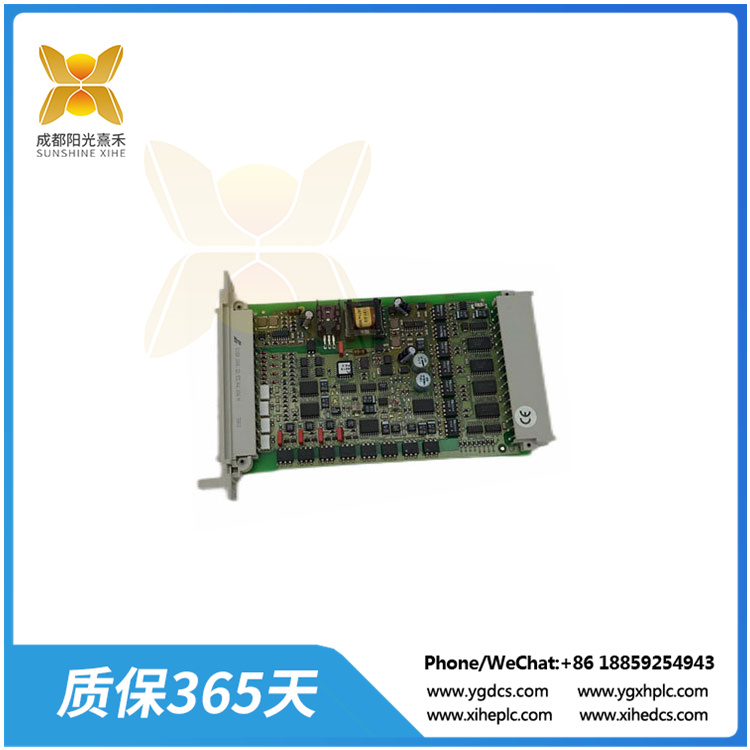

HIMA F6214 數字處理控制模塊

控制系統需要建立信號的輸入和輸出通道，這就是I/O,DCS中的I/O一般是模塊化的，一個I/O模塊上有一個或多個I/O通道，用來連接傳感器和執行器（調節閥）。常用的I/O信號一般分為：AI、PI、AO、DI和DO。AI－－模擬量輸入信號PI－－脈沖量輸入信號AO－－模擬量輸出信號DI－－數字量輸入信號DO–數字量輸出信號

HIMA的HF6214 系統為CPU四重化結構（QMR），即系統的中央控制單元共有四個微處理器，每二個微處理器集成在一塊CU模件上，再由2塊同樣的CU模件構成冗余的中央控制單元。HIMA的1oo2D結構產品就已獲得AK6/SIL3的安全認證。采用雙1oo2D結構，即2oo4D結構的目的是為用戶提供大的實用性（可用性），其容錯功能使得系統中任何一個部件發生故障，均不影響系統的正常運行。與傳統的三重化結構相比，它的容錯功能更加完善。目前，四重化結構的SIS已經成為各專業制造廠商研制開發新系統的主流趨勢。

F6214 系統為模塊化的結構，中央機架部分包括中央單元、通訊模塊和電源模件組成。每個51q系統能夠擴展16個I/O子機架，每個I/O子機架又容納16個I/O模塊。

通信模塊：通信模塊用于連接整個安全控制系統和外部設備，如監視器、計算機、PLC 等。通信模塊支持多種通信協議和接口，如 Modbus、Profibus、CAN 等。

電源模塊：電源模塊提供整個安全控制系統所需的電源和電壓。電源模塊還具有各種保護功能，如過載保護、短路保護等，以確保安全控制系統的穩定和可靠運行。

總的來說 框架提供了一個靈活、可擴展和可配置的平臺，用于組合和管理各種模塊，以實現安全控制和監視。通過使用該框架，可以快速建立安全控制系統，滿足各種應用需求，并提高生產效率和安全性。

F6214 數字處理控制模塊全新原裝

HIMA F6214 digital processing control module

The control system needs to establish the input and output channels of the signal, which is I/O, I/O in DCS is generally modular, an I/O module has one or more I/O channels, used to connect the sensor and the actuator (regulator). Commonly used I/O signals are generally divided into: AI, PI, AO, DI and DO. AI– analog input signal PI– pulse input signal AO– analog output signal DI– digital input signal DO– digital output signal

HIMA’s HF6214 system is a CPU quadruple structure (QMR), that is, the central control unit of the system has a total of four microprocessors, each of which is integrated on a CU module, and then composed of two identical CU modules to form a redundant central control unit. HIMA’s 1oo2D structural products have received AK6/SIL3 safety certification. The purpose of using the double 1oo2D structure, that is, the 2oo4D structure, is to provide users with large practicability (availability), and its fault tolerance function makes the failure of any part in the system without affecting the normal operation of the system. Compared with the traditional triplex structure, its fault-tolerant function is more perfect. At present, SIS with quadruplex structure has become the mainstream trend of the development of new systems by various professional manufacturers.

The F6214 system is a modular structure, and the central rack part consists of a central unit, a communication module and a power module. Each 51q system is capable of expanding up to 16 I/O subracks, each of which accommodates 16 I/O modules.

Communication module: The communication module is used to connect the entire security control system and external devices, such as monitors, computers, PLCS, etc. Communication module supports a variety of communication protocols and interfaces, such as Modbus, Profibus, CAN, etc.

Power module: The power module provides power and voltage for the entire safety control system. The power module also has various protection functions, such as overload protection, short circuit protection, etc., to ensure the stable and reliable operation of the safety control system.

Overall, the framework provides a flexible, extensible, and configurable platform for combining and managing various modules for security control and monitoring. By using this framework, the safety control system can be quickly established to meet the needs of various applications and improve production efficiency and safety.
