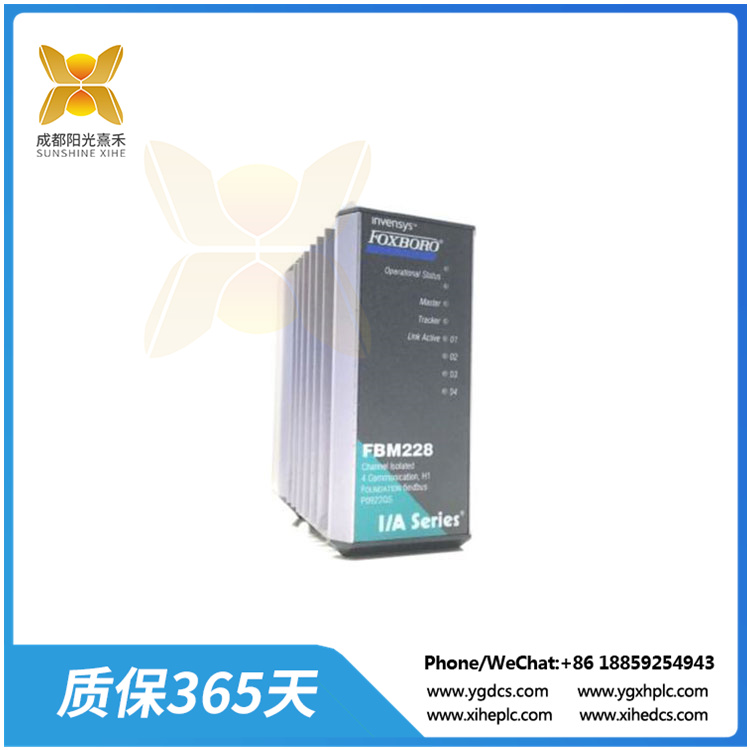

FBM228 現場總線冗余模塊
基金會?現場總線冗余模塊(FBM228)提供了基金會現場總線設備和Foxboro?DCS之間的高容量接口。fbm228支持單路或冗余配置，支持4路h1link，最多可配置64臺現場總線設備。
H1現場總線是一種雙向全數字通信總線，專為過程測量和控制設備的集成而設計。H1總線提供傳統4至20 mA標準的所有優點，同時為控制和系統健康信息提供更大的數據訪問。
FBM228使控制站能夠訪問任何h1b設備中的任何塊參數。使用FOUNDATION現場總線塊，H1設備中的參數在控制站內存中動態更新，并可連接到控制站中的所有其他塊，從而允許輕松構建包含H1功能塊和控制站塊的控制回路。
使用FBM228和Foxboro DCS控制軟件，對于每個控制回路，您可以選擇在現場設備或主機控制站中定位PID塊。復雜的策略可以細分，以便由AI,PID和AO設備塊組成的更快的次級回路在現場運行，而主PID回路和其他復雜塊在主機系統中運行。
FBM228還支持增強的DCI塊集，使控制站能夠訪問H1設備中的塊參數。由offset指定的參數。子索引是資源、傳感器和功能塊中的參數。例如，可以使用這些DCI塊來獲取設備診斷信息，以開發維護和警報策略。
這些模塊包括:
?二進制輸入的BIN
?IIN用于整數值
?RIN為實際輸入
?實際輸出的路由
?PAKIN用于位枚舉參數
?字符串?dāng)?shù)據的字符串FBM228是電氣兼容的標準哈特信號
FBM228 現場總線冗余模塊
The FOUNDATION? Fieldbus Redundant Module (FBM228) provides a highcapacity interface between FOUNDATION fieldbus devices and Foxboro? DCS. TheFBM228, which can be used in single or redundant configurations, supports four H1Links for a maximum of 64 fieldbus devices.
The H1 fieldbus is a bi-directional, all digital communication bus designed for theintegration of process measurement and control devices. The H1 bus provides all thebenefits of the traditional 4 to 20 mA standard, while providing greater data access toboth control and system health information.
The FBM228 enables the control station to access any block parameter in any H1device. With FOUNDATION fieldbus blocks, parameters in the H1 device aredynamically updated in the control station memory and are connectable to all otherblocks in the station, thus allowing easy construction of control loops that contain H1function blocks and control station blocks.
With the FBM228 and Foxboro DCS Control Software, for each control loop you havea choice of locating the PID block in the field device or in the host control station. Complex strategies can be subdivided so that faster secondary loops consisting of AI,PID and AO device blocks run in the field, while the primary PID loop and othercomplex blocks run in the host system.
The FBM228 also supports an enhanced DCI block set that enables the controlstation to access block parameters in an H1 device. The parameters specified byoffset. subindex are the parameters in resource, transducer, and function blocks. These DCI blocks can be used, for example, to source device diagnostic informationfor the development of maintenance and alarm strategies.
The blocks include:
? BIN for binary input
? IIN for integer values
? RIN for real input
? ROUT for real output
? PAKIN for bit-enumerated parameters
? STRIN for string dataThe FBM228 is electrically compatible with standard HARTsignals
