描述

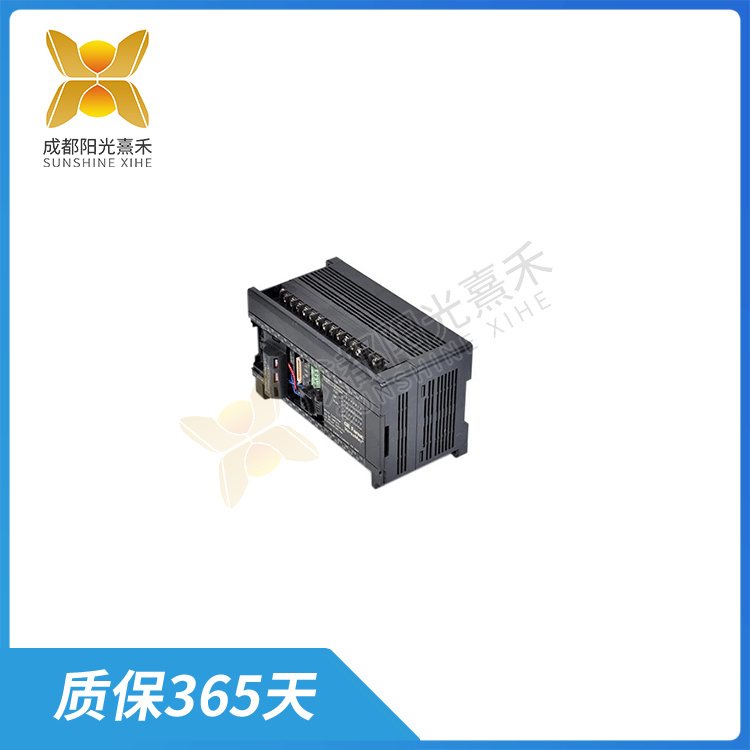

IC200ALG320E? 模擬輸出模塊還用于驅動硬件輸出和相關數據通路

模擬輸出模塊的工作原理是將數字信號轉換為連續變化的模擬信號，如電壓或電流。這種轉換通常是通過脈寬調制（PWM）技術實現的。

在PWM技術中，IC200ALG320E模擬輸出模塊會控制每個周期內高電平和低電平的時間比例，以產生一個介于0到某個最大值（如5V）之間的電壓。例如，Arduino的analogWrite()函數就使用了這種技術，將輸出值映射到相應的PWM脈沖寬度。

模擬輸出模塊還用于驅動硬件輸出和相關數據通路，按照運行方式選擇當前的設定值，并可根據需要反向并提供結果給硬件輸出或軟件輸出。模塊可以設置為CAS_IN和RCAS_IN自動方式。SP經選擇器（SPSELECTOR）對CASIN、SPLOCAL（本機設定）和RCASIN以及反饋值進行選擇后輸出設定值。

此外，模擬輸出模塊還廣泛應用于PLC（可編程邏輯控制器）中。PLC的模擬輸出模塊具有輸入量和輸出量兩個部分，可以實現與內部信號的相互聯系。模擬輸出模塊的采樣和濾波也是一個重要部分，它可以幫助模塊過濾掉雜散的信號，并把輸入信號降低到接受閾值以下，從而確保獲取的信號的精度和穩定性。

總的來說，IC200ALG320E模擬輸出模塊是通過數字信號控制模擬信號輸出的設備，廣泛應用于工業自動化、機器人控制、電子設備等領域。其工作原理主要基于PWM技術和采樣濾波技術，具有高精度、高穩定性、高可靠性等特點。

IC200ALG320E? 模擬輸出模塊還用于驅動硬件輸出和相關數據通路

The analog output module works by converting a digital signal into a continuously varying analog signal, such as a voltage or current. This conversion is usually achieved through pulse width modulation (PWM) technology.

In PWM technology, the IC200ALG320E analog output module controls the proportion of time between high and low levels during each cycle to produce a voltage between 0 and a maximum value, such as 5V. For example, Arduino’s analogWrite() function uses this technique to map the output value to the corresponding PWM pulse width.

The analog output module is also used to drive the hardware output and the related data path, select the current set value according to the operation mode, and can reverse and provide the result to the hardware output or the software output as needed. Modules can be set to CAS_IN and RCAS_IN automatic mode. SP outputs the set value after selecting the CASIN, SPLOCAL (local setting) and RCASIN and the feedback value by the SPSELECTOR.

In addition, the analog output module is also widely used in PLC (Programmable logic controller). The analog output module of PLC has two parts: input quantity and output quantity, which can realize the mutual contact with internal signal. The sampling and filtering of the analog output module is also an important part, which can help the module filter out stray signals, and reduce the input signal below the acceptance threshold, so as to ensure the accuracy and stability of the obtained signal.

In general, the IC200ALG320E analog output module is a device that controls analog signal output through digital signals, which is widely used in industrial automation, robot control, electronic equipment and other fields. Its working principle is mainly based on PWM technology and sampling and filtering technology, which has the characteristics of high precision, high stability and high reliability.
