描述

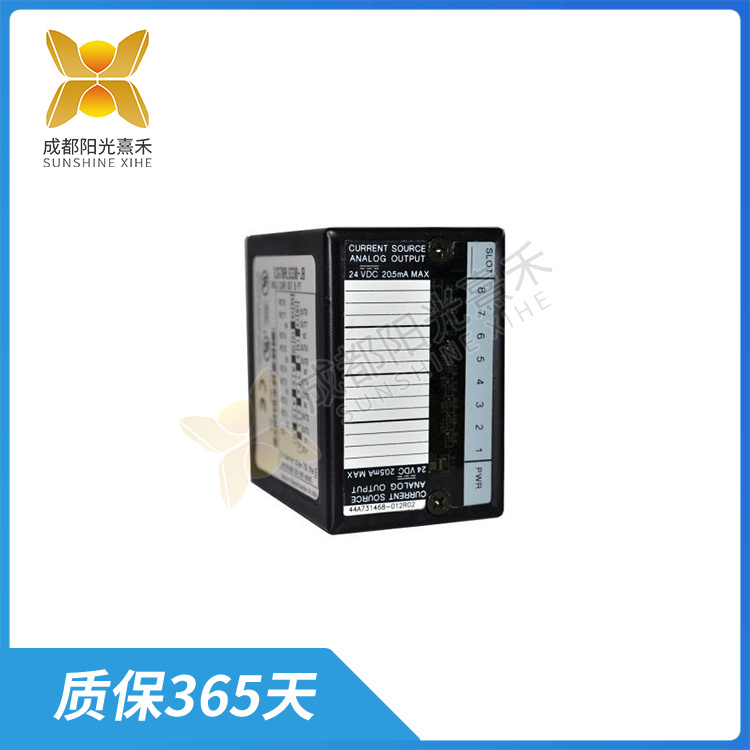

IC670ALG330 GE 現場控制I/O模塊

IC670ALG330是GE Fanuc提供的一款總線接口單元，具體為一個8點模擬電流源輸出模塊。

它的主要功能是從總線接口接收工程單元輸出數據單元（BIU），并根據其校準和配置的縮放參數來縮放該數據。然后，這個數據會被轉換為0mA到大約20.48mA范圍內的輸出電流。如果縮放后的數據低于數模轉換器的最小極限，模塊將輸出電流設置為0mA；如果高于最大限制，則輸出電流會被設置為約20.48mA。

此外，IC670ALG330模塊還具有多種警報功能，如超出/低于范圍警報和開路警報等。這些警報功能可以幫助用戶及時發現和處理可能出現的問題，保證系統的正常運行。

在數據交換方面，IC670ALG330模塊采用與其他類型的總線接口單元相同的方式與BIU進行交換。當BIU請求時，它會提供所有輸入數據和狀態位，同時接收來自BIU的故障清除命令和模擬輸出數據。此外，模塊還可以配置為與BIU或其他同一現場控制站中的智能設備進行組數據傳輸。

需要注意的是，IC670ALG330模塊必須與2.0版或更高版本的總線接口單元一起使用，以保證其正常工作和兼容性。

總的來說，IC670ALG330是一款功能強大、應用廣泛的總線接口單元，適用于各種工業自動化和控制系統。在選擇和使用時，需要根據實際需求和應用場景進行考慮和配置。同時，為了確保模塊的正常工作和可靠性，需要遵守相關的安全規定和操作規程。

IC670ALG330 GE 現場控制I/O模塊

The IC670ALG330 is a bus interface unit provided by GE Fanuc, which is specifically an 8-point analog current source output module.

Its main function is to receive the engineering unit output Data Unit (BIU) from the bus interface and scale that data according to its calibrated and configured scaling parameters. This data is then converted into an output current in the range of 0mA to approximately 20.48mA. If the scaled data is lower than the minimum limit of the ADC, the module sets the output current to 0mA; If it is higher than the maximum limit, the output current is set to approximately 20.48mA.

In addition, the IC670ALG330 module also has a variety of alarm functions, such as out of range alarm and open circuit alarm. These alarm functions can help users discover and deal with possible problems in time to ensure the normal operation of the system.

In terms of data exchange, the IC670ALG330 module exchanges with the BIU in the same way as other types of bus interface units. When requested by the BIU, it provides all input data and status bits, while receiving troubleshooting commands and analog output data from the BIU. In addition, the module can be configured for group data transfer with the BIU or other smart devices in the same field control station.

It should be noted that the IC670ALG330 module must be used with the bus interface unit version 2.0 or later to ensure its normal operation and compatibility.

Overall, the IC670ALG330 is a powerful and widely used bus interface unit for a variety of industrial automation and control systems. When selecting and using the device, you must consider and configure the device based on actual requirements and application scenarios. At the same time, in order to ensure the normal operation and reliability of the module, it is necessary to comply with the relevant safety regulations and operating procedures.
