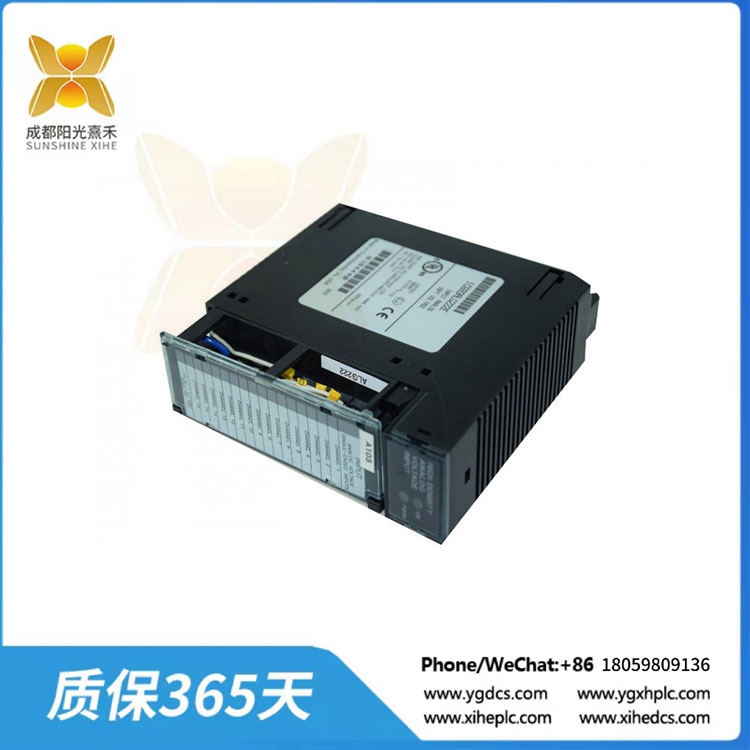

IC693ALG222E 16通道模擬電壓輸入模塊

產品描述
IC693ALG222是GE發那科90-30系列的16通道模擬電壓輸入模塊。該PLC將提供16個單端或8個差分輸入通道。模擬輸入具有易于使用的配置軟件2個輸入范圍:從-10到+10和0到10伏。該模塊將模擬信號轉換為數字信號。IC693ALG222接收單極和雙極兩個輸入信號。單極信號范圍從0到+10V，而雙極信號范圍從-10V到+10V。該模塊可以在90-30可編程控制系統中的任何I/O插槽中設置。模塊上將安裝連接器塊，用于連接用戶設備。

IC693ALG222支持單端通道(1 ~ 16通道)和差動通道(1 ~ 8通道)。該模塊的功率要求是來自5V總線的112mA，并且需要來自24V直流電源的41V來為轉換器供電。兩個LED指示燈反映用戶電源的狀態和模塊的狀態。這兩個led是MODULE OK，它給出了關于上電的狀態，POWER SUPPLY OK，它檢查電源是否高于最低要求水平。IC693ALG222模塊可以通過邏輯主編程軟件配置，也可以通過手持編程配置。如果用戶選擇通過手持編程對模塊進行編程，則只能編輯活動通道，不能編輯活動掃描通道。該模塊使用%AI數據表記錄模擬信號，供可編程邏輯控制器使用。

技術規格
編號. 通道:1 ~ 16路單端或1 ~ 8路差分
輸入電壓范圍:0 ~ +10V或-10 ~ +10V
校準:工廠校準到:2.5mV每計數或5mV每計數
更新速率:6毫秒(全部16)或3毫秒(全部8)
輸入濾波器響應:41hz或82hz
功耗:112ma從+5VDC總線或41mA從+ 24vdc總線

IC693ALG222E 16通道模擬電壓輸入模塊

Product description
The IC693ALG222 is a 16-channel analog voltage input module in the GE Fanuc 90-30 series. The PLC will provide 16 single-ended or 8 differential input channels. Analog inputs feature easy-to-use configuration software for 2 input ranges: from -10 to +10 and 0 to 10 volts. The module converts analog signals to digital signals. IC693ALG222 receives both unipolar and bipolar input signals. The unipolar signal ranges from 0 to +10V, while the bipolar signal ranges from -10V to +10V. The module can be set in any I/O slot in a 90-30 programmable control system. A connector block will be installed on the module to connect user devices.

IC693ALG222 supports single-ended channels (1 to 16 channels) and differential channels (1 to 8 channels). The module’s power requirement is 112mA from the 5V bus, and 41V from the 24V DC supply is required to power the converter. Two LED indicators reflect the status of the user’s power supply and the status of the module. The two leds are MODULE OK, which gives the status regarding power-on, and POWER SUPPLY OK, which checks if the power supply is above the minimum required level. The IC693ALG222 module can be configured through logic programming software or hand-held programming. If the user chooses to program the module through handheld programming, only the active channels can be edited, not the active scan channels. The module uses %AI data tables to record analog signals for use by programmable logic controllers.

Technical specification
Channel :1 to 16 single-ended or 1 to 8 differential channels
Input voltage range :0 ~ +10V or -10 ~ +10V
Calibration: Factory calibration to :2.5mV per count or 5mV per count
Update rate :6 ms (all 16) or 3 ms (all 8)
Input filter response :41hz or 82hz
Power consumption :112ma from +5VDC bus or 41mA from + 24vdc bus
