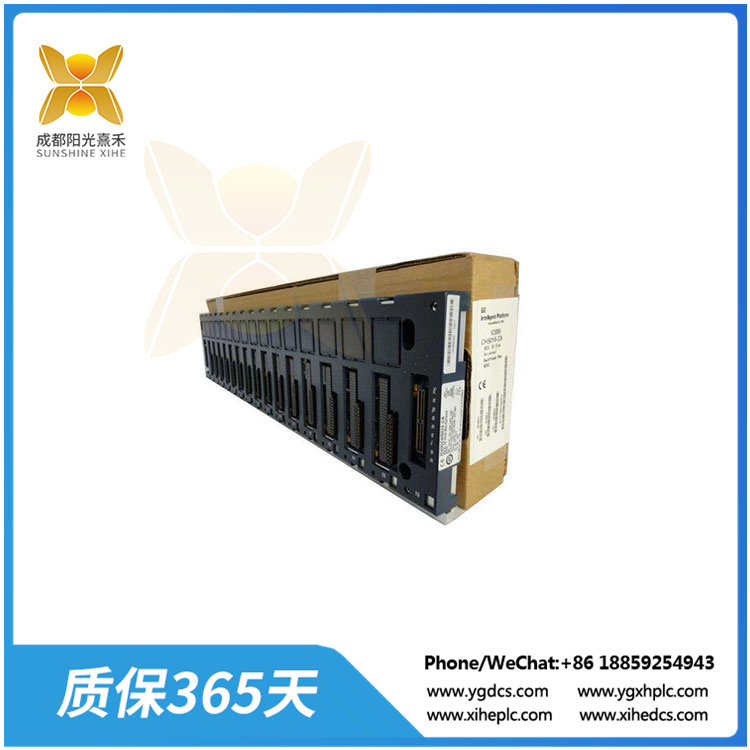

IC695CHS016 PACSystem RX3i通用背板
IC695CHS016是一款PACSystem RX3i通用背板，以前由GE智能平臺(GE IP)生產，現在屬于艾默生自動化。該背板有12個插槽，支持安裝基于pci的RX3i和系列90-30 I/O和可選模塊。它有一個雙母線背板，只支持水平安裝方向。該背板具有隔離的24VDC輸入和額定電流，在3.3 VDC為600 mA，在5 VDC為240 mA。
IC695CHS016是十六(16)槽通用背板，是PAC系統RX3i可編程自動化控制器(PAC)系列的一部分。艾默生自動化的這款背板用于承載通用控制器和I/O基本模塊，并集成支持外圍組件互連(PCI)和高速串行總線，從而支持RX3i模塊以及傳統的90-30系列PLC系列。
IC695CHS016的尺寸為23.7 (w) × 5.57 (h) × 5.80 (d)或601.98 (w) × 141.5 (h) × 147.32 (d)，功耗為600ma @ 3.3 VDC和240ma @ 5vdc，由RX3i電源提供。該底板還支持模塊熱插拔，這有助于系統的可用性和易于維護。
IC695CHS016背板也被一些人稱為機箱、機架或底板。無論使用什么術語，IC695CHS016提供與背板的模塊連接，配電和每個模塊的內部通信。此外，該底板具有本地擴展底座互連所需的接口，允許安裝額外的模塊并連接到由IC695CHS016托管的同一總線。
IC695CHS016僅支持水平安裝。它帶有一個端子帶，用于隔離24 VDC輸入和隔離地的接線。建議至少固定在NEMA/UL Type 1或IP20 (IEC60529)外殼的子面板上。必須遵循最小安裝間隙，以允許自然空氣冷卻。背板兩側的最小安裝間隙為102mm或4英寸。
IC695CHS016是一款通用背板，有16個槽位和一個端子帶，用于隔離輸入。背板由GE發那科制造，是RX3i PACSystem系列工業PLC組件的一部分，背板包括一個串行擴展連接器和一個接地點以及接地排。該背板與基于PCI的IC694線、可選模塊和IC695組件的串行I/O組件兼容。IC695CHS016背板需要102毫米(4英寸)的最小間隙才能獲得最佳性能，并且適合水平安裝。IC695CHS016通用背板的輸入電壓為+24伏，5伏直流時的內部功率為240毫安，3.3伏直流時的內部功率為600毫安。當安裝在機箱內時，背板的防護等級可以從IP 20到IP 54，具體取決于背板的使用位置。
GE IC695CHS016是安裝在機架上的機箱背板，其可靠性極高。除上述部件外，IC695CHS016背板還支持cpu、電源、串口擴展模塊等部件。應該提到的是，有些組件需要多個插槽，例如交流電源單元需要2個空插槽。這意味著每個單獨的插槽可以配置為特定的模塊，而像IC695CHS016這樣的背板是涉及許多組件的高性能系統的理想平臺。背板由耐用材料制成，其外殼尺寸如下:141.4 x 602 x 147.3毫米(5.5 x 23.7 x 5.8英寸)。
IC695CHS016 PACSystem RX3i通用背板
The IC695CHS016 is a PACSystem RX3i Universal backplane that is formerly manufactured by GE Intelligent Platforms (GE IP) now under Emerson Automation. This backplane has Twelve (12) slots and supports installation of PCI-based RX3i and Series 90-30 I/O and option modules. It has a dual-bus backplane and supports horizontal mounting orientation only. This backplane has isolated 24VDC input and current rating of 600 mA at 3.3 VDC, 240 mA at 5 VDC.
The IC695CHS016 is a Sixteen (16) slot universal backplane that is part of the PACsystem RX3i Programmable Automation Controller (PAC) series. This backplane from Emerson Automation is used to host Universal controller and I/O base modules and comes with integral support for Peripheral Component Interconnect (PCI) and High-speed serial bus, enabling support for RX3i modules as well as the legacy Series 90-30 PLC series.
The IC695CHS016 measures 23.7 (w) x 5.57 (h) x 5.80 (d) or 601.98 (w) x 141.5 (h) x 147.32 (d)) and consumes 600 mA @ 3.3 VDC and 240 mA @ 5 VDC that is supplied by the RX3i power supply. This baseplate also supports hot-swapping of modules, which contributes to the availability of the system and ease of maintenance.
The IC695CHS016 backplane may also be termed as chassis, rack or baseplate by some personnel. Whatever term is used, the IC695CHS016 provides module connectivity to the backplane, power distribution and hosts internal communication of each module. Additionally, this baseplate has the necessary interface for interconnection of local expansion base, allowing additional module to be installed and connect to the same bus that is hosted by the IC695CHS016.
The IC695CHS016 support horizontal mounting only. It comes with a terminal strip for wiring of the isolated 24 VDC input and the isolated ground as well. It is recommended to be fastened to the subpanel of an enclosure rated NEMA/UL Type 1 enclosure or an IP20 rating (IEC60529) at least. Minimum installation clearance must be followed to allow natural air cooling. Required minimum mounting clearance is 102 mm or 4 inches on all sides of the backplane.
The IC695CHS016 backplane is a universal backplane that has 16 slots and a terminal strip for the isolated inputs. The backplane is manufactured by GE Fanuc and it is part of the RX3i PACSystem series of industrial PLC components The backplane includes a connector for serial expansion and a grounding point along with a grounding bar. The backplane is compatible with serial I/O components with from the IC694 line, option modules, and IC695 components which are based on PCI. The IC695CHS016 backplane requires a minimum clearance of 102 millimeters (4 inches) for best performance and it is made for horizontal mounting. The IC695CHS016 universal backplane has an input voltage of +24 Volts and an internal power of 240 milliamps at 5 Volts DC while its internal power is 600 milliamps at 3.3 Volts DC. When installed within an enclosure, the backplane can have a protective rating from IP 20 up to IP 54, depending on where the backplane is used.
The GE IC695CHS016 backplane is made to be installed in a rack and it is extremely reliable if it is installed properly. Besides the previously mentioned component types, the IC695CHS016 backplane accepts components like CPUs, power supply modules, and serial expansion modules. It should be mentioned that there are components that require more than one slot, like an AC power supply unit that requires 2 empty slots. This means that each individual slot can be configured for a specific module and a backplane like the IC695CHS016 backplane is an ideal platform for high-performance systems that involve many components. The backplane is made from durable materials and it has a housing that includes the following dimensions: 141.4 x 602 x 147.3 millimeters (5.5 x 23.7 x 5.8 inches).
