描述

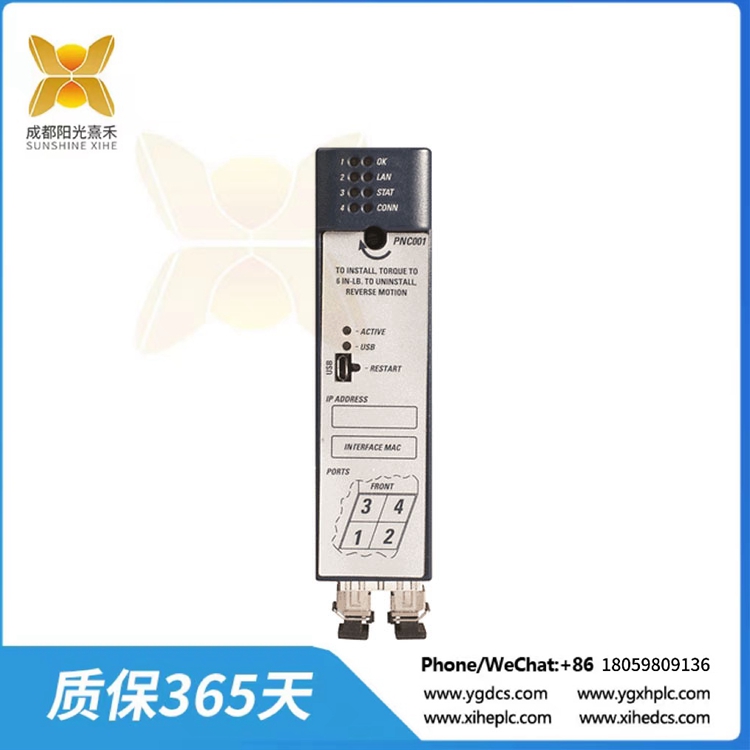

IC695PNC001AF PROFINET控制器模塊

IC695PNC001AF是PROFINET控制器模塊。該模塊以前由GE智能平臺公司(GE IP)生產，現在由艾默生自動化公司生產。該PROFINET控制器使RX3i CPU能夠通過PROFINET網絡發送和接收數據。

IC695PNC001AF兼容PACSystem RX3i CPU315或CPU320，固件版本為7.0及以上。該模塊帶有兩(2)個RJ-45和兩(2)個SFP插槽，SFP連接器單獨出售。這些PROFINET端口只能分配一個IP地址。最多4個IC695PNC001可以安裝在單個CPU上，并且只能安裝在CPU所在的主機架上。多達六十四(64)個I/O設備可以連接到一個(1)控制器;每個網絡128個I/O設備，分布在8個I/O控制器中。此外，在單個網絡中最多可以安裝8個I/O設備。該模塊具有1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, 256 ms和512 ms的可配置數據更新時間。

IC695PNC001AF可在電源下插拔(RIUP)。不安裝SFP光模塊時，占用機箱單個槽位，最大電流為0.5 a;安裝2個SFP光模塊時，最大電流為1.2 a，其中一個SFP光模塊的電流為0.35 a。在5.5 VDC時，模塊最大輸出1.5 A。

除了嵌入式雙PROFINET端口，該模塊還配備了一個微型USB連接器，用于使用命令行接口與計算機通信。它必須在0-60攝氏度的溫度范圍內工作。

IC695PNC001AF控制器是由GE智能平臺/GE發那科PACSystems制造的PROFINET控制器，是RX3i系列的一部分。該PROFINET控制器模塊有助于將RX3i PacSystems系列中的控制器連接到高速PROFINET LAN。它的一些值得注意的規范包括單個插槽，僅支持通用背板，以及PROFINET 2.2通用a類網絡評級。它在5伏直流時的內部功率為1.5安培，在3.3伏直流額定電壓下的內部功率為0.5安培。IC695PNC001 PROFINET控制器模塊的工作溫度范圍為0至60攝氏度，但根據PNC001的位置和SFP的數量，可能需要更低的溫度。該模塊有1個微型USB接口，通過命令行接口與計算機通信。它還具有2個SFP保持架和2個RJ-45端口連接器，但SFP設備可以單獨購買。

IC695PNC001AF RX3i PacSystems PROFINET控制器或PNC的主要功能包括通過使用WinLoader軟件實用程序進行固件升級?？刂破鬟€具有內置的命令行接口功能，通過使用telnet或通過微型USB端口提供部分配置和直接監控。它還支持環形、星形和菊花線/鏈狀網絡拓撲。IC695PNC001 PNC的其他功能是與RX3i CPU匹配的內部時鐘，用于時間戳的診斷。它還有一個重啟按鈕，可以手動重啟PROFINET控制器，而無需啟動整個系統。此PNC上的USB端口僅用于設置系統和診斷目的。

IC695PNC001AF PROFINET控制器模塊

The IC695PNC001AF is a PROFINET controller module. This module is manufactured previously by GE Intelligent Platforms (GE IP), now by Emerson Automation. This PROFINET controller enables an RX3i CPU to send and receive data over PROFINET network.

The IC695PNC001AF is compatible for use with PACSystem RX3i CPU315 or CPU320, with firmware version 7.0 or higher. This module comes with Two (2) RJ-45 and Two (2) SFP slots with SFP connectors separately sold. Only One IP address is assigned for these PROFINET ports. Up to Four (4) IC695PNC001 can be installed along a single CPU and must located to the to the main rack only, where the CPU resides. Up to Sixty-Four (64) I/O devices can be connected to One (1) controller; 128 I/O device per network, distributed among Eight (8) I/O controllers. Additionally, up to Eight (8) I/O devices can be installed in a single network. This module has configurable data update times of 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, 256 ms and 512 ms.

The IC695PNC001AF can be Removed and Inserted Under Power (RIUP). It occupies a single slot of the chassis and draws 0.5 A without SFP devices installed and maximum of 1.2 A maximum with Two (2) SFP devices installed where an SFP device uses 0.35 A. At 5.5 VDC, the module draws 1.5 A, maximum.

Aside from the embedded dual PROFINET ports, this module also comes with a micro USB connector that is used for communicating with a computer using Command Line Interface. It must be operated at a temperature range of 0-60 Degree Celsius.

The IC695PNC001AF controller is a PROFINET controller manufactured by GE Intelligent Platforms/GE Fanuc PACSystems as part of the RX3i series. This PROFINET controller module helps to connect the controllers in the RX3i PacSystems series to a high-speed PROFINET LAN. Some of its notable specifications include a single slot, support for only universal backplanes, and PROFINET 2.2 General Class A network ratings. It operates on an internal power of 1.5 Amps at 5 Volts DC or 0.5 Amps at a rated voltage of 3.3 Volts DC. The IC695PNC001 PROFINET controller module has an operating temperature range of 0 to 60 degrees Celsius, but lower temperatures may be needed depending on the PNC001 location and the population of SFP. This module has 1 micro USB connector for communication with the computer through the command-line interface. It also features 2 SFP cages and 2 RJ-45 port connectors, but the SFP devices can be acquired separately.

The main features of the IC695PNC001AF RX3i PacSystems PROFINET controller or PNC include firmware upgrades through the use of the WinLoader software utility. The controller also has a built-in command-line interface functionality that provides partial configuration and direct monitoring by using the telnet or through a micro USB port. It also has support for ring, star, and daisy-line/chain network topologies. Other features of the IC695PNC001 PNC are an internal clock matched with an RX3i CPU for diagnostics that are time-stamped. It also features a restart pushbutton that restarts the PROFINET controller manually without having to power cycle the whole system. The USB port on this PNC is designed for setting up the system and for diagnostic purposes only.
