描述

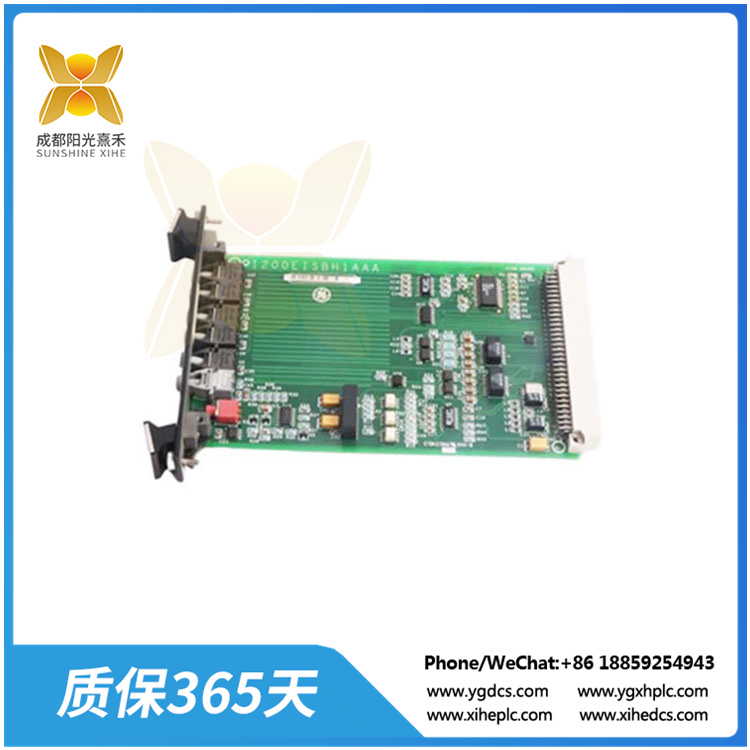

IS200EISBH1AAC Mark VI電路板

產品描述
IS200EISBH1AAC是GE Mark VI電路板。該板通常用于EX2100勵磁模塊中作為激振器ISbus板。該委員會負責管理其內閣內的光纖通信。

IS200EISBH1AAC的前面板，包括兩個固定銷鎖定板到位，一旦它已經安裝在機架系統。這些都標有板id號和通用電氣的標志。在這些之間，板有一個開口訪問復位開關(實際上位于板的表面)和幾個光纖連接器。光纖連接器上標有“根場電壓和電流”、“激勵器電壓和電流”和“接地檢測輸入和輸出”。面板用螺絲連接到電路板上。

電路板上標有幾個代碼和條形碼。它是沿著它的邊緣在幾個地方進行的工廠鉆孔。單板上還印有GE公司的標志。

組件用引用指示符進行標記。這塊電路板上有20多個集成電路。它有電感線圈、電阻、電容、幾個晶體管和二極管，以及前面提到的復位開關。該板還具有兩個小型變壓器和一個背板連接器，用于光纖反饋信號的輸入和輸出。

有關IS200EISBH1AAC電路板的更多信息，請參閱通用電氣的出版物，如原始手冊或數據表。如果這些產品不再提供給您，axcontrol可以在您的訂單中為您提供替換產品。

IS200EISBH1AAC Mark VI電路板

Product Description
The IS200EISBH1AAC is a GE Mark VI circuit board. ? The board is typically used in EX2100 excitation modules as an Exciter ISbus board. ? This board is responsible for managing fiber-optic communications within its cabinet.

The IS200EISBH1AAC is built with a front faceplate that includes two set pins that lock the board into place once it has been installed in the rack system. ? These are marked with the board id number and with the General Electric logo. ? In between these, the board has an opening to access a reset switch (actually located on the board’s surface) and several fiber-optic connectors. ? The fiber optic connectors are labeled ?Gen Field voltage and current, Exciter voltage and current, and Ground Detect In and Out. ? The faceplate connects to the circuit board using screws.

The circuit board is marked with several codes and barcodes. ? It is factory-drilled along its edge in several locations. ? The board is also marked with the GE logo.

Components are marked with reference designators. ? ? The board has over twenty integrated circuits. ? It has inductor coils, resistors, capacitors, several transistors, and diodes, as well as the aforementioned reset switch. ? The board also has two small transformers and a single backplane connector that is used for both inputs and outputs of fiber-optic feedback signals.

For more information about the IS200EISBH1AAC circuit board, please refer to publications from General Electric, like original manuals or data sheets. ? If these products are no longer available to you, AX Control may be able to provide you with replacements along with your order.
