描述

IS200VTCCH1CBB 熱電偶輸入板

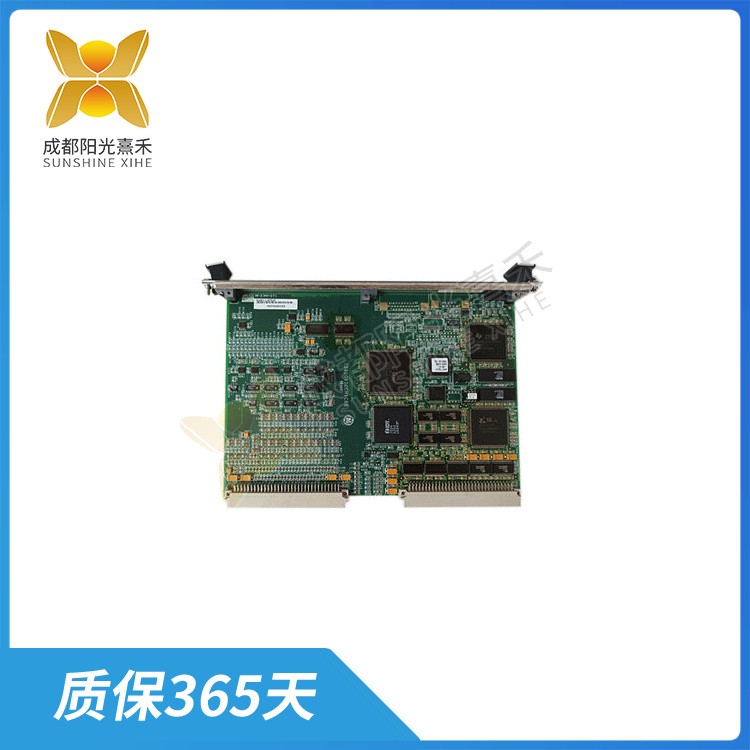

IS200VTCCH1CBB是通用電氣（GE）為其Mark VI系統設計的熱電偶輸入板。Mark VI系統主要用于燃?xì)廨啓C(jī)和蒸汽輪機的管理。這款熱電偶輸入板具有多種功能和特點：

1. 熱電偶支持：IS200VTCCH1CBB能夠接受E、J、K、S和T型熱電偶的輸入。這些熱電偶可以接地或不接地，距離控制柜最遠可達300米。
2. 輸入能力：它最多可以接受24個熱電偶輸入，這些輸入可以連接到DTTC或TBTC端子板。DTTC端子板為DIN歐碼端子板，而TBTC端子板為配套端子板。
3. 連接和通信：該板通過螺絲連接到PCB（印刷電路板），并具有六個連接器，包括兩個背板和四個由導電跡線和點創建的連接器。
4. 電路組成：IS200VTCCH1CBB由數百個電阻器、電容器、電感線圈/磁珠、測試點、二極管和集成電路組成。此外，它還具有TP測試點。
5. 應用領域：這款輸入板通常用于燃?xì)廨啓C(jī)控制應用，是Mark VI VME通信板的一部分，用于實現與其他設備、模塊或控制器之間的通信和數據交換。

總的來說，IS200VTCCH1CBB是一款功能強大、高度靈活的熱電偶輸入板，適用于各種燃?xì)廨啓C(jī)和蒸汽輪機的控制和管理應用。在選擇和使用該板時，建議參考制造商提供的產品手冊、技術文檔或咨詢相關領域的專家，以確保其正確、安全和有效的應用。

IS200VTCCH1CBB 熱電偶輸入板

The IS200VTCCH1CBB is a thermocouple input board designed by General Electric (GE) for its Mark VI system. The Mark VI system is mainly used for the management of gas and steam turbines. This thermocouple input board has a variety of functions and features:

Thermocouple support: IS200VTCCH1CBB is capable of accepting input from type E, J, K, S and T thermocouples. These thermocouples can be grounded or ungrounded and can be up to 300 meters from the control cabinet.

Input capability: It can accept up to 24 thermocouple inputs, which can be connected to DTTC or TBTC terminal boards. The DTTC terminal board is a DIN Euro code terminal board, and the TBTC terminal board is a matching terminal board.

Connection and communication: The board is connected to the PCB (printed circuit board) by screws and has six connectors, including two backplanes and four connectors created by conductive traces and points.

Circuit composition: The IS200VTCCH1CBB consists of hundreds of resistors, capacitors, inductors/beads, test points, diodes and integrated circuits. In addition, it has TP test points.

Application Area: Commonly used in gas turbine control applications, this input board is part of the Mark VI VME communication board for communication and data exchange with other devices, modules or controllers.

Overall, the IS200VTCCH1CBB is a powerful and highly flexible thermocouple input board for control and management applications in a wide range of gas and steam turbines. When selecting and using the board, it is recommended to refer to the product manual, technical documentation provided by the manufacturer or consult experts in the relevant field to ensure its correct, safe and effective application.
