描述

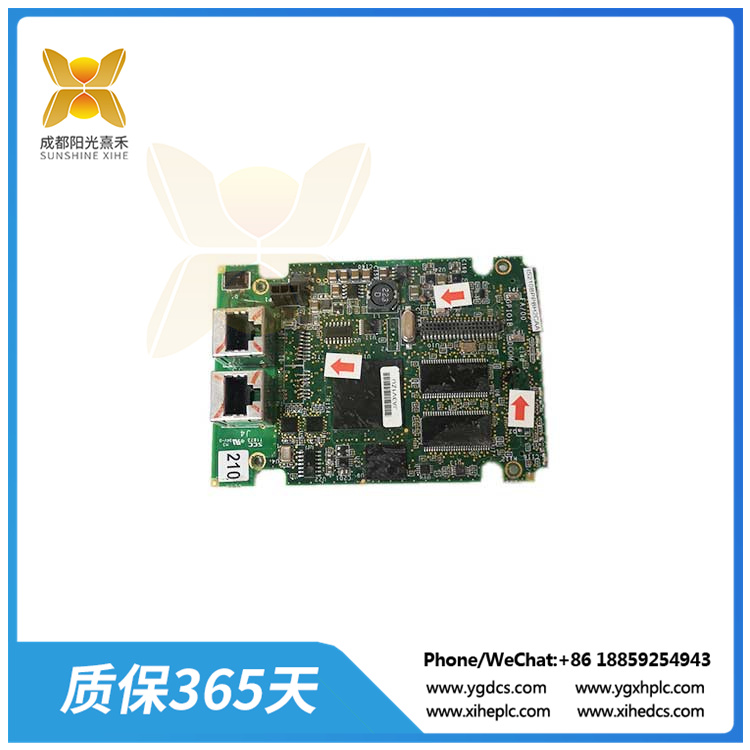

產品細節說明：IS200TSVCH2AED MRP246517 GE 數字I/O模塊

IS210BPPBH2CAA是GE Mark VI IS200系統的一部分，專為蒸汽輪機和燃?xì)廨啓C(jī)原動機設計。

1. 系統集成：
   • 當安裝在渦輪機控制系統中時，它位于主控制模塊中，并可能與備用保護模塊一起使用。
   • 在主控制模塊中，提供多種軟件維護工具，包括保護算法、排序和I/O顯示等功能。
2. 操作界面：
   • 配有一個操作員界面，被稱為HMI（人機界面）。
   • 該界面基于微軟視窗NT個人電腦操作系統，支持圖形顯示系統、客戶/服務器功能、軟件界面和控制系統工具箱。
3. 處理器配置：
   • 當用于TMR（三模冗余）系統時，有三個處理器卡。
   • 處理器卡用于在BPPB板和安裝在VME機架上的其他板之間執行渦輪機應用軟件。

綜上所述，IS210BPPBH2CAA是一款功能強大、可靠性高的印刷電路板，專為Mark VI渦輪機控制系統設計，能夠滿足蒸汽輪機和燃?xì)廨啓C(jī)原動機的復雜控制需求。

產品詳情參數 ：IS200TSVCH2AED MRP246517 GE 數字I/O模塊

• 用途：用于Mark VI渦輪機控制系統，設計為印刷電路板。
• 渦輪原動機兼容性：適用于蒸汽渦輪或燃?xì)鉁u輪。
• 主要部件：包含八個母插頭連接器，連接器的插腳數量范圍從兩個到十八個。
• 其他元件：板上左側有一行六個金屬氧化物變阻器。

IS200TSVCH2AED MRP246517應用領域：

適用于大型控制系統，可支持具有TMR或單工冗余的Mark VI系統。

Product details: IS200TSVCH2AED MRP246517 GE Digital I/O Module

IS210BPPBH2CAA is a part of the GE Mark VI IS200 system designed specifically for steam and gas turbine prime movers.

System integration:
When installed in the turbine control system, it is located in the main control module and may be used in conjunction with the backup protection module.
In the main control module, various software maintenance tools are provided, including protection algorithms, sorting, and I/O display functions.
Operation interface:
Equipped with an operator interface called HMI (Human Machine Interface).
This interface is based on the Microsoft Windows NT personal computer operating system and supports graphical display systems, client/server functions, software interfaces, and control system toolboxes.
Processor configuration:
When used in a TMR (the third mock examination Redundancy) system, there are three processor cards.
The processor card is used to execute turbine application software between the BPPB board and other boards installed on the VME rack.

In summary, IS210BPPBH2CAA is a powerful and highly reliable printed circuit board designed specifically for Mark VI turbine control systems, capable of meeting the complex control needs of steam and gas turbine prime movers.

IS210BPPBH2CAA
Product details parameters: IS200TSVCH2AED MRP246517 GE digital I/O module
Usage: Used in Mark VI turbine control systems, designed as a printed circuit board.
Compatibility of turbine prime movers: suitable for steam or gas turbines.
Main components: Includes eight female plug connectors, with a range of two to eighteen pins.
Other components: There is a row of six metal oxide varistors on the left side of the board.

IS200TSVCH2AED MRP246517 Application areas:

Suitable for large control systems, it can support Mark VI systems with TMR or simplex redundancy.
