描述

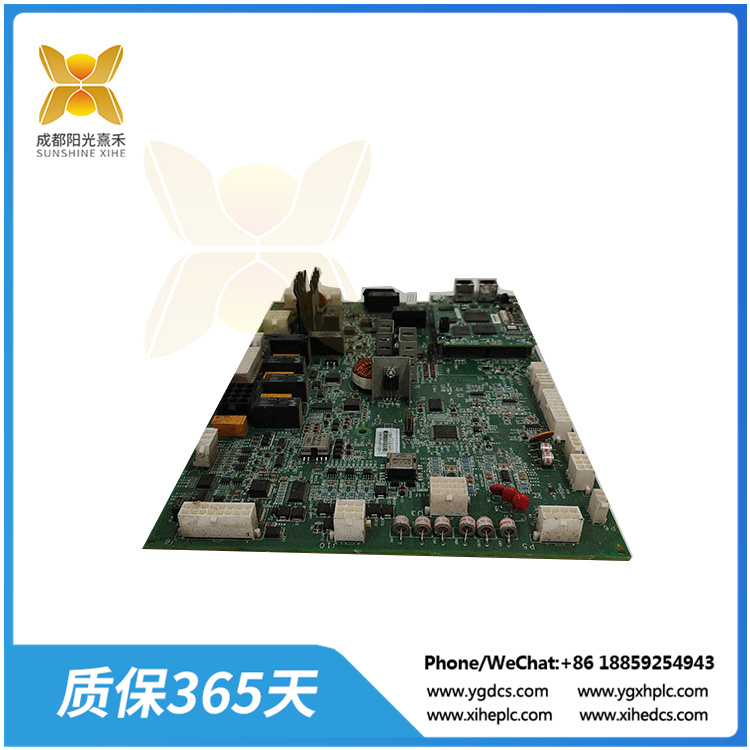

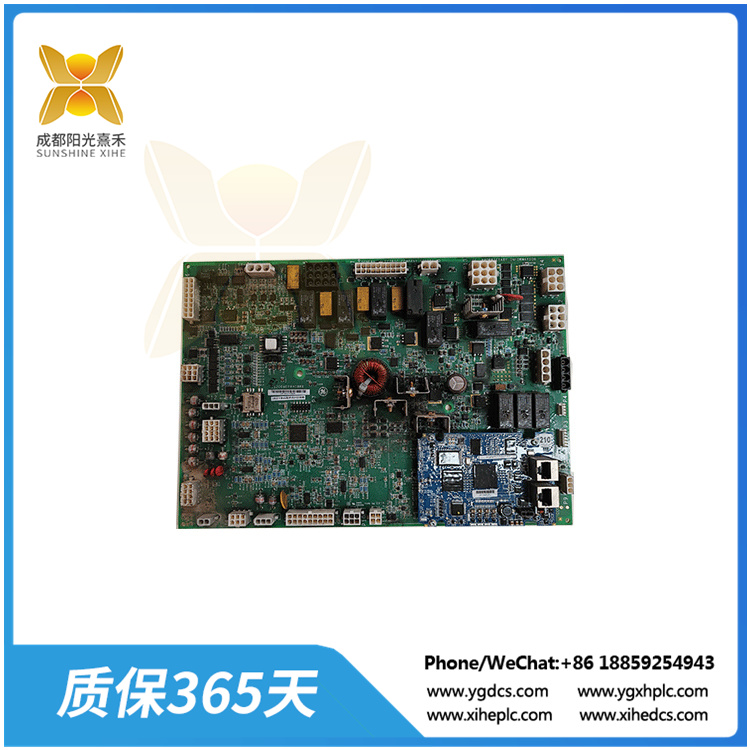

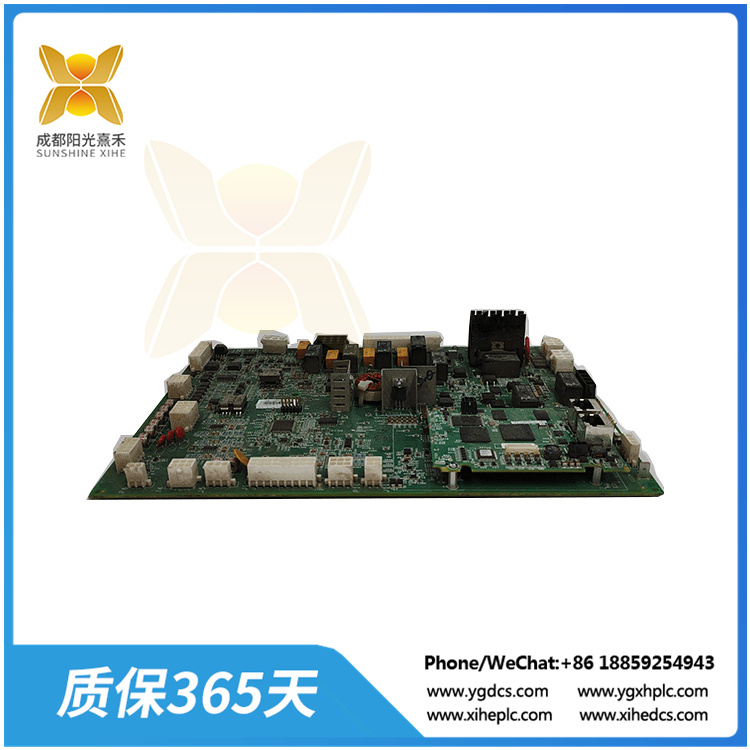

IS210BPPCH1AD Mark VI 印刷電路板

產品描述
IS210BPPCH1AD電路板是通用電氣的I/O包處理器板。這是幾個BPPC板可在AX控制的庫存之一，每一個都有微小的變化。這些板被設計用于各種I/O包，適合GE的Mark VIe渦輪機控制系統。請注意，這些注釋是為類似的Mark VIeS系統設計的。

IS210BPPCH1AD板的每個角都是工廠鉆孔的。該板安裝到一個更大的電路板使用支架與螺絲安裝。螺桿安裝靠近沿長板兩側的圓形切口。

IS210BPPCH1AD是一個雙面板，使用SMT技術，允許最大限度地利用空間。電路板的頂部包括兩個以太網端口，一個小型電感或扼流圈，二極管，電阻，電容，晶體管和多個集成電路。它也有幾個電阻網絡陣列。底面主要由電容器、電阻器和二極管占據。

請參考GE手冊，確認所有可以使用該板的位置。BPPC板出現在Mark VIe渦輪系統內的許多不同的I/O包中，但這個特定的板可能不適用于所有這些位置。手冊還將為您提供有關組件的處理、安裝和維護的詳細信息。

IS210BPPCH1AD Mark VI 印刷電路板

Product description
The IS210BPPCH1AD board is a General Electric I/O packet processor board. This is one of several BPPC boards available in AX controlled inventory, each with minor variations. The boards are designed for use in a variety of I/O packages and fit into GE’s Mark VIe turbine control system. Note that these comments are designed for similar Mark VIeS systems.

Each corner of the IS210BPPCH1AD board is factory drilled. The board is mounted onto a larger circuit board using brackets with screws mounted. The screw is mounted near the circular cut along both sides of the longboard.

The IS210BPPCH1AD is a dual panel that uses SMT technology to allow maximum space utilization. The top of the board includes two Ethernet ports, a small inductor or choke, diodes, resistors, capacitors, transistors, and multiple integrated circuits. It also has several resistor network arrays. The bottom surface is mainly occupied by capacitors, resistors and diodes.

Refer to the GE manual to confirm all the positions where the board can be used. BPPC boards appear in many different I/O packages within Mark VIe turbine systems, but this particular board may not work for all of these locations. The manual will also provide you with detailed information on the handling, installation, and maintenance of the components.
