描述

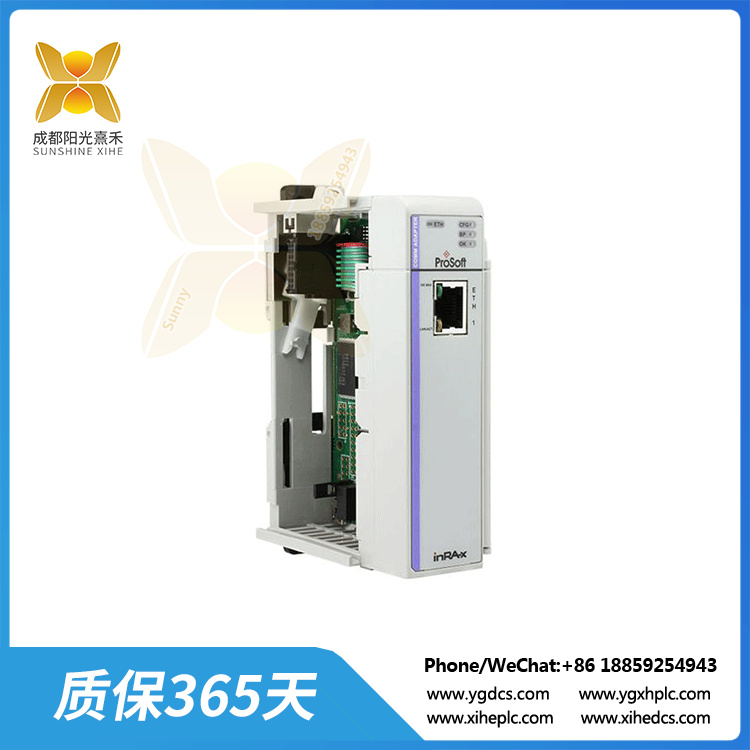

MVI56E-MNET Modbus TCP/IP通信模塊

MVI56E-MNET是由ProSoft Technology發布的一種Modbus TCP/IP通信模塊，專為Rockwell Automation的ControlLogix可編程自動化控制器（PACs）設計。這種模塊的主要功能是簡化使用Modbus TCP/IP協議的設備之間的連接，包括Modicon PAC以及各種儀器和設備。

具體來說，MVI56E-MNET模塊具備多種功能和特性：

1. 兼容性與擴展性：該模塊與現場現有的MVI56 Modbus TCP/IP通信模塊共享梯形邏輯和模塊配置文件，向后兼容，同時它使用小型I/O數據映像來擴展應用程序的I/O，非常適合模塊位于遠程機架中的ControlNet或以太網應用。
2. 多客戶端/服務器支持：MVI56E-MNET模塊支持多達30個MODBUS客戶端和20個MODBUS服務器，并且在主服務器中，支持30個客戶端與多達16個命令的連接，同時支持與多個服務器通信。
3. 數據處理能力：該模塊能夠處理讀取數據和寫入數據，一次可以對40個已注冊的讀取或?qū)懭霐?shù)據塊進行分頁，總共能夠處理600個讀取數據寄存器和600個寫入數據寄存器。
4. 硬件配置與工作環境：MVI56E-MNET模塊占用ControlLogix機箱的單個插槽，功耗為5mA在800 VDC和24mA在3 VDC的可用電源下。其工作溫度范圍為32至140華氏度，存儲溫度范圍為-40至185華氏度，并能承受5%到95%的相對濕度，而不會發生冷凝。
5. 配置與編程：為了配置該模塊，需要使用ProSoft配置生成器（PCB）。此外，如果與附加指令（AOI）一起使用，則需要版本16或更高版本，而與提供的示例梯形圖程序一起使用，則需要版本15或更高版本。

綜上所述，MVI56E-MNET是一種功能強大且靈活的通信模塊，非常適合在需要Modbus TCP/IP通信的工業自動化和控制系統中使用。

MVI56E-MNET Modbus TCP/IP通信模塊

The MVI56E-MNET is a Modbus TCP/IP communication module released by ProSoft Technology and designed for Rockwell Automation’s ControlLogix Programmable Automation Controller (PACs). The main function of this module is to simplify the connection between devices using the Modbus TCP/IP protocol, including Modicon PAC and various instruments and devices.

Specifically, the MVI56E-MNET module has a variety of functions and features:

Compatibility and scalability: The module shares ladder logic and module configuration files with existing MVI56 Modbus TCP/IP communication modules in the field, is backward compatible, and it uses small I/O data images to extend the I/O of applications, making it ideal for ControlNet or Ethernet applications where the module is located in a remote rack.

Multi-client/Server support: The MVI56E-MNET module supports up to 30 MODBUS clients and 20 MODBUS servers, and in the main server, supports the connection of 30 clients with up to 16 commands, while supporting communication with multiple servers.

Data processing capability: The module can handle read and write data, and can page 40 registered read or write data blocks at a time, and can handle a total of 600 read data registers and 600 write data registers.

Hardware configuration and working environment: The MVI56E-MNET module occupies a single slot in the ControlLogix chassis and consumes 5mA at 800 VDC and 24mA at 3 VDC of available power. It operates in a temperature range of 32 to 140 degrees Fahrenheit, has a storage temperature range of -40 to 185 degrees Fahrenheit, and can withstand 5 to 95 percent relative humidity without condensation.

Configuration and Programming: In order to configure this module, you need to use the ProSoft Configuration Generator (PCB). In addition, version 16 or higher is required if used with Additional Instructions (AOI), and version 15 or higher is required when used with the provided example ladder diagram program.

In summary, the MVI56E-MNET is a powerful and flexible communication module that is ideal for use in industrial automation and control systems that require Modbus TCP/IP communication.
