描述

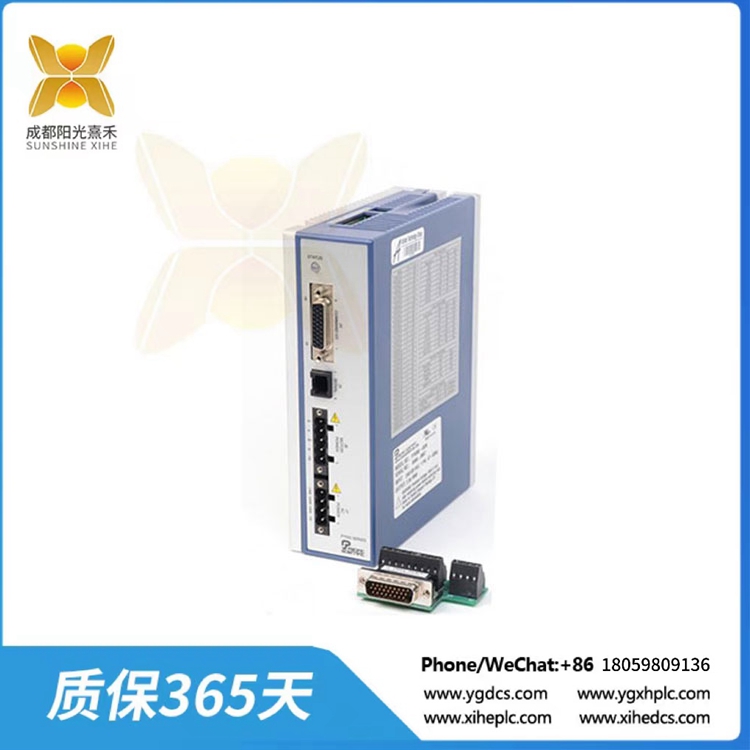

P70360-SDN 高性能微步進驅動器

特點:
RS232遠程接口
電流減少模式與可編程時間和減少量
多達9個可配置的輸入在24伏或5伏兼容性
標準電機驅動組合很容易通過撥碼開關設置配置
太平洋科學/丹納赫運動P70360交流步進驅動器是一個封裝驅動器，包括一個集成電源。P70360交流步進驅動器是緊湊的，但負載功率。該驅動器旨在為任何2相NEMA 23-42框架電機提供動力。無論是使用太平洋科學品牌還是其他品牌，它都可以配置為從電機中獲得最佳功率。驅動器可以使用板載選擇開關或通過軟件實用程序P7000Tools進行設置。電流設置，自動平滑，電機波形整形，中頻抗諧振和電流減小都可以通過開關設置來選擇。P7000Tools包括一個圖形用戶界面(GUI)，允許設置自定義繞組或第三方電機。

P70360提供兩種標準版本。P70360-SDN采用傳統的步進和方向接口。專用輸入可用于Jog+/-，使能和步進/方向控制。用戶提供脈沖序列來旋轉電機。P70360-PNN為基礎驅動器增加了運動節點索引功能。這允許用戶編程多達63個獨立的動作。這些移動可以通過輸入設置或通過串行端口執行。P70360-PNN支持ModBus RTU協議。

P70360-SDN 高性能微步進驅動器

Features:
RS232 Remote Interface
Current Reduction Modes with Programmable Time and Reduction Amount
Up to 9 Configurable Inputs at 24 or 5 Volt Compatibility
Standard Motor-Drive Combinations are Easily Configured via the DIP Switch Settings
The Pacific Scientific / Danaher Motion P70360 AC stepper drive is a packaged drive including an integral power supply The P70360 AC step drive is compact yet loaded with power. The drive is designed to power any 2-phase NEMA 23-42 frame motor. Whether using a Pacific Scientific brand or other it can be configured to get the optimum power out of the motor. The drive can be set up using on-board selector switches or via the software utility, P7000Tools. Current settings, Auto-Smoothing, Motor Wave Shaping, Mid-Band Ant-Resonance and current reduction are all selected through the switch settings. P7000Tools includes a Graphical User Interface (GUI) to allow set-up for custom windings or third party motors.

The P70360 is offered in two standard versions. The P70360-SDN is designed with a conventional step and direction interface. Dedicated inputs are available for Jog+/-, enable and Step/Direction control. The user provides the pulse train to rotate the motor. The P70360-PNN adds a motion node indexing capability to the base drive. This allows the user to program up to 63 independent moves. These moves can be executed through input settings or through the serial port. The P70360-PNN supports ModBus RTU protocol.
