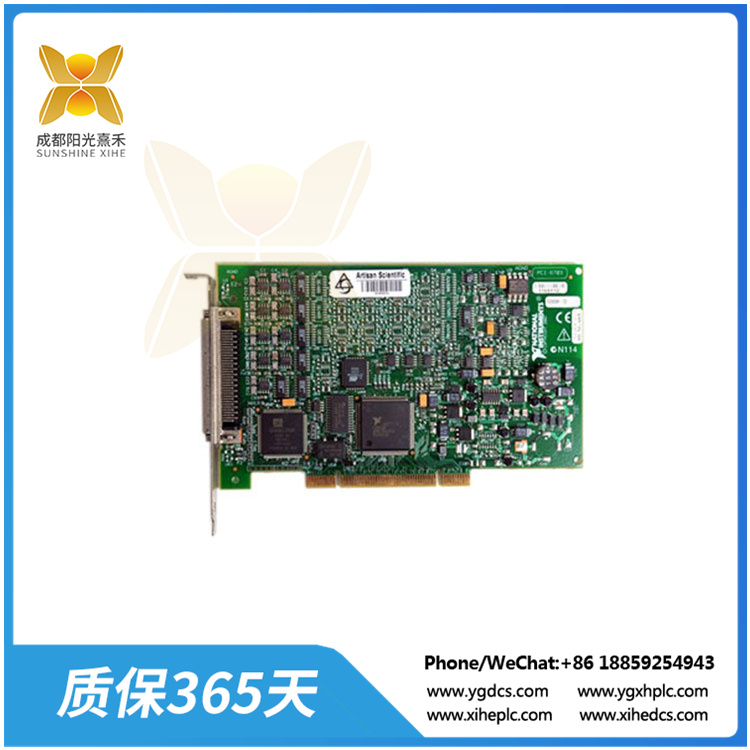

PCI-6703 模擬輸出設備
16位,通道,靜態模擬輸出設備pci – 6703是一款靜態模擬輸出設備,可用于軟件定時的電壓輸出應用。
PCI – 6703(部件號:778316-01)是一種靜態16電壓輸出通道模擬輸出器件，具有16位分辨率，可用于軟件定時電壓輸出應用。用戶可以在輸出通道將浮動或接地負載連接到NI PCI-6703設備。它不需要一個外部浮動電源來完成控制電流回路。用戶可以控制電流回路從0.1到20.2 mA。本回路一致性為0v ~ 10vdc。由于每個通道與電壓通道共用一條地線，因此限制來自電流通道的到達電流對電壓通道上產生的電壓的影響。例如，如果用戶在通道上產生20 mA，并將該通道恢復到NI PCI-6703，在阻抗為0.1 Ω的鏈路中，在共享地線的電壓通道上輸出電壓將下降2 mV。
該模擬輸出設備具有自定義上電狀態，±10v范圍，8個數字I/O線，直流輸出耦合和獨立的，自定義的上電狀態值。PCI-6703可以鏈接到許多信號類型，如led，電壓和電流激勵精密換能器，機電繼電器，光隔離，固態繼電器和I/O模塊安裝架。該設備可與NI- daq 7.4或更高版本一起使用，以及無NI應用軟件的。net語言，LabVIEW for Windows，無NI應用軟件的ANSI C, Measurement Studio和LabWindows/CVI for Windows。它配備了一個68針的公I/O連接器。
用戶應注意不要超過模擬輸出設備上輸出或輸入信號的最大額定值，因為這可能對計算機或設備造成損害。NI器件的尺寸為3.9 x 6.9英寸。在物理維度上。推薦使用溫度范圍為0 ~ 55℃，存儲溫度范圍為-20 ~ 70℃。
PCI-6703 模擬輸出設備
16-bit, channel, Static analog Output device The pci-6703 is a static analog output device for voltage output applications with software timing.
PCI-6703 (Part number :778316-01) is a static 16-voltage output channel analog output device with 16-bit resolution for software timing voltage output applications. Users can connect floating or grounded loads to NI PCI-6703 devices in the output channel. It does not require an external floating power supply to complete the control current loop. The user can control the current loop from 0.1 to 20.2 mA. The loop consistency ranges from 0v to 10vdc. Since each channel shares a ground wire with the voltage channel, the effect of the arrival current from the current channel on the voltage generated on the voltage channel is limited. For example, if a user generates 20 mA on a channel and restores that channel to NI PCI-6703, in a link with an impedance of 0.1Ω, the output voltage will drop by 2 mV on the voltage channel shared with the ground.
The analog output device features custom power-on status, ±10v range, 8 digital I/O lines, DC output coupling and independent, custom power-on status values. The PCI-6703 can be linked to many signal types such as leds, voltage and current excited precision transducers, electromechanical relays, optical isolators, solid state relays and I/O module mounts. The device can be used with NI-DAQ 7.4 or later, as well as without NI application software. net language, LabVIEW for Windows, ANSI C without NI application software, Measurement Studio and LabWindows/CVI for Windows. It comes with a 68-pin male I/O connector.
Users should be careful not to exceed the maximum rating of the output or input signal on the analog output device, as this may cause damage to the computer or device. The NI device is 3.9 x 6.9 inches in size. In the physical dimension. The recommended temperature ranges from 0 to 55 ° C, and the storage temperature ranges from -20 to 70 ° C.
