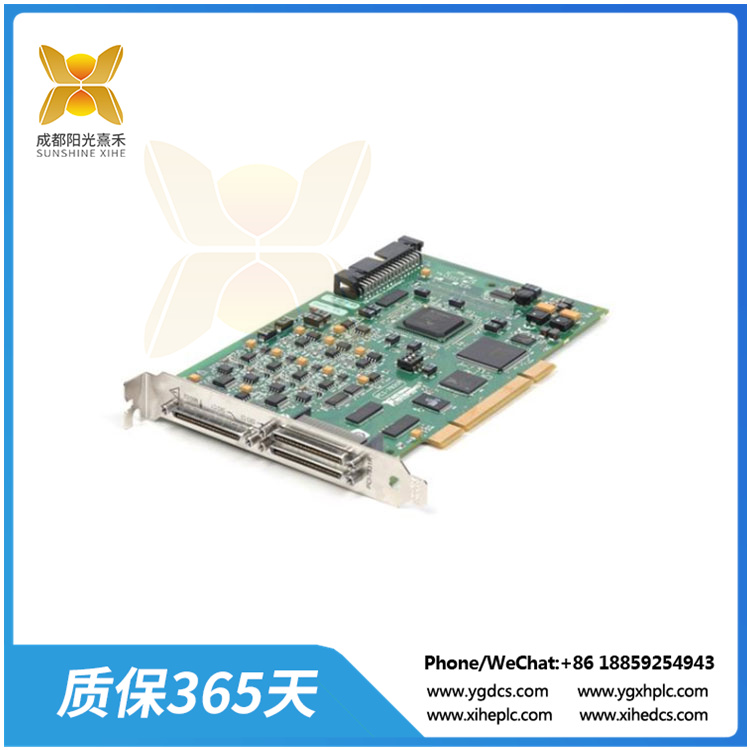

PCI-7831R 多功能可重配置I/O設備
Virtex-II 1百萬門級FPGA多功能可重配置I / O設備pci – 7831具有用戶可編程的FPGA,可進行高性能板載處理以及直接控制I / O信號,以確保系統定時和同步具有高度的靈活性。您可以使用虛擬儀器FPGA模塊自定義這些設備,開發需要精確定時和控制的應用,例如硬件在環測試,自定義協議通信,傳感器仿真和高速控制。
美國國家儀器公司的PCI-7831R具有8個模擬輸入/輸出，是R系列中的可重構I/O設備。該型號配備了功能強大的Virtex-II 1M Gate類FPGA。此外，該型號有96條數字線。使用該設備，用戶可以將任何數字I/O線配置為自定義邏輯、輸入/輸出或計數器。PCI-7831R配備了8個獨立的16位模擬輸入通道，數據傳輸速率為200ks /秒;8個獨立的16位模擬輸出通道，數據傳輸速率為每秒1毫秒。
設備采用NI-RIO驅動軟件，兼容LabVIEW、LabVIEW FPGA模塊、LabVIEW實時模塊等軟件包/應用開發環境。該模型中包含的FPGA完全可以用美國國家儀器公司的LabVIEW FPGA模塊進行編程，不需要專業人員的干預。NI PCI-7831R還提供低成本的信號調理和I/O擴展，可直接連接到NI 9151設備。
這種可重構I/O設備提供了對所有操作和信號的定時和同步的完全控制。集成在該設備中的數字線路不僅可以用于一般操作，還可以用于脈寬調制和處理專門的通信協議。NI PCI 7831R可以與任何基于Windows的個人計算機一起使用，因為它與Windows XP, Windows 7和其他幾種Windows操作系統兼容。該器件配備了40個18 × 18乘法器和一個720 kb的嵌入式塊RAM。它有兩個DIO連接器和一個68針母高密度VHDCI I/O連接器。
PCI-7831R 多功能可重配置I/O設備
The Virtex-II 1 million Gate FPGA Multi-function reconfigurable I/O device The pci-7831 features a user-programmable FPGA for high-performance on-board processing and direct control of I/O signals to ensure a high degree of flexibility in system timing and synchronization. You can customize these devices using virtual instrument FPGA modules to develop applications that require precise timing and control, such as hardware-in-the-loop testing, custom protocol communication, sensor simulation, and high-speed control.
With eight analog inputs/outputs, National Instruments’ PCI-7831R is a reconfigurable I/O device in the R series. This model is equipped with a powerful Virtex-II 1M Gate class FPGA. In addition, the model has 96 digital lines. With this device, users can configure any digital I/O line for custom logic, input/output, or counters. The PCI-7831R is equipped with eight independent 16-bit analog input channels with a data transfer rate of 200ks/s. Eight independent 16-bit analog output channels with a data transfer rate of 1 millisecond per second.
The device uses NI-RIO driver software, compatible with LabVIEW, LabVIEW FPGA module, LabVIEW real-time module and other software packages/application development environment. The FPgas included in the model can be fully programmed with National Instruments’ LabVIEW FPGA module without the intervention of a professional. The NI PCI-7831R also offers low-cost signal conditioning and I/O expansion for direct connection to NI 9151 devices.
This reconfigurable I/O device provides complete control over the timing and synchronization of all operations and signals. The digital lines integrated in this device can be used not only for general operation, but also for pulse width modulation and handling specialized communication protocols. The NI PCI 7831R can be used with any Windows-based personal computer because it is compatible with Windows XP, Windows 7, and several other Windows operating systems. The device is equipped with 40 18 × 18 multipliers and a 720 kb embedded block RAM. It has two DIO connectors and a 68-pin female high-density VHDCI I/O connector.
