PXIE-4143 4通道，精密PXI源測量單元

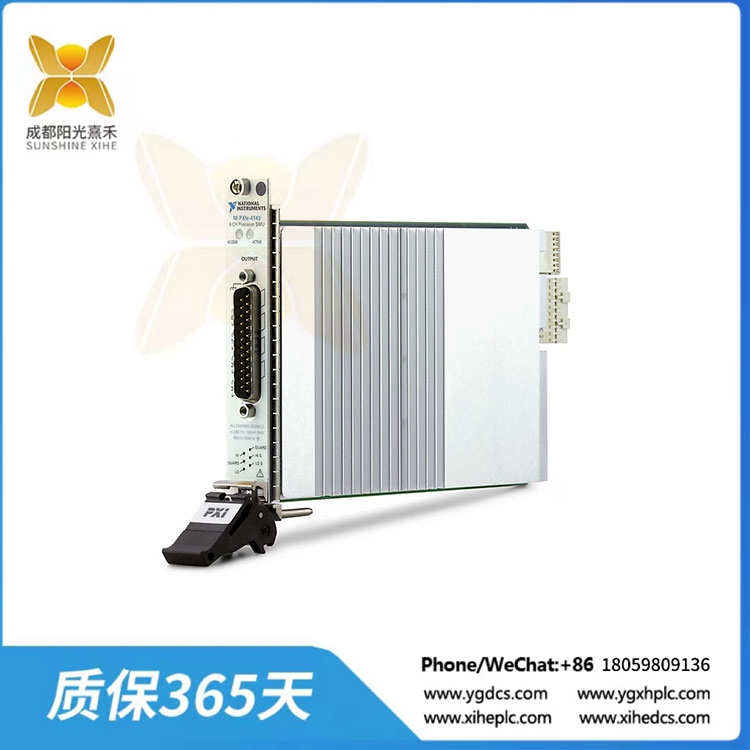

美國國家儀器PXIe-4143 PXI源測量單元

PXIe-4143(部件號:782431-01)源測量單元(SMU)包含一個實用通道，可以提供16位設定值和估計分辨率的電流或電壓。用戶可以利用這個輸出，它給出了高達6v和1a，作為一個補充電源到SMU通道。應用，如晶體管的特性，需要一個穩定的電流或電壓，同時掃描另一個電流或電壓，可以顯著受益于降低復雜性，空間和成本的模塊提供。對于并行測試應用，用戶可以在單個PXI框架中使用17個NI PXIe-4143模塊，在19英寸和4U的空間中使用17個SMU通道和17個可編程電源通道。

該P(yáng)XIe 4143 SMU的兩個通道可以作為恒定電壓源或穩定電流源，對任何模式都具有可移動的一致性限制。此外，用戶還可以在SMU通道上賦予遙感功能，以提高被測設備輸出/電壓估計的準確性，以實現高精度應用。

PXIe-4143 SMU的估計策略通常是基于將電流運動添加到雙極電路的標準中，然后再添加到電壓響應估計中。如果被測器件(DUT)具有低電阻，則使用此策略;當被測件內阻較高時，進行電壓運動相加，然后估計電流反應。

PXIE-4143 4通道，精密PXI源測量單元

National Instruments PXIe-4143 PXI Source Measure Unit

The PXIe-4143 (Part Number: 782431-01) Source Measure Unit (SMU) incorporates a utility channel that can supply current or voltage with a 16-bit setpoint and an estimation resolution. The user can utilize this output, which gives up to 6 V and 1 A, as a complementary power supply to the SMU channel. Applications such as the characterization of transistors that require a steady current or voltage while sweeping another current or voltage can significantly profit by the lessened complexity, space, and cost offered by this module. For parallel test applications, the user can utilize 17 NI PXIe-4143 modules in a single PXI frame for 17 SMU channels and 17 programmable power supply channels in a 19-inch and 4U space.

The two channels of this PXIe 4143 SMU can act as a constant voltage source or as a steady current source, with a movable consistence restrict for any of the modes. Also, the user can empower remote sensing on the SMU channel to augment the exactness of output/voltage estimation on the gadget under test for high accuracy applications.

The PXIe-4143 SMU has estimation strategies that are generally based on the addition of current motions into the standard of the bipolar circuit and afterward into the voltage response estimation. This strategy is utilized if the device under test (DUT) has a low resistance; in case of high internal resistance of DUT, the addition of voltage motions is performed and after that the current reaction is estimated.
