描述

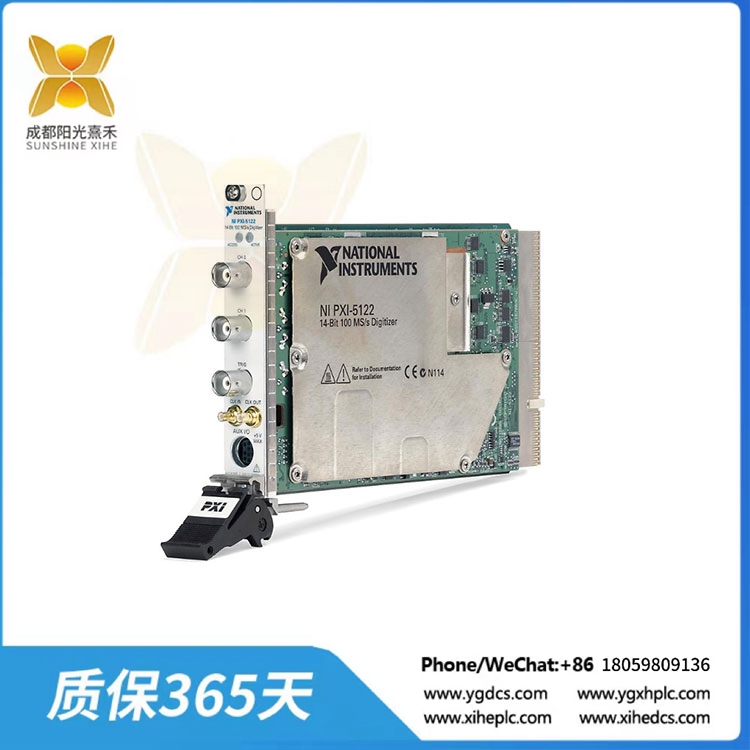

PXlE-5122 100 MHz、2 通道、PXI 示波器

美國國家儀器公司PXIe-5122高速數字化儀

美國國家儀器公司的PXIe-5122(部件編號:779967-01,779967-02和779967-03)高速數字化儀，基于SMC工程，伴隨著快速存儲器選擇從8到512 MB的每個通道(4至2.56億14位測試每通道)。NI PXIe-5122在無需軟件干預的情況下，在多記錄采集模式下采集超過100萬個觸發波形，用于雷達、超聲波和事件識別等需要短觸發重新啟動時間的應用。此外，用戶可以在單次拍攝和各種記錄獲取模式下以100 ps的分辨率為每個觸發事件添加時間戳。PXIe-5122還可以從已安裝的內存持久地傳輸信息，以便有更長的獲取內存和流到磁盤。

每臺美國國家儀器公司的數字化儀都配有符合NI- scope標準的NI- scope驅動程序，該驅動程序完全兼容NI LabVIEW、LabWindows/CVI和Measurement Studio for Visual Studio 6.0和。net。NI-SCOPE集成了50多個內置估計和檢查能力，以及直觀的SCOPE軟前面板。

高分辨率NI PXI-5122示波器/數字化儀適用于汽車，通信，科學研究，軍事/航空和消費電子領域的各種用途。

這個示波器配備了這些功能:

?100- mhz, 100 Msamples/sec, 14位數字化儀在PXI格式

?兩個通道一直在14位分辨率下測試

?100 Msamples/sec實時和2.0 Gsamples/sec隨機交錯采樣

?100mhz傳輸容量

?50歐姆或1歐姆輸入阻抗，編程可選

?200mV到20V信息

?75 dBc SFDR和62 dB SINAD

?8、32或256兆字節的內存為每個通道

?邊緣，窗口，滯后，視頻和高級觸發100 ps時間戳

?兼容的工作框架:Windows 2000/XP

?包括NI-SCOPE驅動程序編程

PXlE-5122 100 MHz、2 通道、PXI 示波器

National Instruments PXIe-5122 High-Speed Digitizer

The National Instruments PXIe-5122 (Part Numbers: 779967-01, 779967-02, and 779967-03) High-Speed Digitizer, based on the the SMC engineering, accompanies fast memory choices from 8 to 512 MB for each channel (4 to 256 million 14-bit tests per channel). The NI PXIe-5122 acquires more than 1 million triggered waveforms without software intervention in multiple-record acquisition mode for applications, such as RADAR, ultrasound, and event recognition, which require short trigger rearm times. Additionally, the user can timestamp each triggered event with 100 ps resolution in both single-shot and various record acquisition modes. The PXIe-5122 can also stream information persistently from installed memory to have memory for longer acquisitions and streaming to disk.

Each National Instruments Digitizer accompanies the IVI-compliant NI-SCOPE driver, which is completely compatible with NI LabVIEW, LabWindows/CVI, and Measurement Studio for Visual Studio 6.0 and.NET. NI-SCOPE incorporates more than 50 built-in estimation and examination capacities, along with an intuitive SCOPE Soft Front Panel.

The high-resolution?NI PXI-5122?Oscilloscope/Digitizer is suited for a wide assortment of uses in automotive, communications, scientific research, military/aviation, and consumer electronics.

This Oscilloscope comes equipped with these features:

??????????? A 100-MHz, 100 Msamples/sec, 14-bit digitizer in PXI format

??????????? Two channels all the while tested at 14-bit resolution

??????????? 100 Msamples/sec real-time and 2.0 Gsamples/sec random interleaved sampling

??????????? 100 MHz transmission capacity

??????????? 50 ohm or 1 Mohm input impedance, programming selectable

??????????? 200mV to 20V info go

??????????? 75 dBc SFDR and 62 dB SINAD

??????????? 8, 32, or 256 Mbytes of memory for each channel

??????????? Edge, window, hysteresis, video, and advanced triggering with 100 ps timestamping

??????????? Compatible working frameworks: Windows 2000/XP

??????????? Includes NI-SCOPE driver programming
