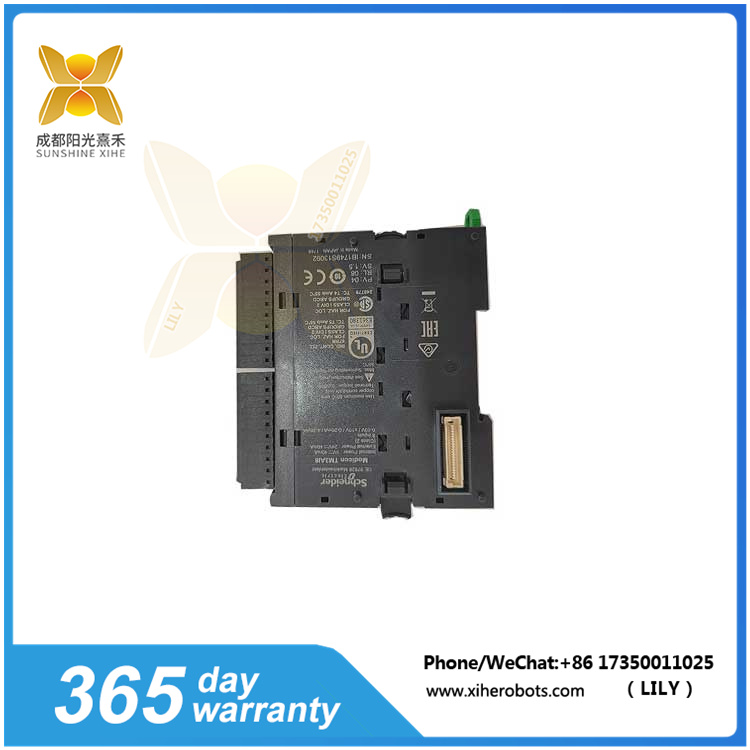

TM3AQ4 Schneider 4路模擬量輸出模塊 成都陽光熹禾

TM3AQ4 Schneider 4路模擬量輸出模塊 成都陽光熹禾

  • 輸出通道：模塊提供 4 個獨立的 12 位模擬輸出通道，可以輸出電壓或電流信號?。
  • 信號類型：支持的信號類型包括 0 至 10 Vdc 和 -10 至 +10 Vdc 的電壓信號，以及 0 至 20 mA 和 4 至 20 mA 的電流信號?。
  • 電源規格：模塊的額定電源為 24 Vdc，電源電壓范圍是 20.4 Vdc 至 28.8 Vdc?。
  • 連接類型：TM3AQ4 提供可插拔螺釘端子塊，而其變體 TM3AQ4G 提供可插拔卡簧端子塊，以適應不同的安裝需求?。
分類：

描述

產品細節說明：TM3AQ4 Schneider 4路模擬量輸出模塊

  • 電纜類型和長度：推薦使用屏蔽雙絞線，最大長度可達 30 米（98 英尺）。
  • 環保和健康安全：產品符合 RoHS/REACH 標準，不含有毒重金屬如汞和 PVC，帶有 Green Premium? 標簽，致力于提供環保性能優越的產品?。
  • 應用領域：適用于 Modicon M221、M241、M251 和 M262 邏輯控制器，是 MachineStruxure 輸入/輸出系統的一部分，提供直觀的機械自動化解決方案?。
  • 設計特點：透明、環保的產品設計，支持遠程定位（長達 5 米）和總線擴展系統，提供靈活的解決方案?。
  • 狀態 LED 指示：模塊上有 PWR 綠色 LED 指示燈，亮起表示已接通 TM3 總線電源，熄滅表示已斷開 TM3 總線電源?。

TM3AQ4

產品詳情參數 ：TM3AQ4 Schneider 4路模擬量輸出模塊

  • 輸出通道：模塊提供 4 個獨立的 12 位模擬輸出通道，可以輸出電壓或電流信號?。
  • 信號類型：支持的信號類型包括 0 至 10 Vdc 和 -10 至 +10 Vdc 的電壓信號，以及 0 至 20 mA 和 4 至 20 mA 的電流信號?。
  • 電源規格：模塊的額定電源為 24 Vdc，電源電壓范圍是 20.4 Vdc 至 28.8 Vdc?。
  • 連接類型：TM3AQ4 提供可插拔螺釘端子塊，而其變體 TM3AQ4G 提供可插拔卡簧端子塊，以適應不同的安裝需求?。

TM3AQ4 Schneider 應用領域：

TM3AQ4 模塊的連接器插入和拔出至少可耐受 100 次，5 Vdc 內部總線上的最大電流在無負載時為 40 mA，滿負載時為 60 mA；24 Vdc 內部總線上的最大電流為 0 mA；外部 24 Vdc 時的最大電流在無負載時為 50 mA，滿負載時為 125 mA 。適用于 Modicon M221、M241、M251 和 M262 邏輯控制器，是 MachineStruxure 輸入/輸出系統的一部分，提供直觀的機械自動化解決方案

Product details: TM3AQ4 Schneider 4-channel analog output module
Cable type and length: It is recommended to use shielded twisted pair cables, with a maximum length of up to 30 meters (98 feet).
Environmental Protection and Health Safety: The product complies with RoHS/REACH standards, does not contain toxic heavy metals such as mercury and PVC, and comes with Green Premium ? Labels are committed to providing products with superior environmental performance.
Application areas: Suitable for Modicon M221, M241, M251, and M262 logic controllers, it is part of the MechaniStruxure input/output system and provides intuitive mechanical automation solutions.
Design features: Transparent and environmentally friendly product design, supporting remote positioning (up to 5 meters) and bus expansion system, providing flexible solutions.
Status LED indicator: There is a PWR green LED indicator on the module, which lights up to indicate that the TM3 bus power has been connected, and goes out to indicate that the TM3 bus power has been disconnected.
Product details and parameters: TM3AQ4 Schneider 4-channel analog output module
Output channel: The module provides 4 independent 12 bit analog output channels, which can output voltage or current signals.
Signal types: The supported signal types include voltage signals from 0 to 10 Vdc and -10 to+10 Vdc, as well as current signals from 0 to 20 mA and 4 to 20 mA.
Power specifications: The rated power supply of the module is 24 Vdc, and the power supply voltage range is 20.4 Vdc to 28.8 Vdc.
Connection type: TM3AQ4 provides pluggable screw terminal blocks, while its variant TM3AQ4G provides pluggable card spring terminal blocks to meet different installation requirements.
TM3AQ4 Schneider Application Fields:

The connector insertion and extraction of the TM3AQ4 module can withstand at least 100 times, and the maximum current on the 5 Vdc internal bus is 40 mA under no load and 60 mA under full load; The maximum current on the 24 Vdc internal bus is 0 mA; The maximum current at external 24 Vdc is 50 mA when unloaded and 125 mA when fully loaded. Suitable for Modicon M221, M241, M251, and M262 logic controllers, it is part of the MechaniStruxure input/output system and provides an intuitive mechanical automation solution
