描述

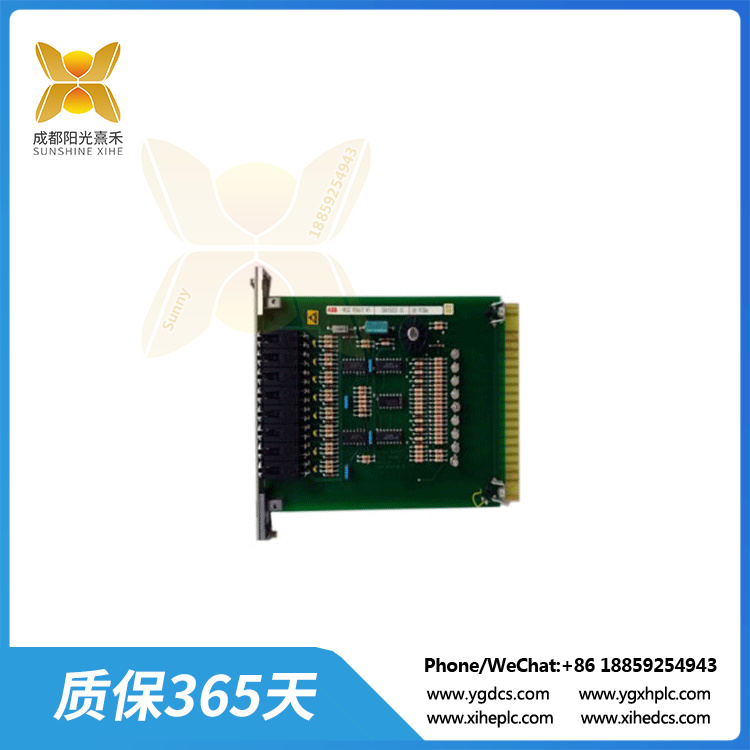

XV9738A-HEIE450617R1 可編程控制卡

XV9738A-HEIE450617R1?是一款可編程控制卡，具體屬于運動控制卡范疇。這種控制卡主要基于PC機或工業PC機使用，并廣泛適用于各種運動控制場合，如需要精確控制位移、速度、加速度等的應用場景。

該控制卡是基于PC總線設計的，它利用高性能微處理器（如DSP）及大規?？删幊唐骷瑢崿F(xiàn)多個伺服電機的多軸協調控制。其功能包括脈沖輸出、脈沖計數、數字輸入、數字輸出以及D/A輸出等。通過發出連續的、高頻率的脈沖串，它可以控制電機的速度，而改變發出脈沖的數量則可以精確控制電機的位置。

脈沖計數功能特別用于編碼器的位置反饋，從而提供機器準確的位置信息，并糾正傳動過程中可能產生的誤差。數字輸入輸出點則用于實現限位、原點開關等功能，增強了系統的安全性和可靠性。

此外，這款控制卡還配備了豐富的庫函數，如S型、T型加速，直線插補和圓弧插補，以及多軸聯動函數等，這些功能極大地提升了其在復雜運動控制任務中的表現。

總的來說，XV9738A-HEIE450617R1可編程控制卡憑借其強大的功能和靈活性，在工業自動化、機器人技術、數控機床以及其他需要高精度運動控制的領域中有著廣泛的應用。

XV9738A-HEIE450617R1 可編程控制卡

XV9738A-HEIE450617R1 is a programmable control card, which belongs to the category of motion control card. This control card is mainly based on PC or industrial PC, and is widely used in a variety of motion control occasions, such as the need for accurate control of displacement, speed, acceleration and other application scenarios.

The control card is designed based on PC bus, which uses high-performance microprocessor (such as DSP) and large-scale programmable devices to realize multi-axis coordinated control of multiple servo motors. Its functions include pulse output, pulse counting, digital input, digital output and D/A output. By sending out a continuous, high-frequency pulse train, it can control the speed of the motor, and changing the number of pulses emitted can precisely control the position of the motor.

The pulse counting function is especially used for position feedback of the encoder, thus providing accurate position information of the machine and correcting errors that may occur during transmission. The digital input and output points are used to realize the functions of limit and origin switch, which enhances the safety and reliability of the system.

In addition, the control card is also equipped with a wealth of library functions, such as S-type, T-type acceleration, linear and circular interpolation, and multi-axis linkage functions, which greatly improve its performance in complex motion control tasks.

Overall, the XV9738A-HEIE450617R1 programmable control card, with its powerful functions and flexibility, has a wide range of applications in industrial automation, robotics, CNC machine tools and other fields requiring high-precision motion control.
